Pfaff 3519-5/01 - Aligning the Workholder Bar; Zero Point of the Workholder Bar

Adjustment
103
13.17 Aligning the workholder bar
13
.17.01 Zero point of the workholder bar
Rule
1. A gap of 5 mm should be maintained between the front edge of the workholder bar
and the needle midpoint.
2. A gap of approx. 0.5 mm should be maintained between the rear edge of the
workholder bar and the front edge of the presser foot.
 Adjust the angle bracket 1 (screws 2) according to rule 1.
 Position the screw 3 (nut 4) with a clearance of 1 mm to the stop.
 Adjust the presser foot 5 (screws 6) according to rule 2 making sure that the needle
punctures in the centre of the cutout.

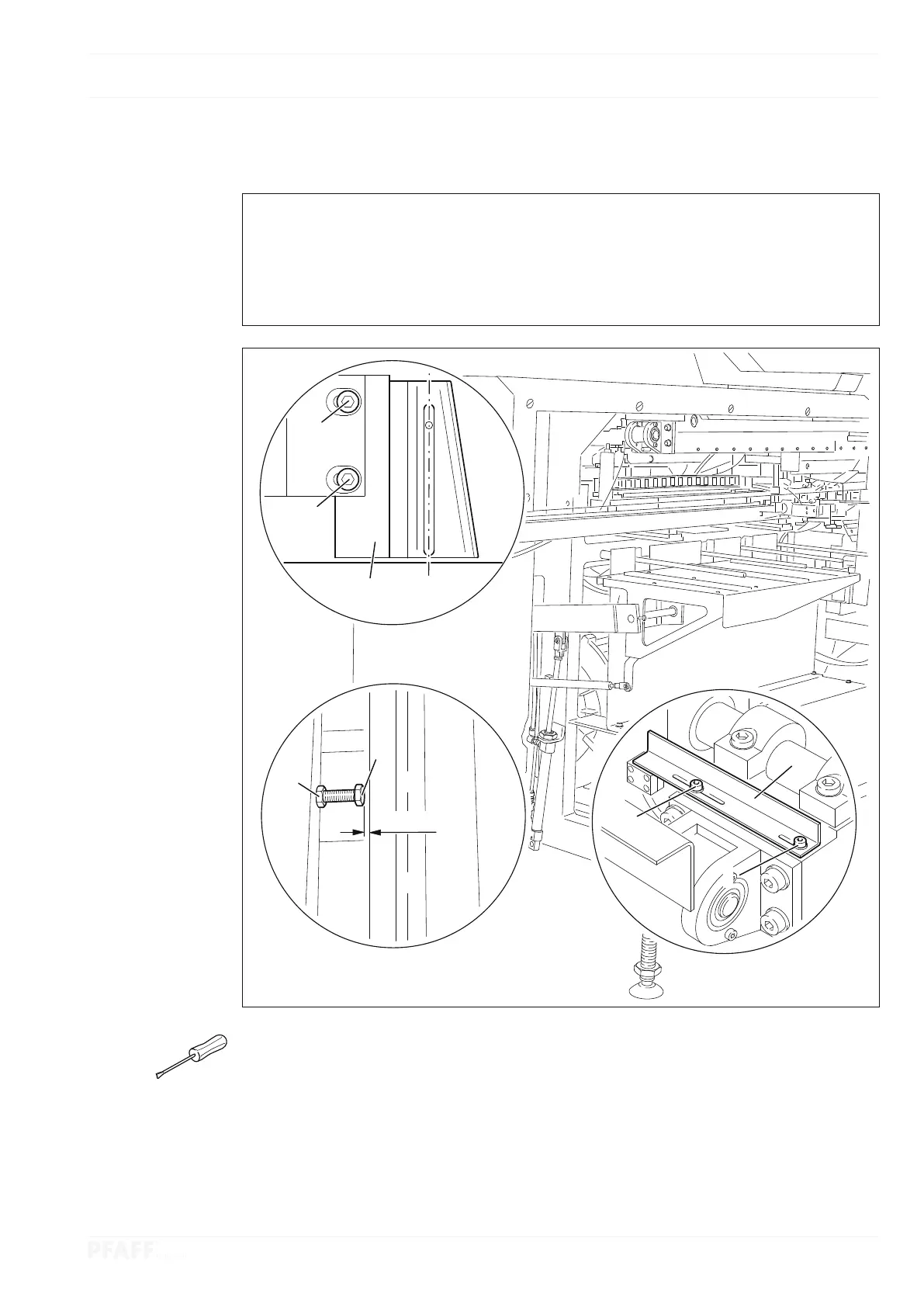

Fig. 13 - 36
5
6
6
min. 1 mm
3
4
2
1
2
