Adjustment
67
13.04 Sewing head service position
The sewing head can be pulled out of the machine stand for maintenance and
adjustment work.
Switch off the machine!
Risk of injury due to accidental machine start-up!
Move the sewing head into home position.
Open the cover 1 and the tensioning lever on the loading clamp.
Loosen the screws 2 and push the loading clamp in the direction of the arrow until it
stops.
Raise the frame 3 and hook in the support 4.
Open the tensioning lever 5.
Pull the sewing back until it stops and tilt if necessary.
Tilt the sewing head with both hands!
Risk of crushing between the sewing head and the machine stand!

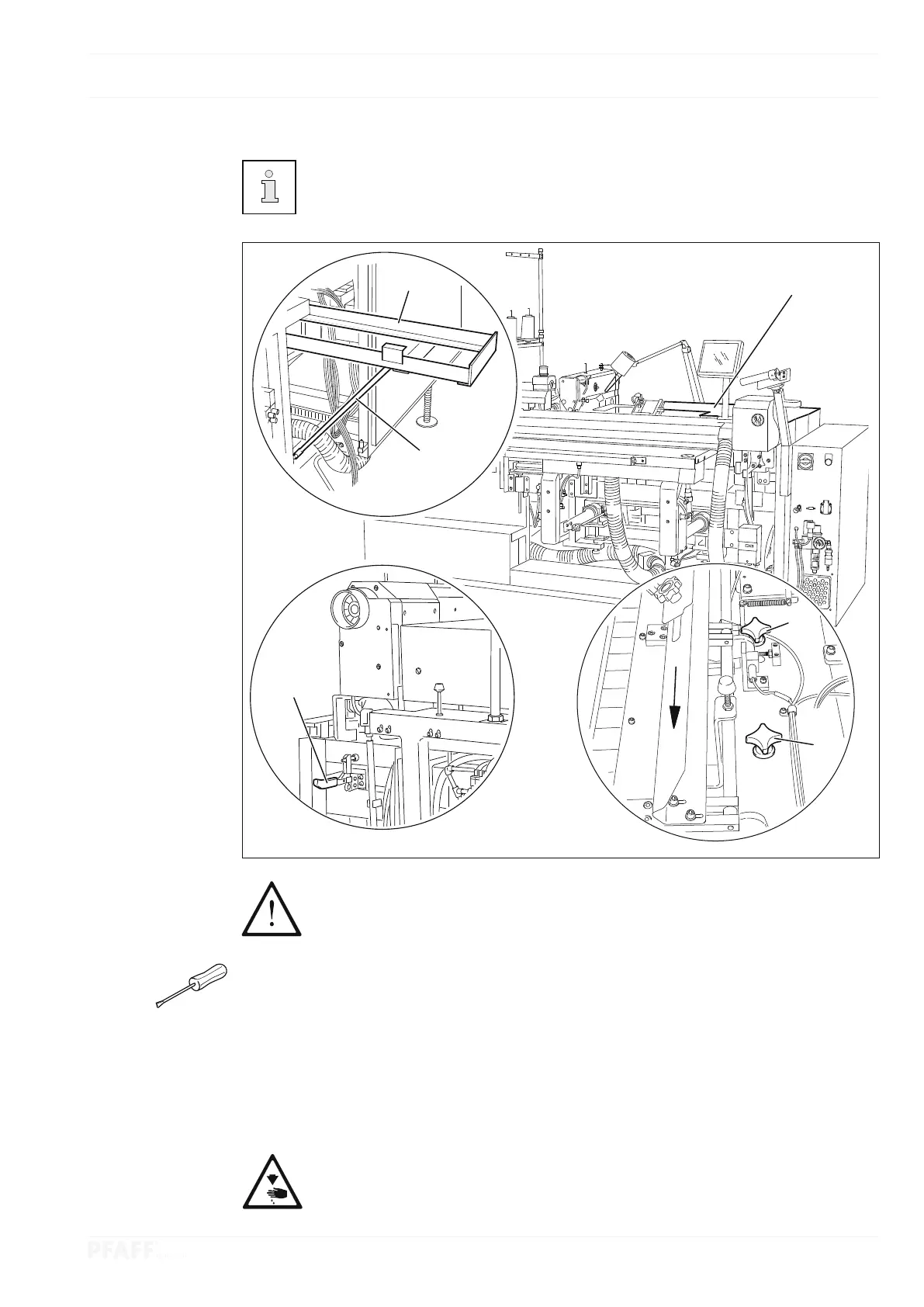

Fig. 13 - 01
1
3
4
5
2
2
