Adjustment
76
13.05.08 Bobbin winder
Rule
1. When the bobbin winder is switched on, the drive wheel 1 should be moved easily.
2. When the bobbin winder is switched off, the friction wheel 5 must not touch the drive
wheel 1.
3. The bobbin winder should switch off automatically if the fill amount of the bobbin is
approx. 1 mm away from the edge of the bobbin.
Adjust the drive wheel 1 (screws 2) according to rules 1 and 2.
Adjust the bolt 3 (screw 4) according to rule 3.
1
2
5

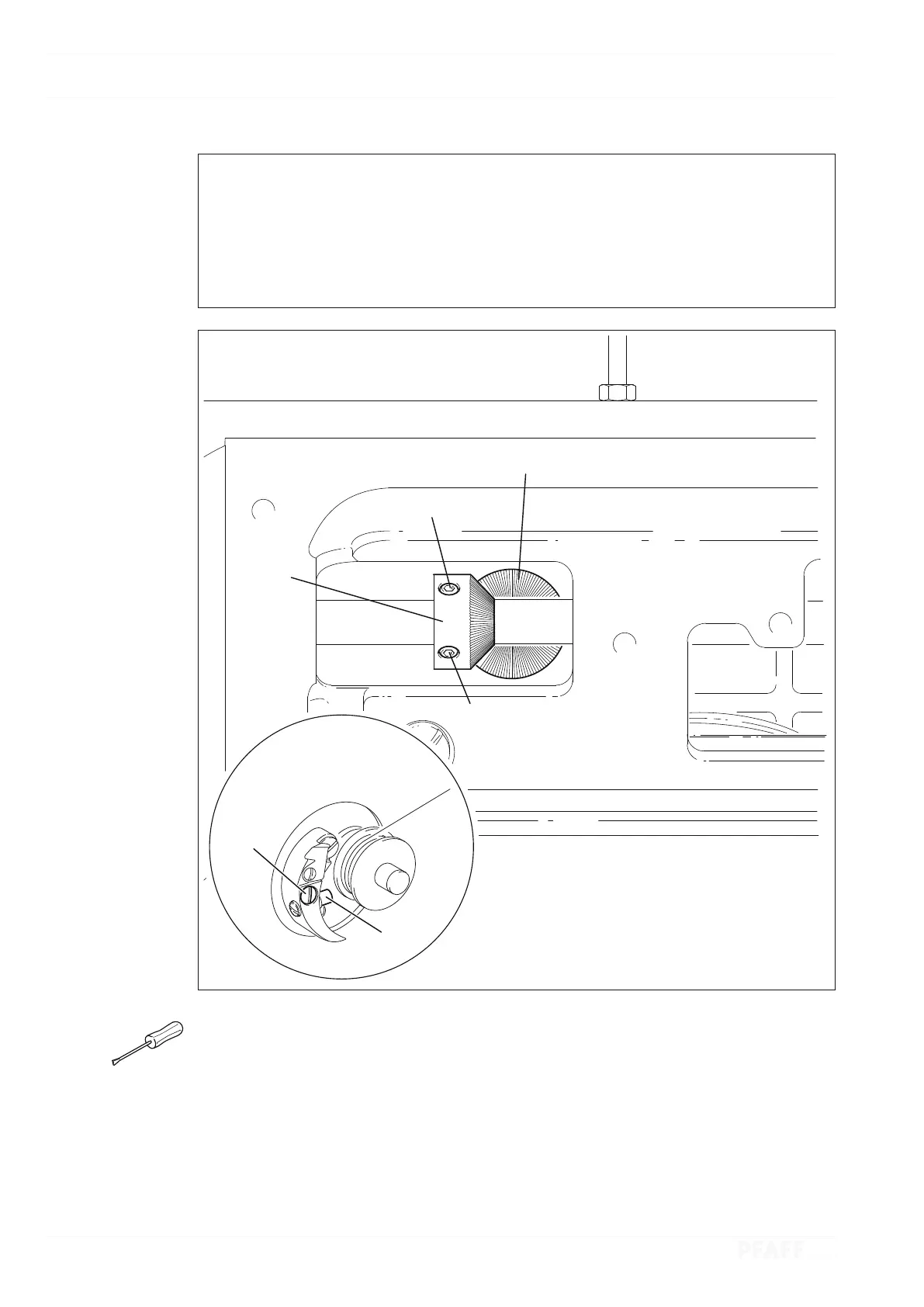

Fig. 13 - 09
2
3
4
