Pfaff 3519-5/01 - Control; Home Position; Diagnostics; Pin Assignment; Power Supply A30

119
Control
14 Control
14
.01 Home position / diagnostics / pin assignment
14

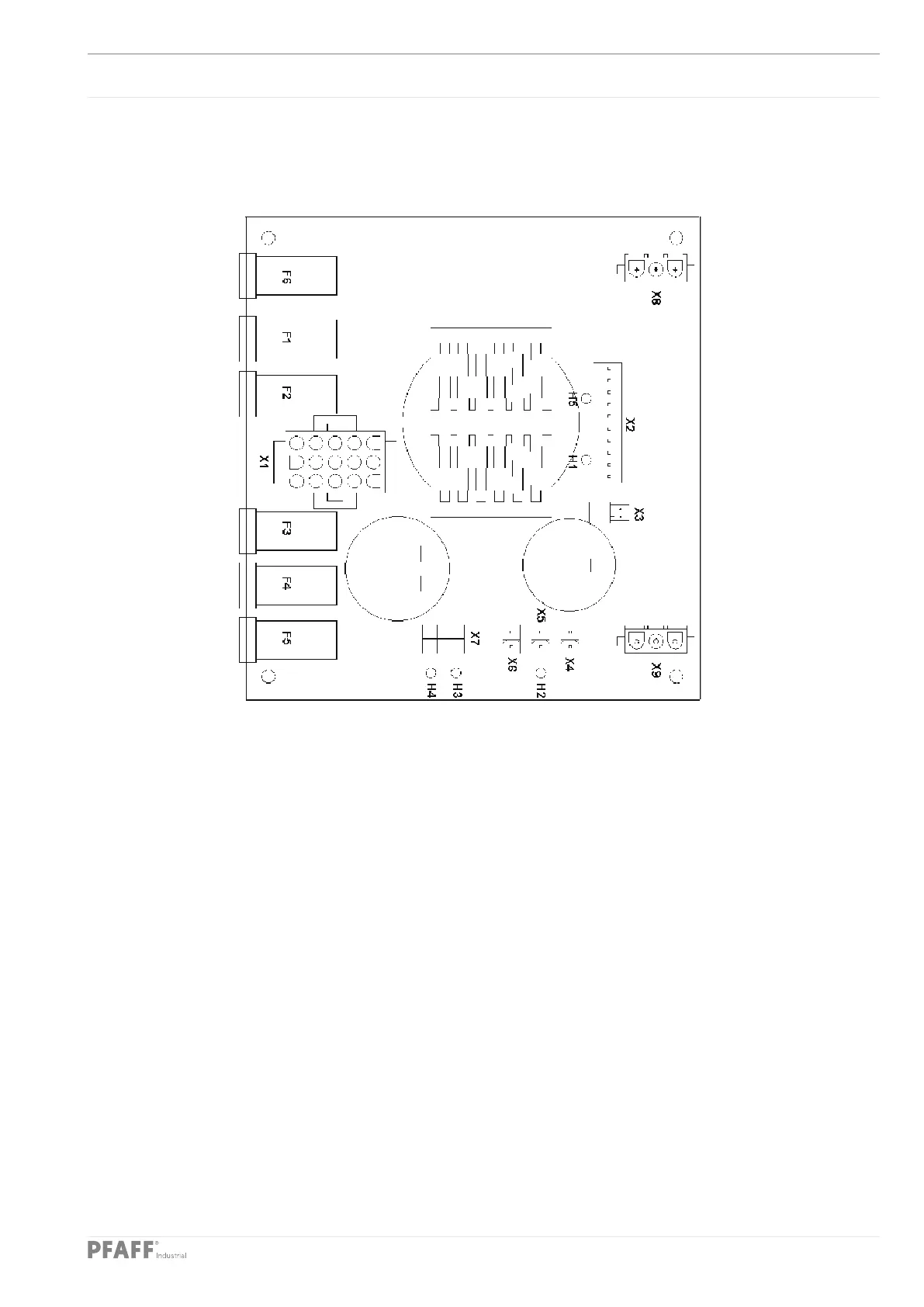

.01.01 Power supply A30
Voltage Fuse LED
Mains ................. 230V AC F6 .................(6,3 A T) -
Processor ........... 5V DC F1 .................(2 A T) H1
Control panel ...... 18 V DC F2 ................(500 mA T) H5
I/O ...................... 24 V DC F3 ................(2,5 A T) H2
Stepping motor .. 80 V DC F4 ................(6,3 A T) H3
Stepping motor .. 24V DC F5 ................(500 mA T) H4
Plug connection
X1 (Secondary transformer)
PIN Signal PIN Signal
3 .................... V1 18 V AC 1 7 ........................... V4 57 V AC 1
9 .................... V1 18 V AC M 13 ......................... V4 57 V AC M
6 .................... V1 18 V AC 2 10 ......................... V4 57 V AC 2
12 .................. V2 18 V AC 11 ......................... V5 18 V AC
15 .................. V2 18 V AC 14 ......................... V5 18 V AC
2 .................... V3 18 V AC 1 5
4 .................... V3 18 V AC M 8
1 .................... V3 18 V AC 2
