Pfaff 3519-5/01 - Adjusting the Loading Plate; Basic Setting of the Loading Plate Height

Adjustment
84
13.07 Adjusting the loading plate
13
.07.01 Basic setting of the loading plate height
Rule
The loading plate 3 should be centred between the strips 4 and 5 and be parallel to the
bars 4 and 5.
 Turn the screws 1 (screws 2) according to the rule.

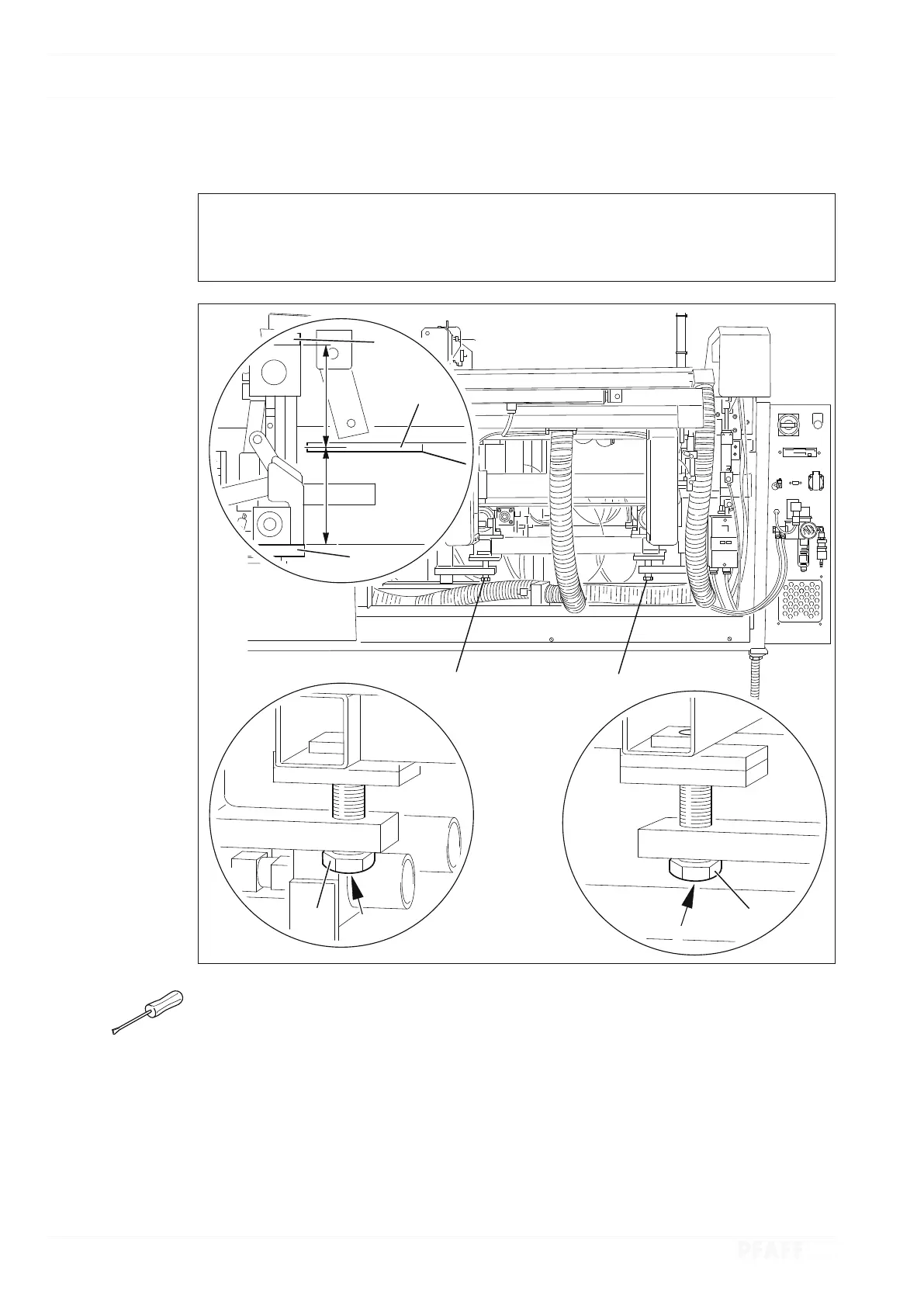

Fig. 13 - 17
1
1
3
4
5
==
2
1
2
1
