Adjustment
79

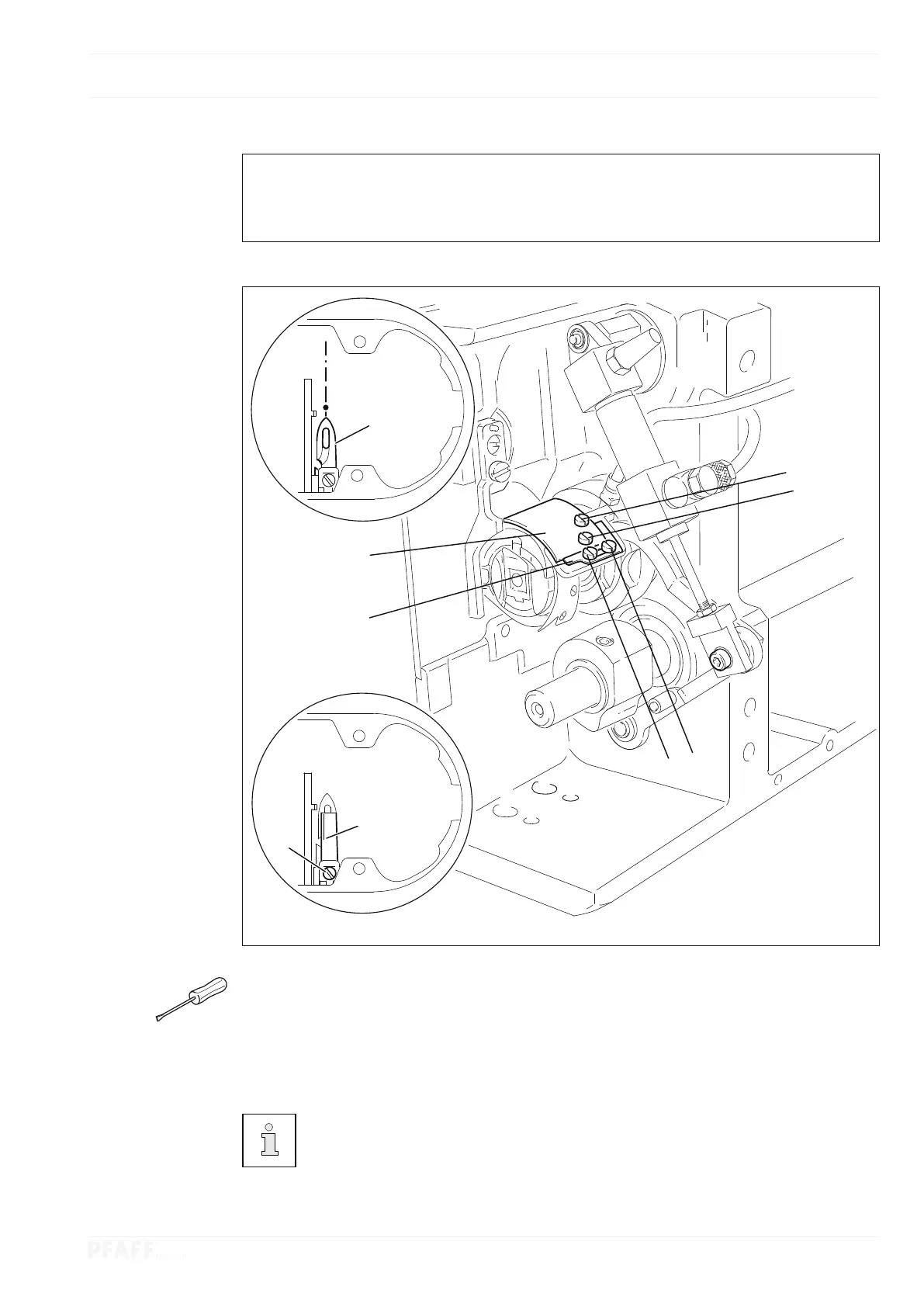

13.06.03 Aligning the thread trimmer laterally
Rule
1. The tip of the thread catcher 5 should point exactly at the needle midpoint.
2. The thread catcher 5 should be horizontal and not touch at any position as it moves.
Remove the knife 1 (screw 2).
Move the needle bar to b.d.c.
Loosen the stop 3 (screws 4).
Manually position the thread catcher 5 (screws 6) in front of the needle and align
according to the rules.
Fig. 13 - 12
3
4
5
6
6
4
5
1
2
