Pfaff 3519-5/01 - Aligning the Sewing Head; Sewing Head Height

Adjustment
87
Rule
The upper edge of the sewing machine bed plate should have a clearance of 0.5 mm to
the surface plate 5.
 Move the sewing head to the service position, see chapter 13.04 Sewing head service
position.
 Loosen the screws 1.
 Turn the screws 2 (nuts 3) according to the rule making sure that the bars 4 are
horizontal.
 Tighten the screws 1.
 Move the sewing head back to the operating position.
1
1
2
2
3
3
4

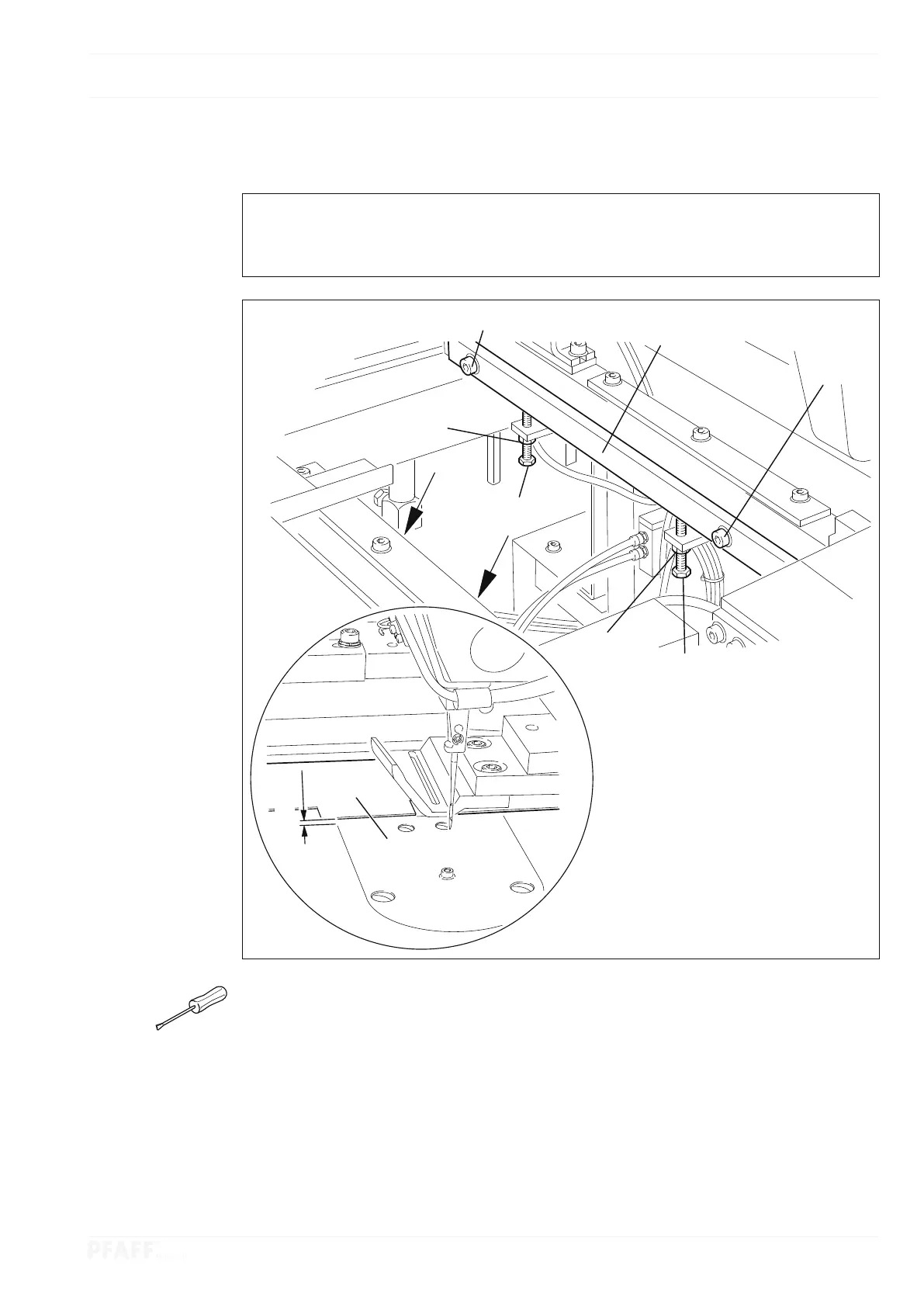

Fig. 13 - 20
13.08 Aligning the sewing head
13
.08.01 Sewing head height
5
0.5 mm
