Pfaff 3519-5/01 - Adjusting the Short Brushes

Adjustment
99
13.15.02 Adjusting the short brushes
Rule
1. The upper and lower brush should rest directly on or against the loading plate when
the brushes are closed.
2. The upper and lower brush should each have a clearance of approx. 4 mm to the
loading plate when the brushes are open.
Adjusting the upper brush:
 Turn the screw 1 (nut 2) according to rule 1.
 Turn the screw 3 (nut 4) according to rule 2.
Adjusting the lower brush:
 Adjust the cylinder bracket 5 (nut 6) according to rule 1.
 Turn the screw 7 (nut 8) according to rule 2.
The closing of the brushes is dependent on the material and must be adjusted
according to the sewing result.

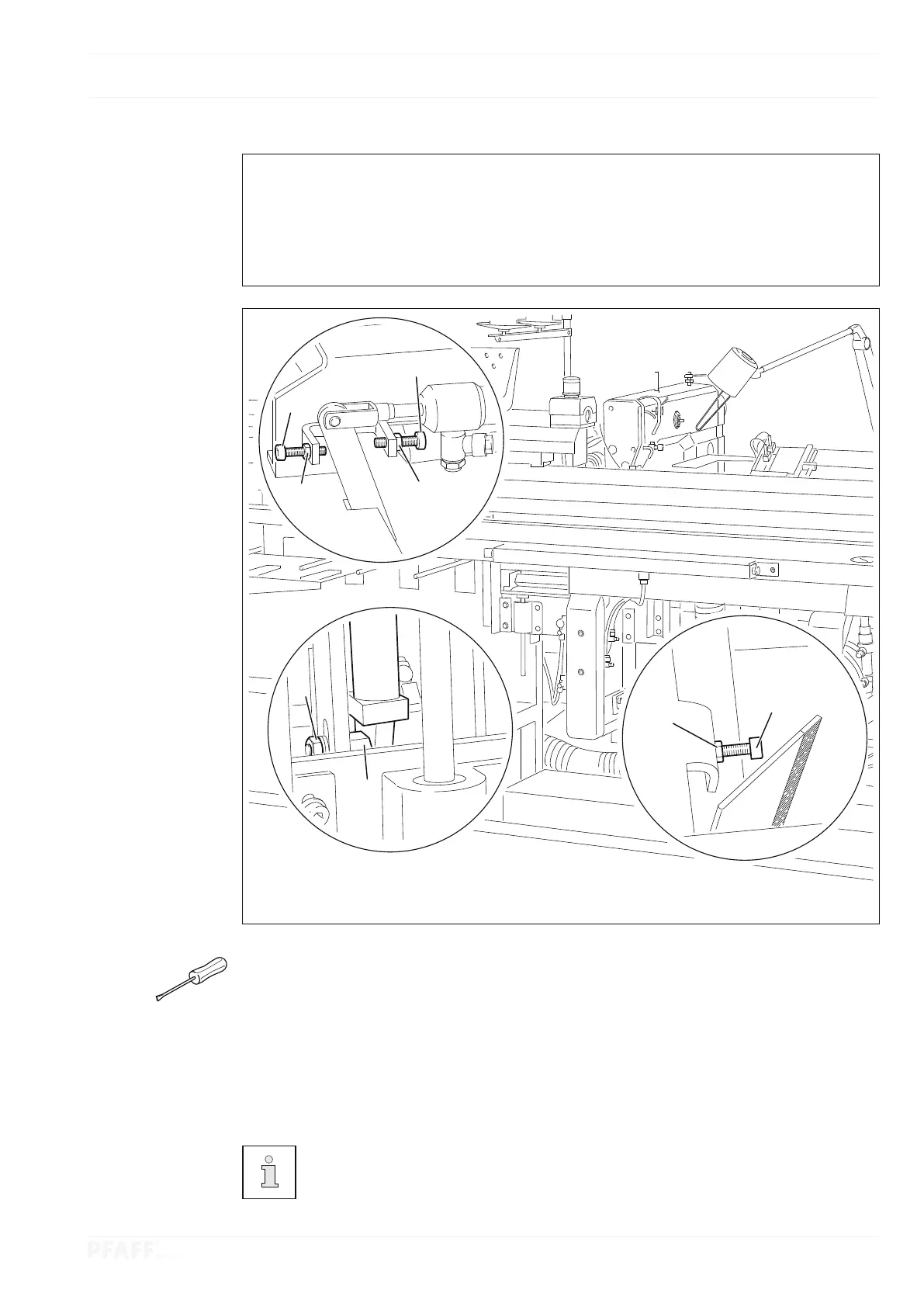

Fig. 13 - 32
3
4
1
2
6
5
7
8
