Adjustment
70
13.05.02 Machine drive home position
This setting is only made if the toothed belt 2 has been dismantled.
Rule
The markings 3 and 4 should be aligned if the needle bar is positioned 1.8 mm after b.d.c.
Move the needle bar to a position 1.8 mm after b.d.c., see chapter 13.05.01 Adjustment
aid.
Turn the toothed belt wheel 1 according to the rule and slide on the toothed belt 2.
Make sure that the shaft flange, shock absorber and motor flange are in the
right position when installing the motor!

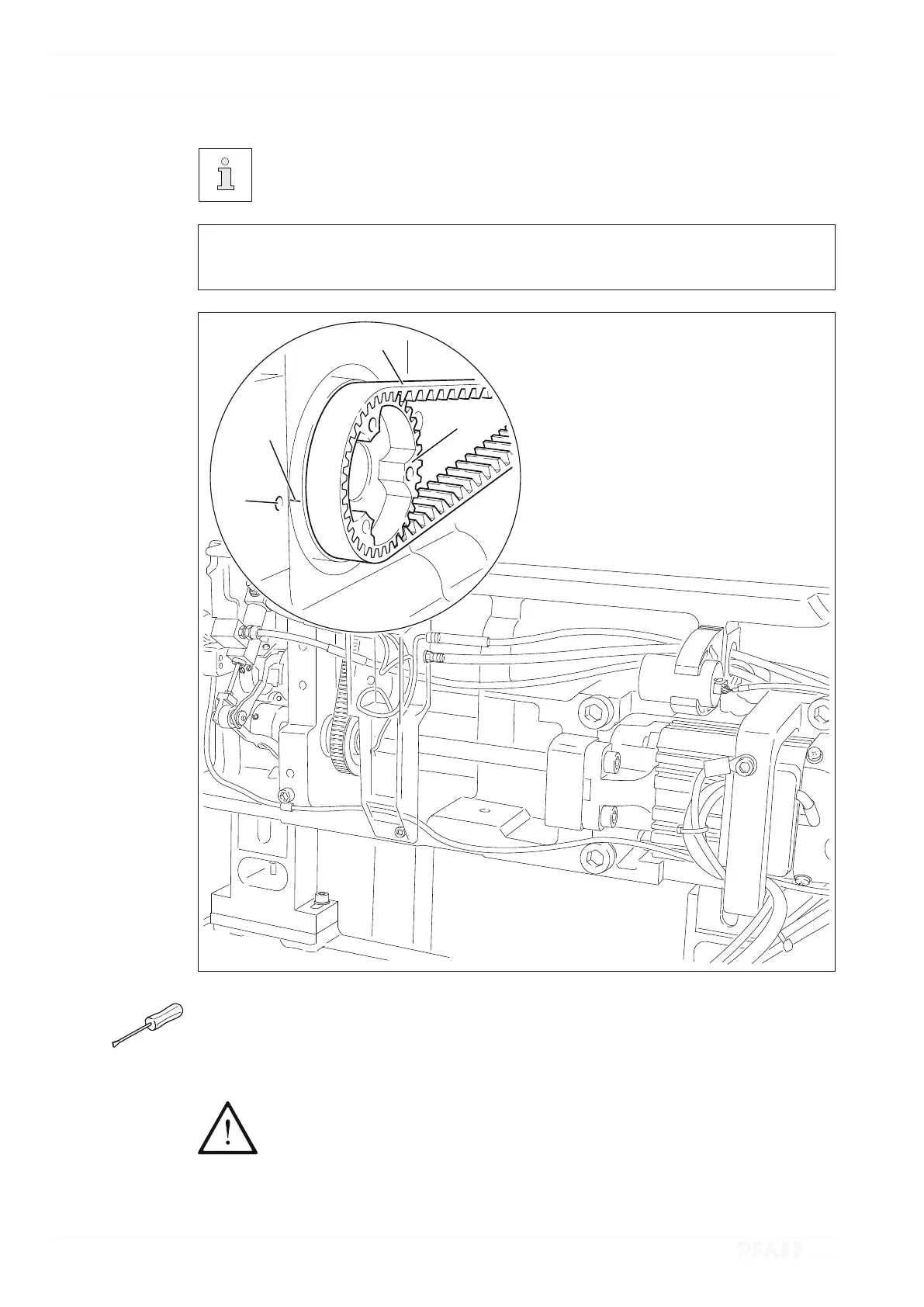

Fig. 13 - 03
2
1
3
4
