Maintenance and Care
61

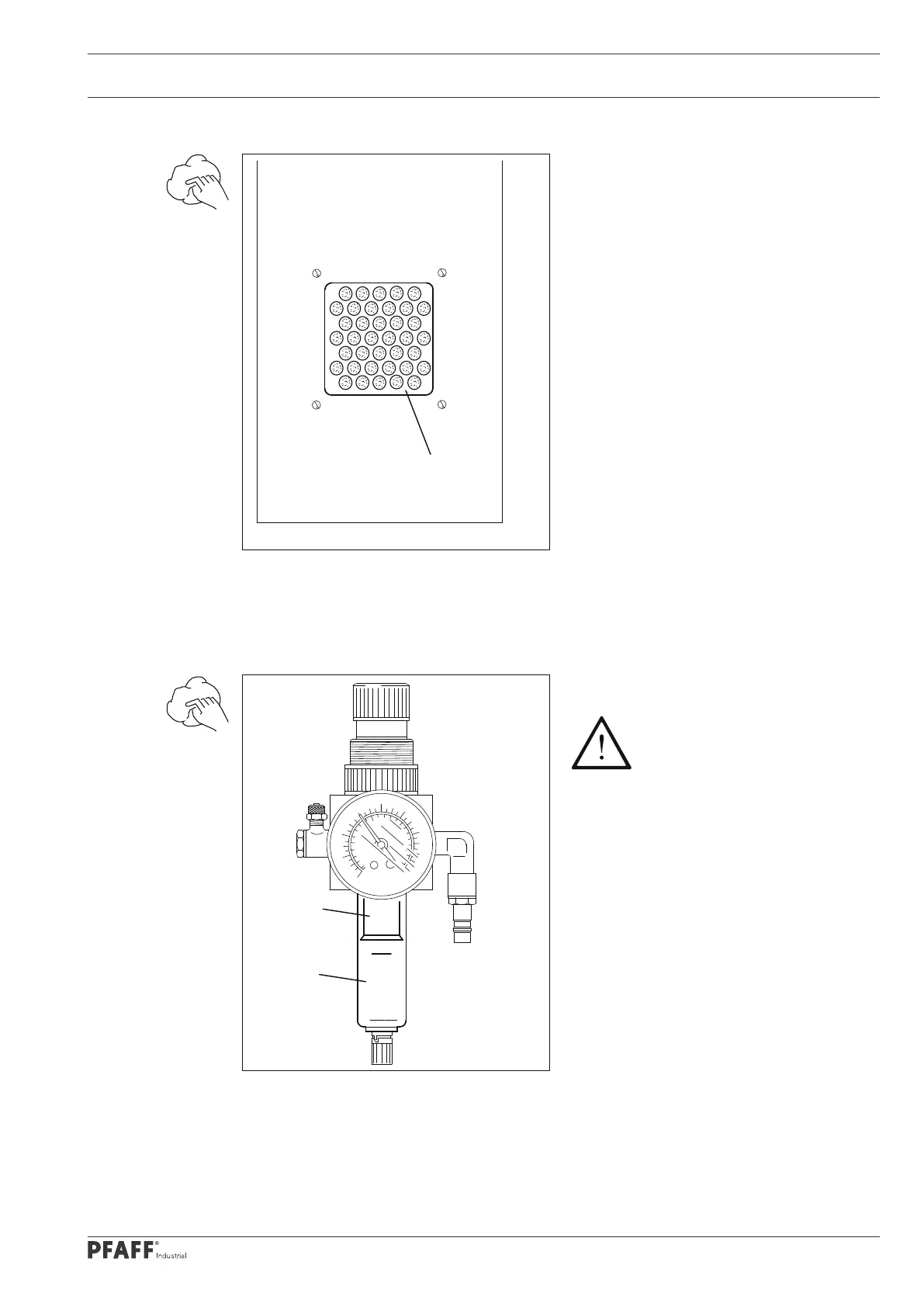

Fig. 12 - 03
12.05 Cleaning the maintenance unit air filter
Switch off the machine!
Push the slide closure on the
maintenance unit downwards,
see chapter 8.02 Initial start-
up.
Emptying the water tank:
The water tank 1 empties itself
automatically after the compressed air
tube for the maintenance unit has been
removed.
Cleaning the filter:
Unscrew the water tank 1 and take out
the filter 2.
Clean the filter 2 with compressed air or
isopropyl alcohol
(order no. 95-665 735-91).
Screw in the filter 2 and screw on the
water tank 1.
2
1
12
.04 Cleaning the blower air filter
As required:
Remove the cover 1.
Remove the filter element and blow it
out with compressed air.
Insert the cleaned filter element and
replace the cover 1.
Fig. 12 - 02
1
10
12
0
6
4
2
8
16
14
100
50
150
0
200
230
