Adjustment
102
13.16.03 Changing the knife
Rule
The knife must be replaced when the cutting performance deteriorates.
Open the tensioning lever on the loading clamp.
Loosen the star knob screws and push the loading clamp in the direction of the arrow.
Disassemble the retaining collar 1 and remove the cylinder 2.
Loosen the screws 3 and remove the toothed belt 4.
Pivot the knife unit 5 upwards.
Replace the knife 6 (screw 7) making sure that the largest diameter of the knife 6 does
not touch the thread catcher 8.
If necessary, remove the thread catcher 8 and insert the support plate.
Fit the toothed belt 4, press against the bar 9 and tighten the screws 3.
Mount the cylinder 2 and fit the retaining collar 1.
Push the loading clamp back until it stops, close the tensioning lever and tighten the star
knob screws.

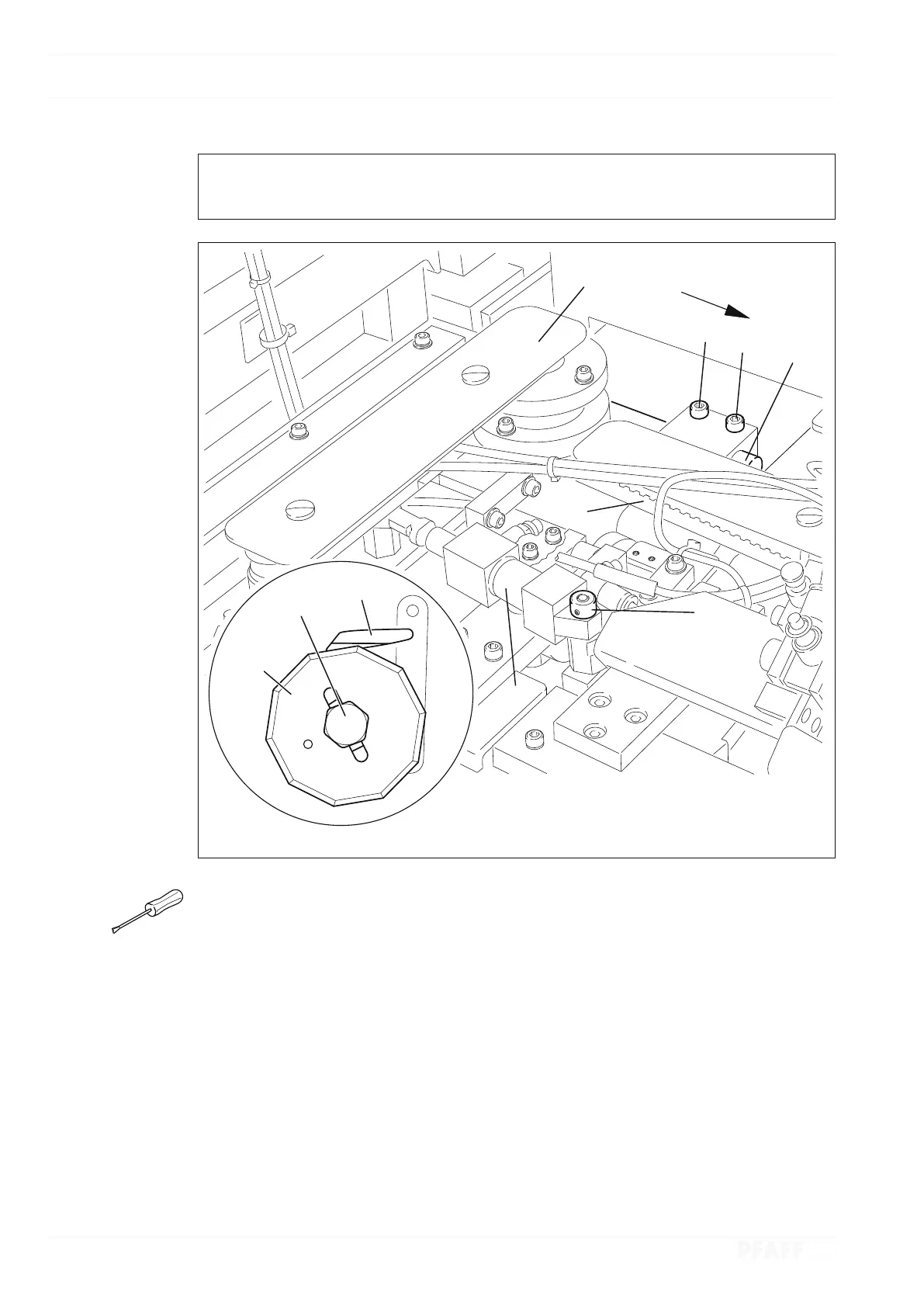

Fig. 13 - 35
3
3
9
1
4
5
2
6
8
7
