Pfaff 3519-5/01 - Needle in Needle Hole Centre

Adjustment
71
13.05.03 Needle in needle hole centre
Rule
The needle should pierce the centre of the needle hole exactly.
 Move the needle directly over the needle hole.
 Loosen the screws 1, 2 and 3.
 Adjust the needle bar frame 4 according to the rule.
 Tighten the screw 2 and gently tighten the screw 3.
 Use the screw 1 to pull the internal guide pin up to the eye of the needle bar frame 4 and
tighten it.
 Turn the handwheel a few turns so that the needle bar frame 4 is not under tension.
 Tighten the screw 3.

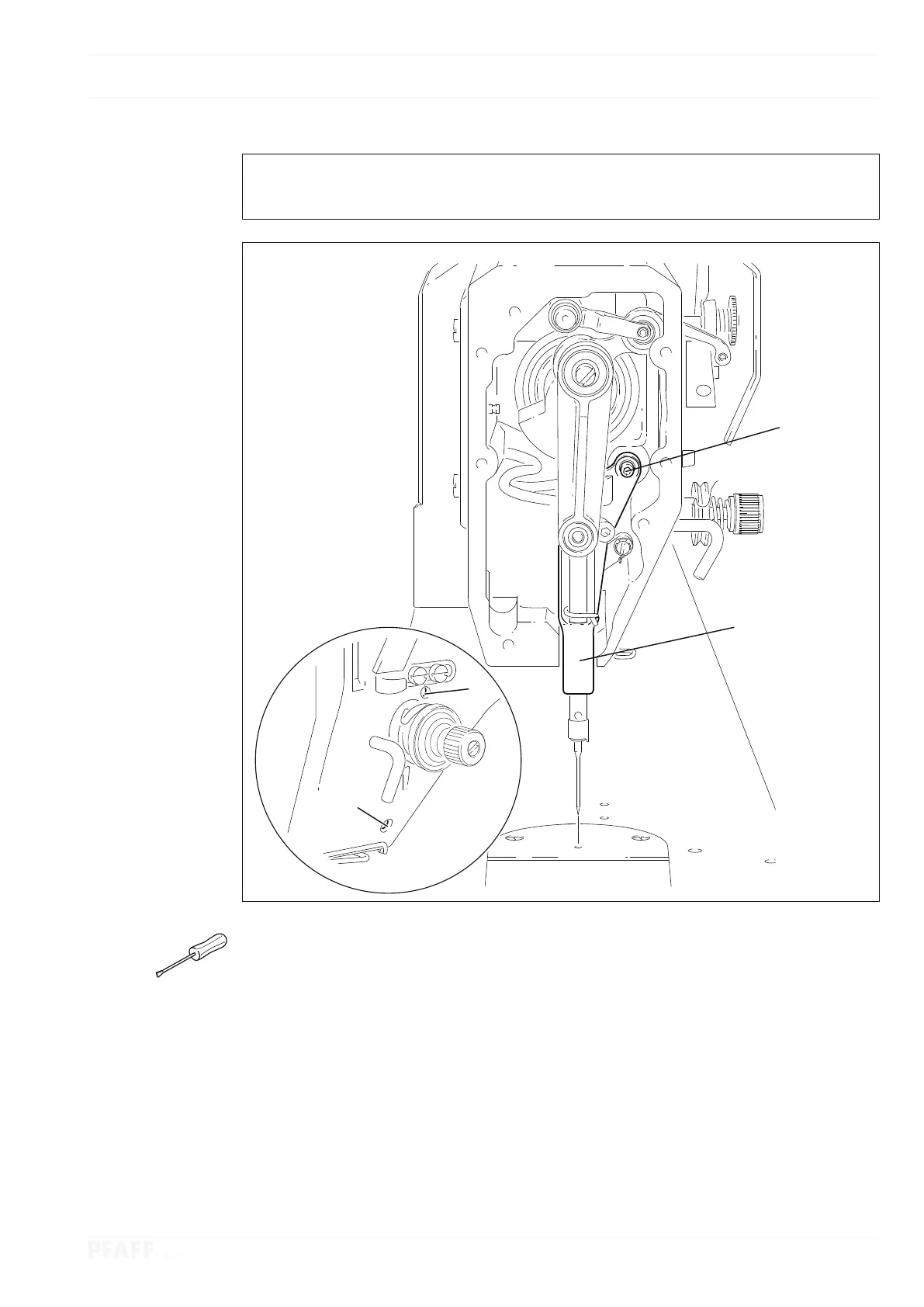

Fig. 13 - 04
1
4
3
2
