Pfaff 3519-5/01 - Assembling the Reel Stand; Connecting the Pedal

Set-up and Initial Start-up
23

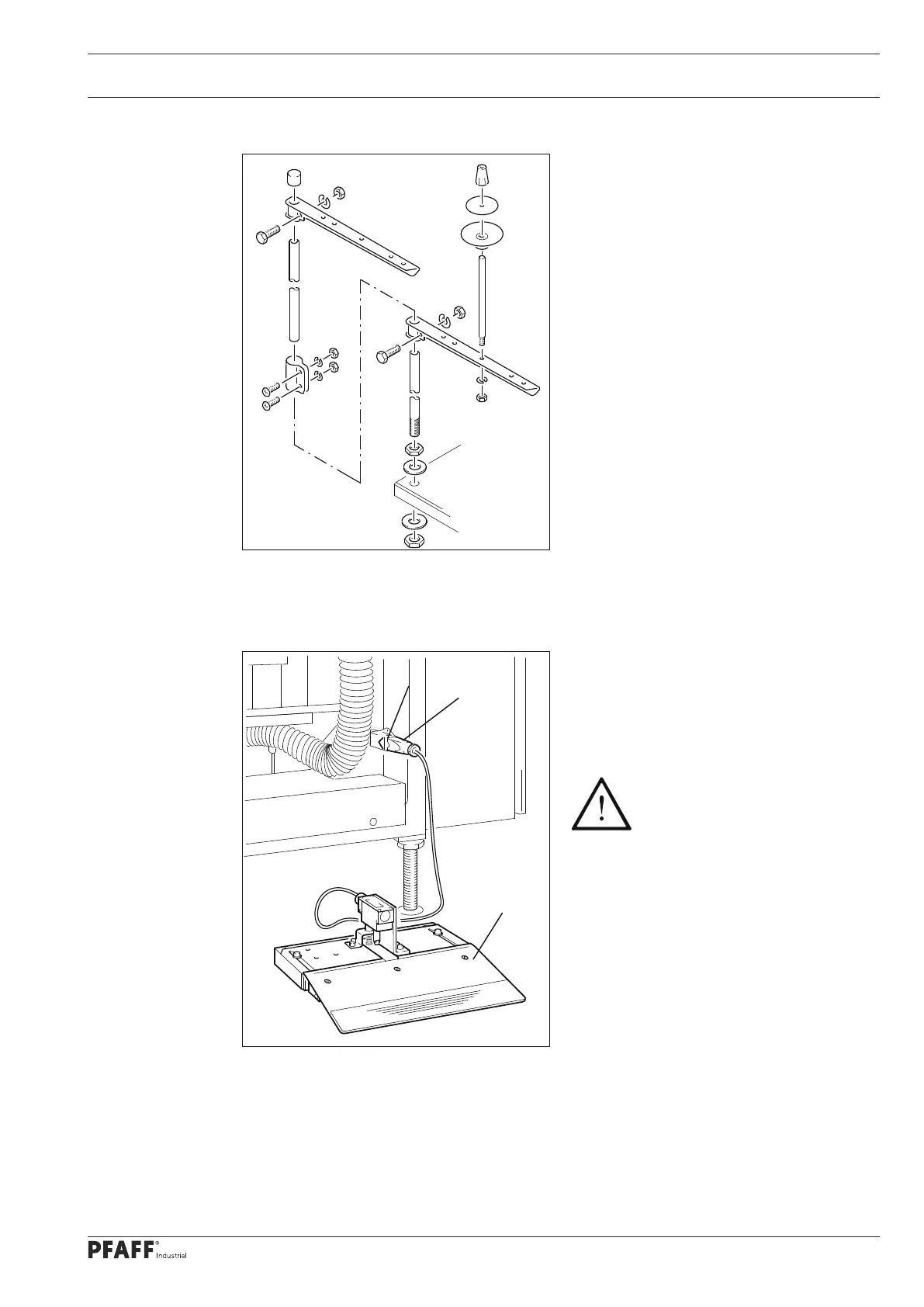

Fig. 8 - 05
8.01.05 Assembling the reel stand
 Assemble the reel stand as shown in the
adjacent illustration.
 Then insert the stand into the hole on
the machine stand and secure it with the
enclosed nuts.
Fig. 8 - 06
8.01.06 Connecting the pedal
 Insert the connector 1 into the corre-
sponding bushing on the machine stand.
 Secure the connector with the lever 2.
Secure the supply cable to the
pedal 3 on the machine stand
(e.g. with cable clips) to prevent
a tripping hazard!
1
2
3
