Pfaff 3519-5/01 - Insertion Depth of the Loading Plate

Adjustment
86
13.07.03 Insertion depth of the loading plate
Rule
1. There should be a clearance of 12 mm between the front edge of the plate and the
needle hole centre when the loading plate is retracted.
2. The screws 1 should rest on the stops when the loading plate is extended.
 Screw in the screws 1 (nuts 2) until they no longer touch the stops.
 Adjust the cylinder (screws 3 on the cylinder bracket 4) according to rule 1.
 Turn the screws 1 (nuts 2) according to rule 2.

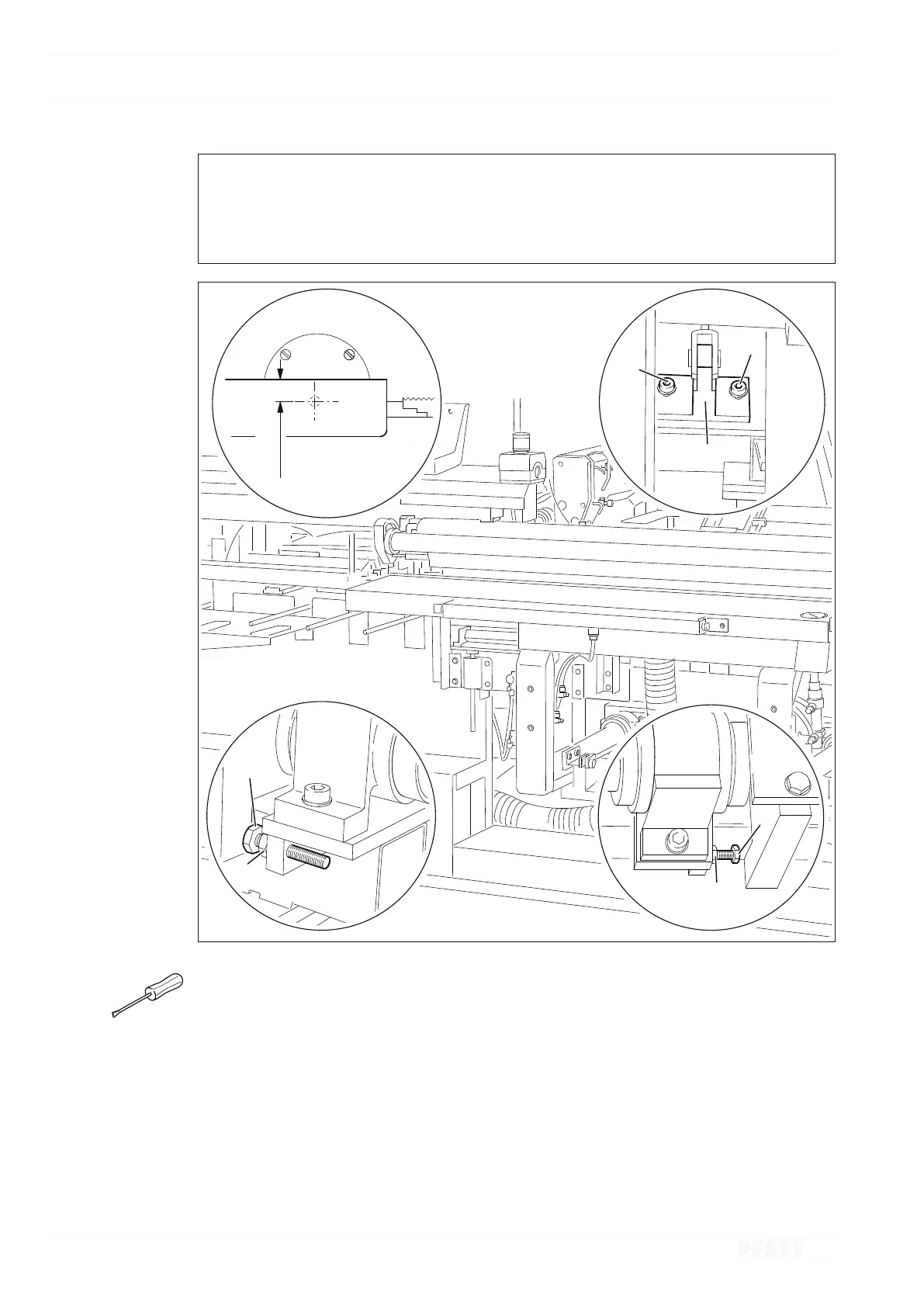

Fig. 13 - 19
12 mm
3
3
4
1
2
1
2
