Adjustment
69
Fig. 13 - 02
13
.05
Adjusting the sewing head
13
.05.01
Adjustment aid

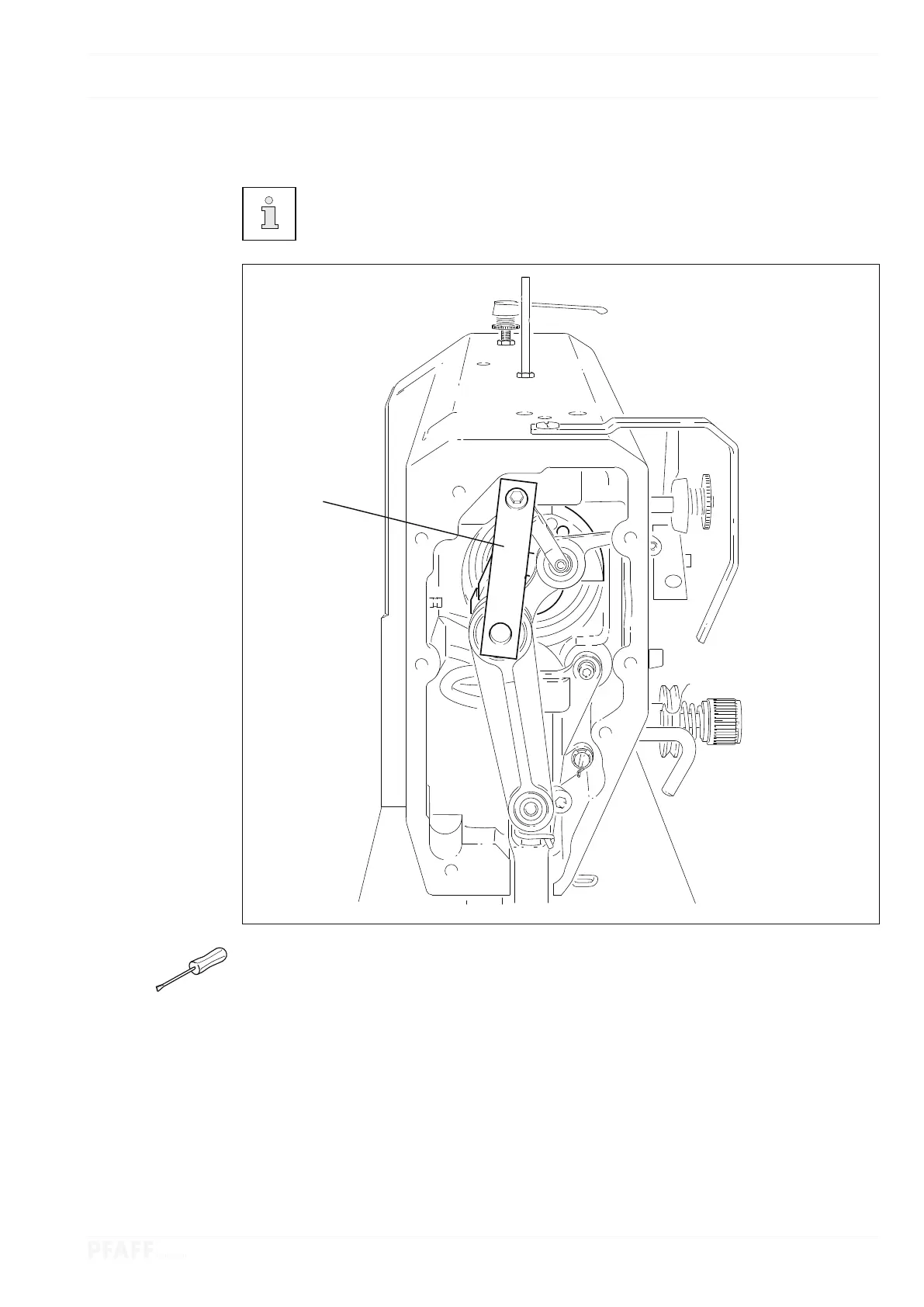

The adjustment gauge
1
(order no. 95-752 474-05) can be used to fix the needle
bar in the needle rise position (needle bar is positioned 1.8 mm after b.d.c.).
Turn the handwheel until the needle bar is approximately in the required position.
Fit the adjustment gauge
1
as shown in Fig.
13-02;
move the handwheel gently back and
forwards if necessary until the adjustment gauge
1
fits properly.
1
