Pfaff 3519-5/01 - Height and Alignment of the Positioning Tube

Adjustment
92
13.10.03 Height and alignment of the positioning tube
Rule
When the positioning tube 3 is in the front final position
1. its top edge should maintain a distance of 18.9 mm to the upper edge of the loading
plate and
2. the corresponding holes on the marking should be centred in relation to the loading
plate needles.
 Adjust the stop 1 (screw 2) according to rule 1.
 Turn or adjust the positioning tube 3 (two screws 4 respectively) according to rule 2.

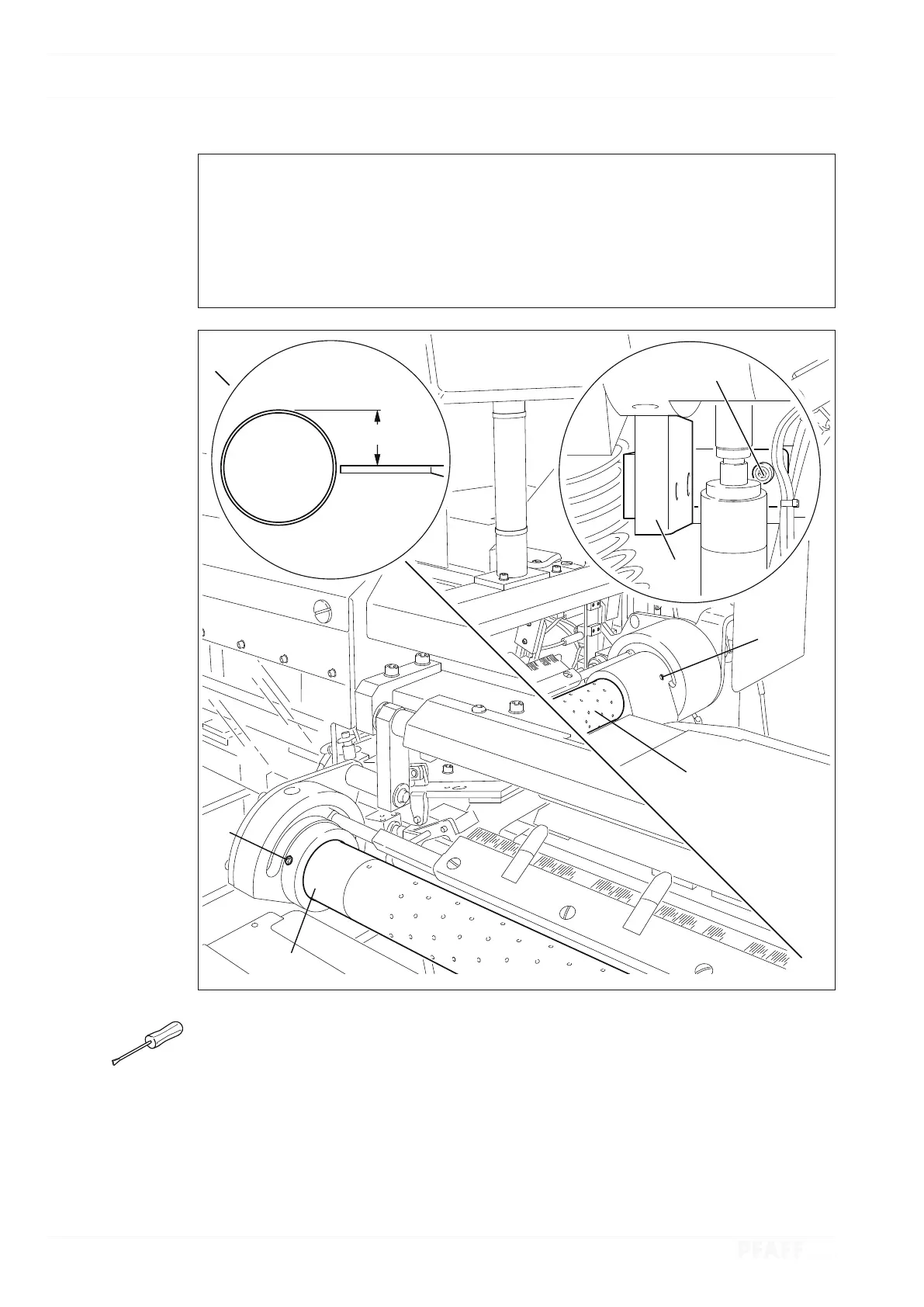

Fig. 13 - 25
3
4
4
3
18.9 mm
2
1
