136

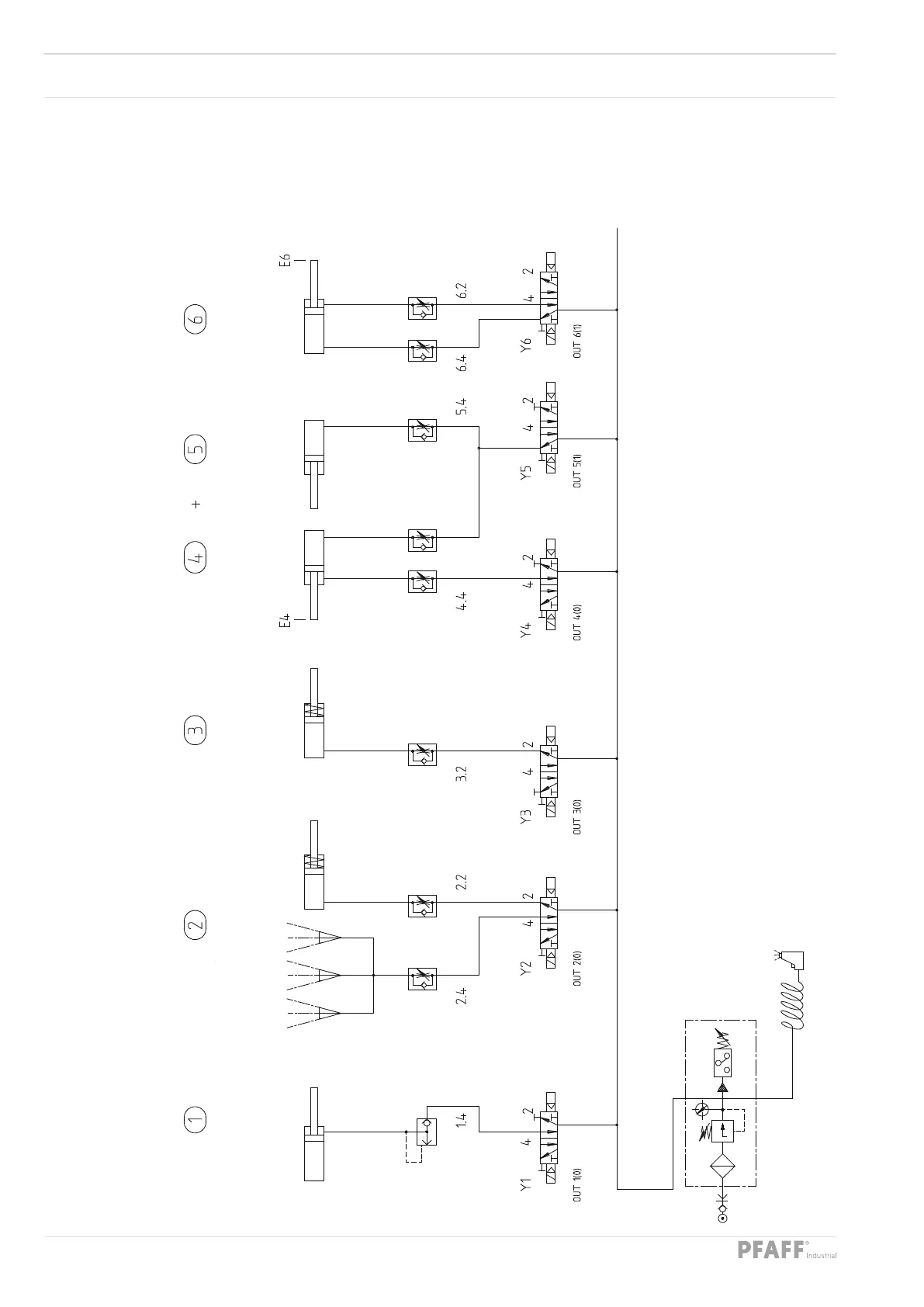

15 Pneumatic Circuit Diagram
91-744 699-95 Part 1 Version 14.06.06 Pneumatic Circuit Diagram
The pneumatic diagram is drawn in the machine's home position. The power (air and
electricity) is connected. The components are in a fixed state.
CAN node 1
(Page 1 of 3)
Thread trimming
Air blast
infeed table
Work surface
stacker
Vacuum posi-
tioning tube
Vacuum infeed
table
Workholder bar
Air blast pistol
