13.23 Service menu
The status of the digital and analogue inputs are displayed in the service menu. The outputs
can be set or reset manually. In addition, it is also possible to call up functions for carrying
out a cold start, for the machine configuration, for loading the operating program and for set-
ting the control panel.
Switch the machine on.
Call up input mode.
Call up the service menu.

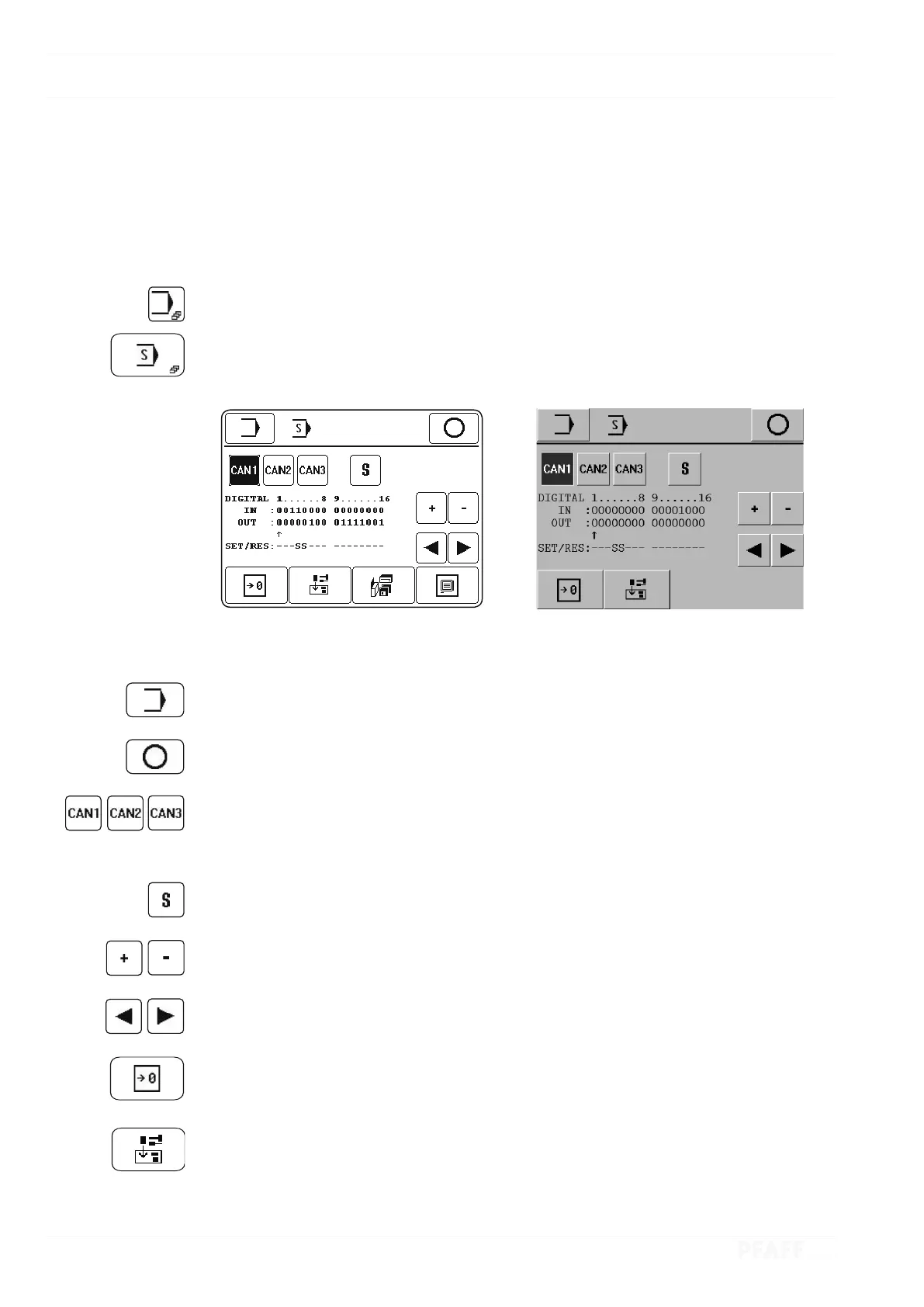

Description of the functions
Input mode
This function is used to change the initial status of input mode.
Conclude input
This function is used to conclude the input and the machine switches to sewing mode.
CAN nodes
This function is used to select the desired CAN node; the currently selected CAN node is
shown inversely.
Special outputs
This function can be used to set or reset special outputs.
Plus/minus keys
These functions are used to set (+) or reset (-) the selected output.
Arrow keys
These functions are used to select the desired outputs.
Cold start
This function is used to perform a cold start, see chapter 13.23.01 Cold start.
Machine configuration
This function calls up a menu for configuring the machine, see chapter 13.23.02 Machine
configuration.
Control panel BDF T1
Control panel BDF P1
