Pfaff 3519-5/01 - Manual Cutting Control

Adjustment
82
13.06.06 Manual cutting control
Rule
Two threads must be cut cleanly on both the left and right in the thread catcher cutout 1.
 Fit the needle plate.
 Manually move the thread catcher 1 to its front turning point.
 Pull a double-up length of thread and hook it in the thread catcher cutout.
 Carry out the cutting operation manually.
 If the threads are not cut according to the rule, align the thread catcher 1 (screws 2) to
the knife 3 accordingly.
 Move the stop 4 until it abuts the thread catcher 1 and tighten the screws 5.
 Chapter 13.06.03 Checking and if necessary adjusting the lateral alignment of the
thread catcher.
1
4
2
2
5
5
3
1

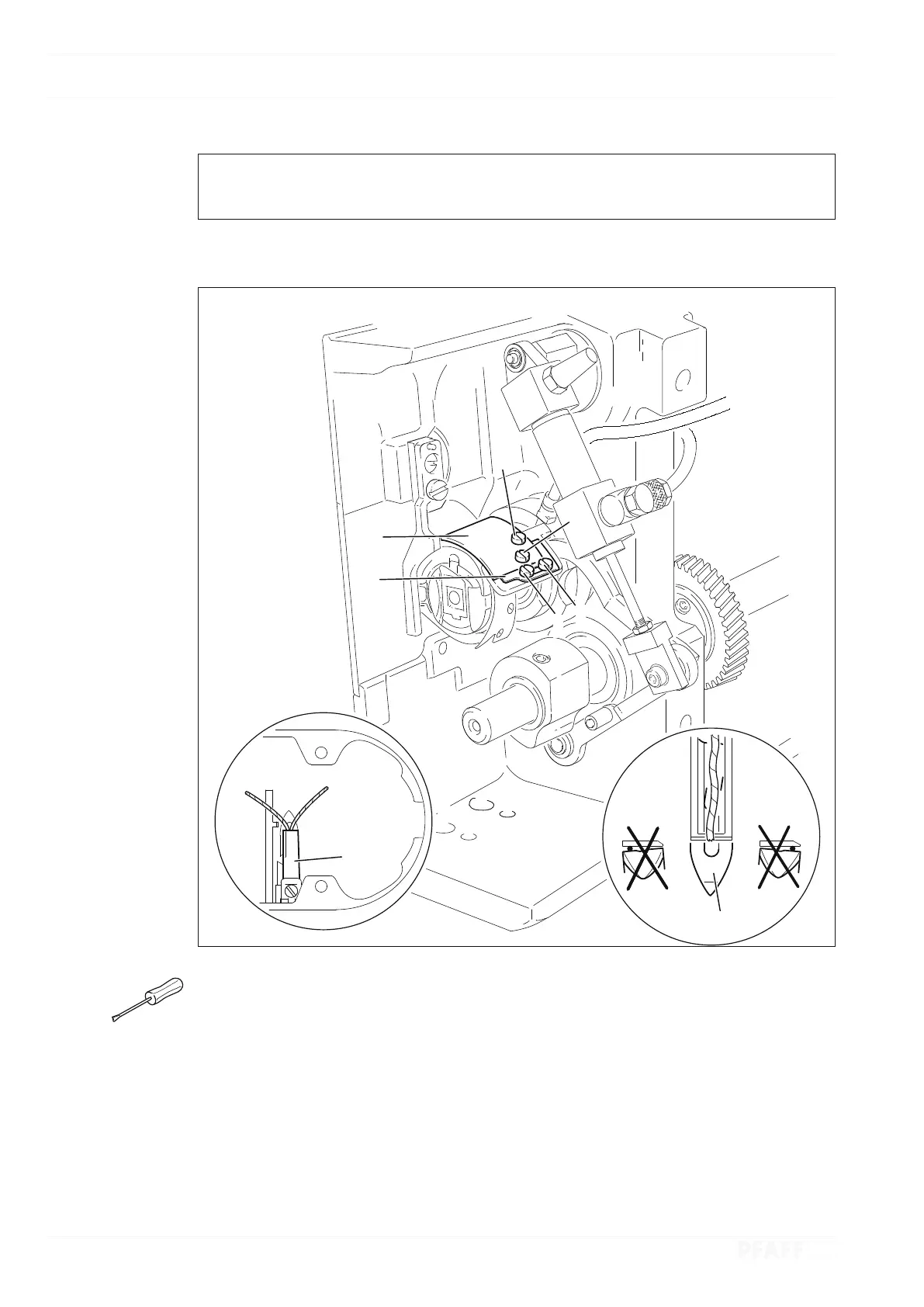

Fig. 13 - 15
