Adjustment
97
13
.14.02
Position of the loading clamp
Rule
1.
The inner claws of the loading clamp should touch the retracted loading plate
6 - 7 mm
behind the front edge.
2.
The clearance between the left claw edge of the loading clamp and the needle hole
centre should be
50 mm
.
Adjust the loading clamp (screws
1
)
according to
rule
1.
Adjust the bracket
2
(screws
3
)
according to
rule
2.

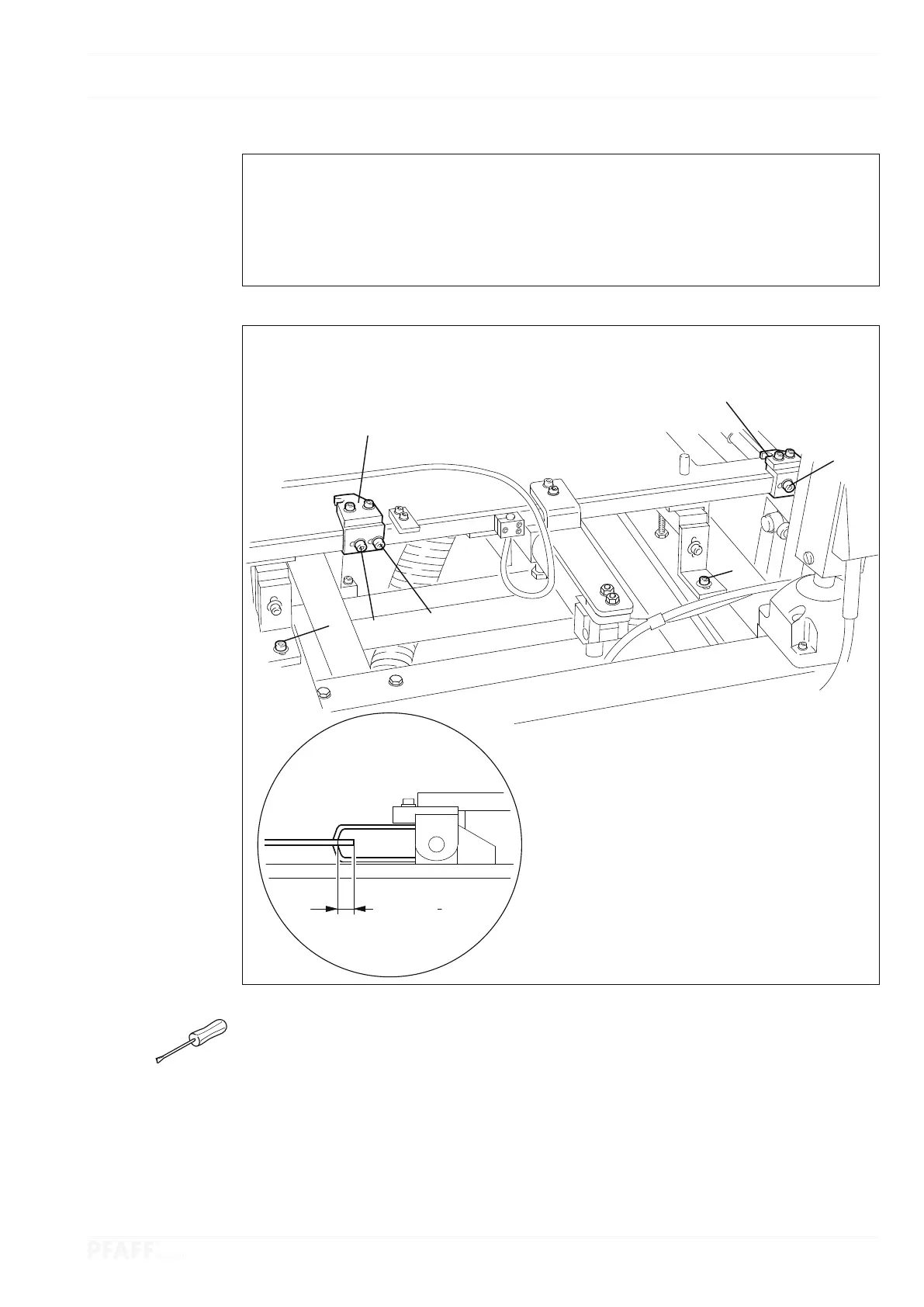

Fig. 13 - 30
3
2
1
1
3
3
2
6 - 7 mm
96
98
