Pfaff 3519-5/01 - Adjusting the Table Extension

Adjustment
95
13.13 Adjusting the table extension
Rule
When extended, the front edge of the table extension 1 should be flush with the front
edge of the loading plate.
 Adjust the table extension 1 (screws 2) according to the rule.
If necessary, the clearance between the retracted table extension 1 and the
loading plate can be changed according to the incision depth on the screw 3
(nut 4).

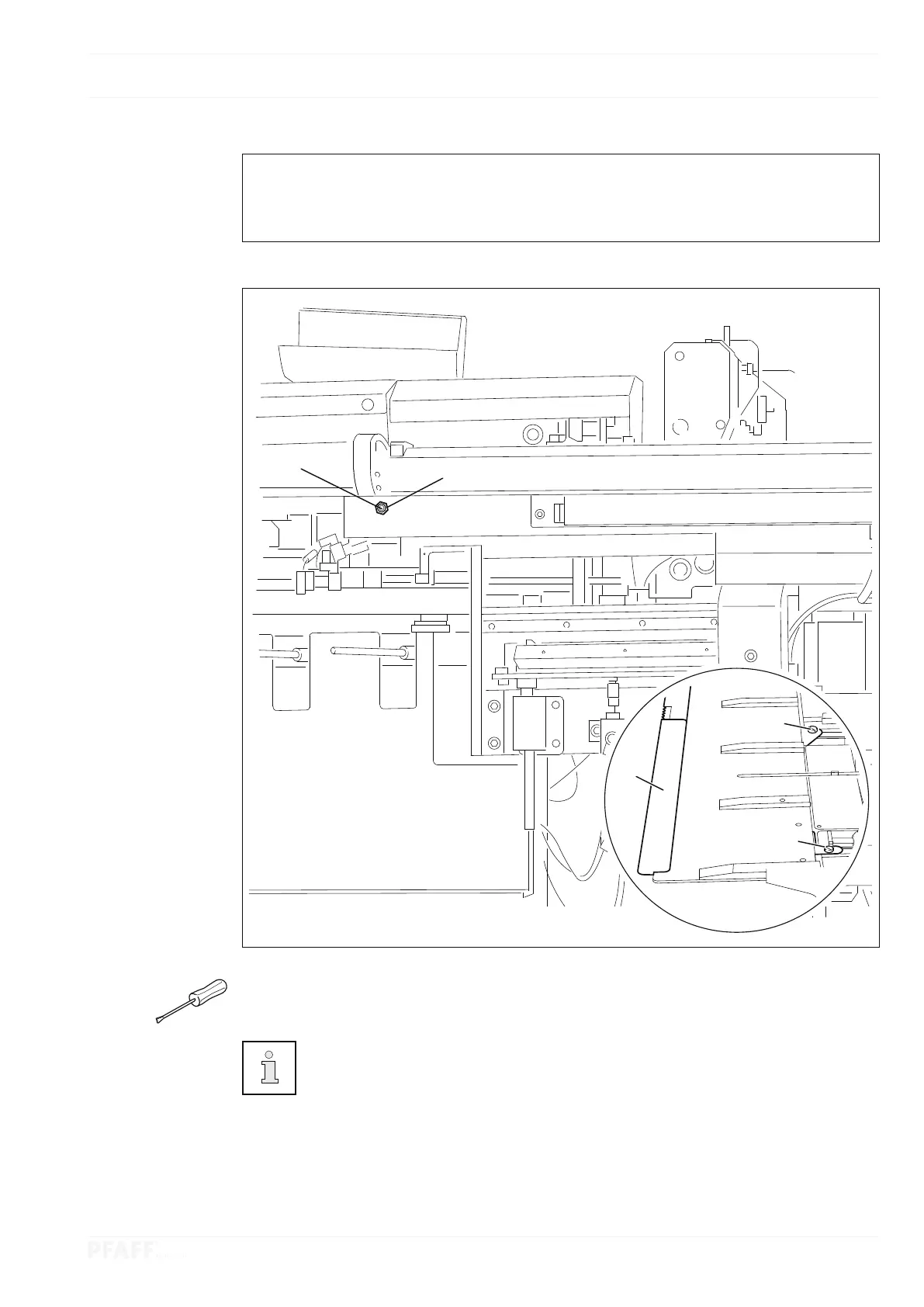

Fig. 13 - 28
3
4
1
2
2
