Pfaff 3519-5/01 - Loading Plate Position

Adjustment
85
13.07.02 Loading plate position
Rule
The loading plate 1 should be parallel to the rail 3.
 Remove the cover plate of the loading plate 1.
 Retract the loading plate 1 manually.
 Adjust the loading plate 1 (screws 2) according to the rule.
 Fit the cover plate.
1

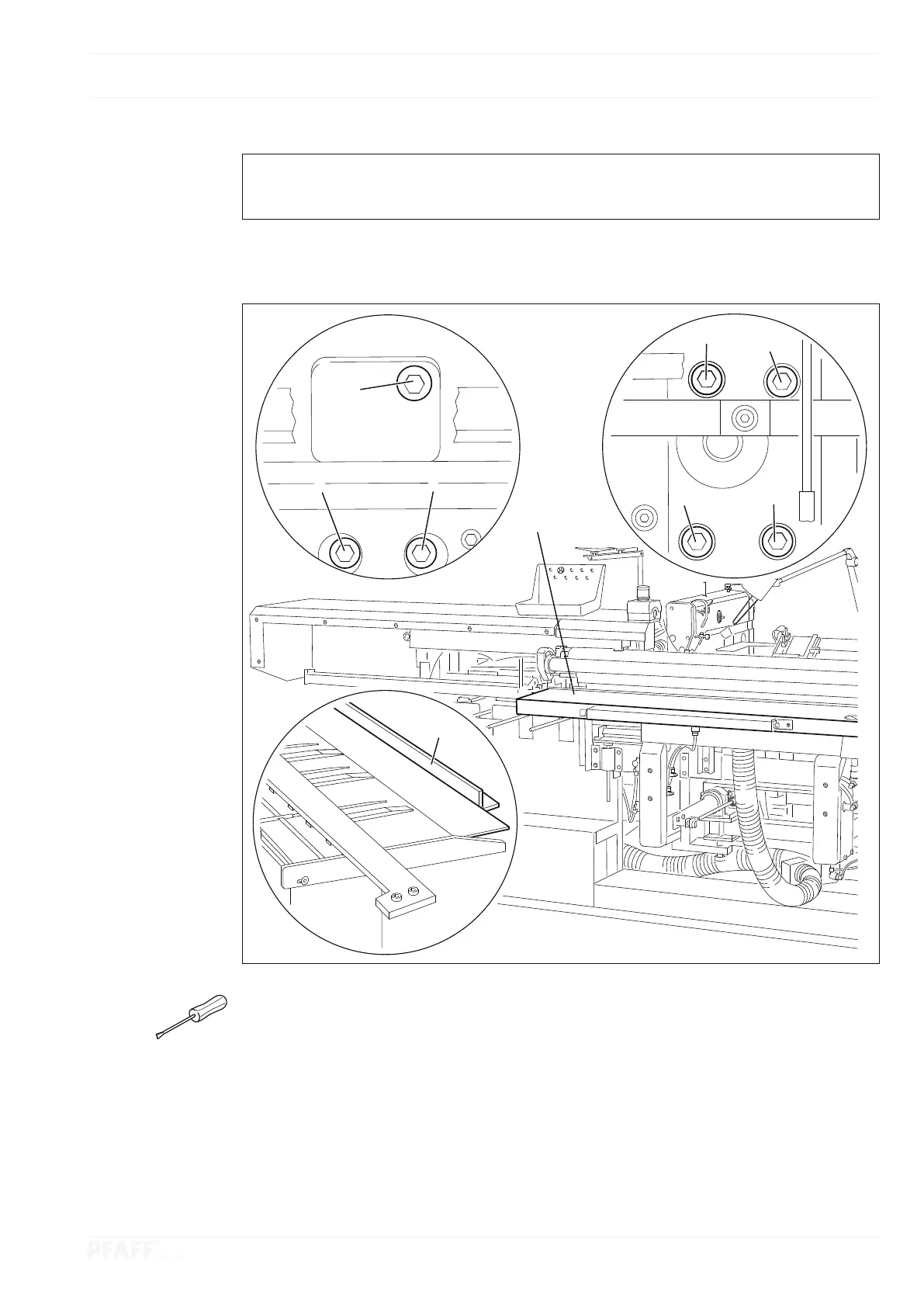

Fig. 13 - 18
