Pfaff 3519-5/01 - Adjusting the Small Parts Stacker

Adjustment
108
13.21 Adjusting the small parts stacker
Rule
1. The stacker should be adjusted so that the material is placed cleanly on the depositing
table 1.
 Open the screws 2.
 Adjust the stop 3 according to the rule.
 Tighten the screws 2.

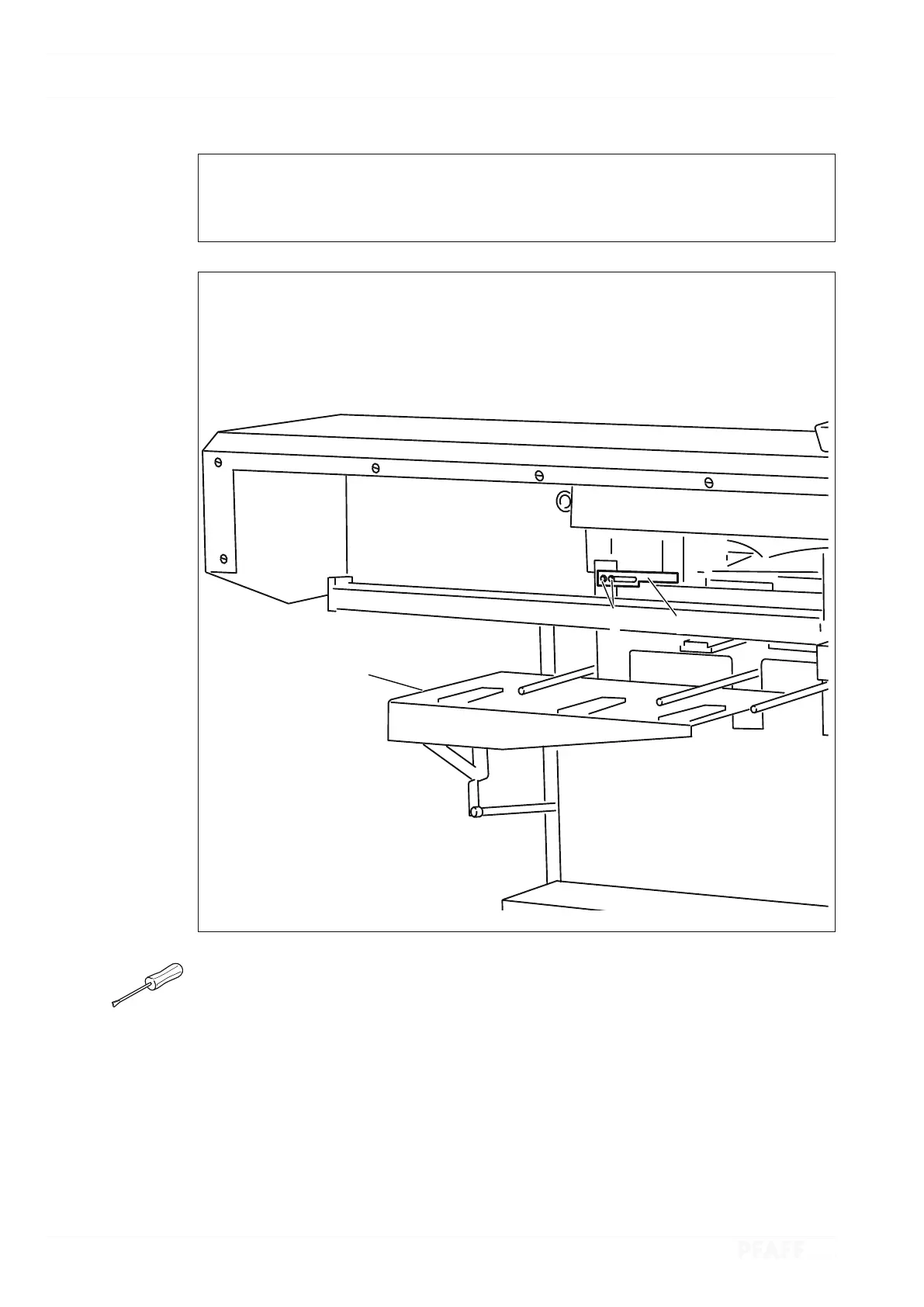

Fig. 13 - 41
1
3
2
