Adjustment
98
13.15 Adjusting the brushes
13
.15.01 Adjusting the long brushes
Rule
1. The closed brushes 1 should rest parallel on the loading plate and close far enough
that the material ail so that the material is smoothed out properly; in doing so, the
loading plate should retract directly in the middle between the brushes 1.
2. The open brushes 1 should have a clearance of approx. 10 mm from each other.
Adjust the brushes 1 (screws 2), the screw 3 (nut 4) and the screw 5 (nut 6) according to
the rules.
The closing of the brushes 1 is dependent on the material and must be
adjusted according to the sewing result.

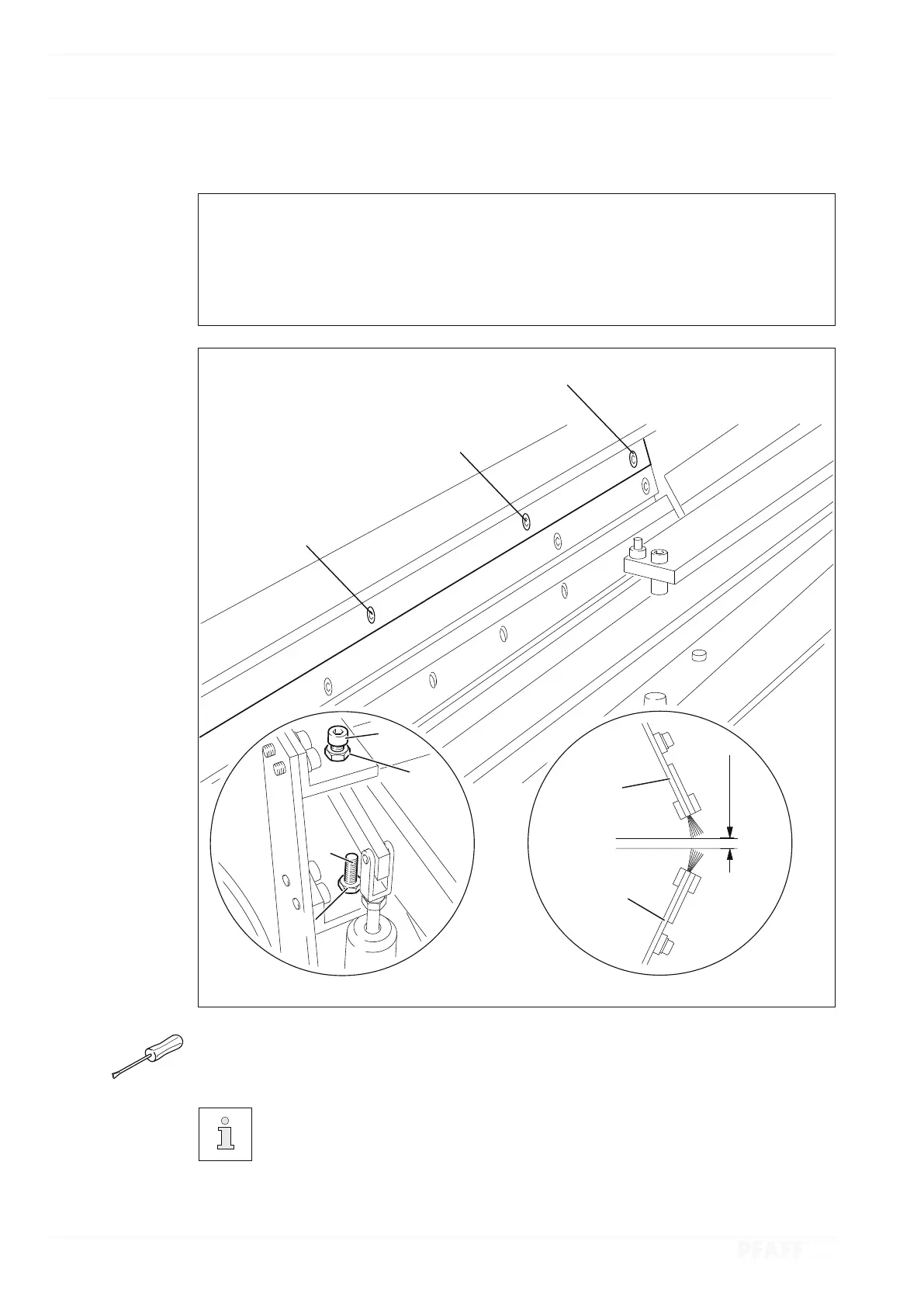

Fig. 13 - 31
2
2
2
3
4
5
6
1
1
10 mm
