User’s Manual of WGS Managed Series
The page includes the following fields:
Object Description
• Session ID
Set the port mirror session ID.
Possible ID are: 1 to 4.
• Monitor Session
State
Enable or disable the port mirroring function.
• Destination Port
Select the port to mirror destination port.
• Allow-ingress
Frames from ports that have either source (rx) or destination (tx) mirroring enabled are
mirrored to this port.
• Sniffer TX Ports
Frames transmitted from these ports are mirrored to the mirroring port. Frames received
are not mirrored.
• Sniffer RX Ports
Frames received at these ports are mirrored to the mirroring port.
Frames transmitted are not mirrored.
Buttons
: Click to apply changes.

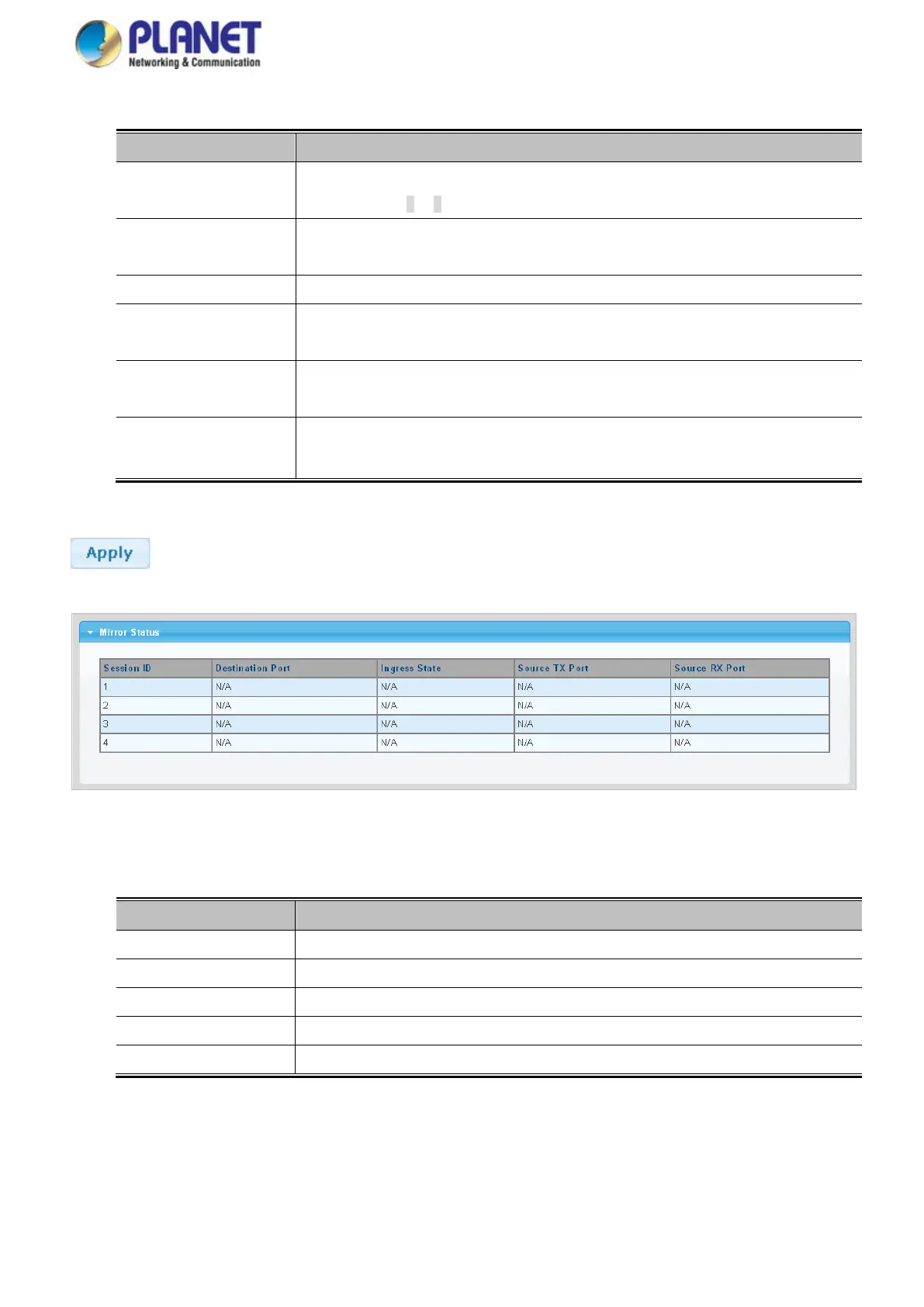

Figure 4-3-10 Mirroring Status Page Screenshot
The page includes the following fields:
Object Description
• Session ID
Display the session ID
• Destination Port
This is the mirroring port entry
• Ingress State
Display the ingress state
• Source TX Port
Display the current TX ports
• Source RX Port
Display the current RX ports
