User’s Manual of WGS Managed Series
The page includes the following fields:
Object Description
• LAG
The LAG for the settings contained in the same row
• Name
Display the current name
• Type
Display the current type
• Link State
Display the link state
• Active Member
Display the active member
• Standby Member
Display the standby member
• Modify
Click to modify LAG configuration
PoE Ports of WGS-804HPT will not be a LAG group.
4.4.3 LAG Port Setting

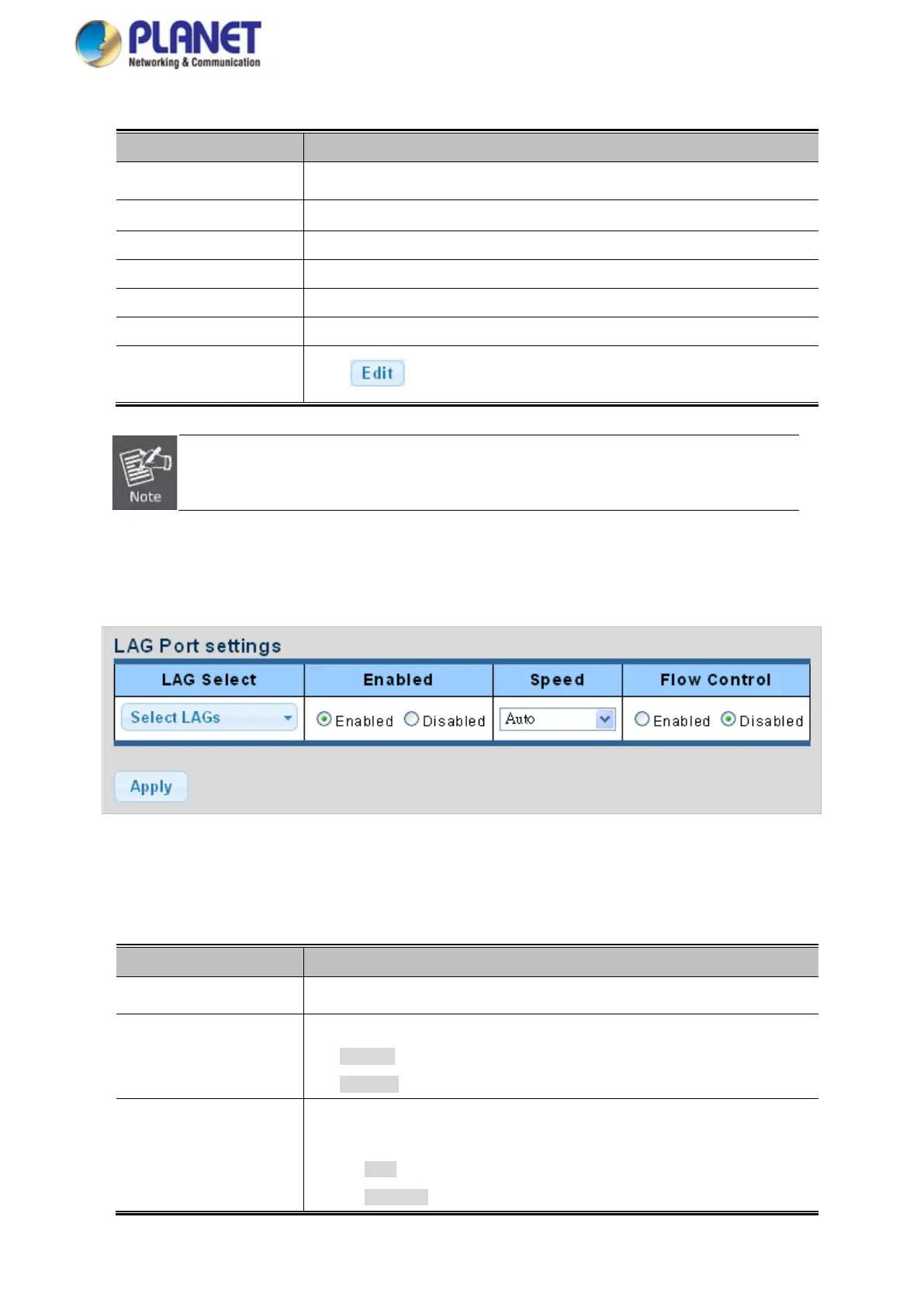

This page allows setting configuration for each LAG. The LAG Port setting screens in Figure 4-4-6 & Figure 4-4-7 appear.
Figure 4-4-6 LAG Port Setting Information Page Screenshot
The page includes the following fields:
Object Description
• LAG Select
Select LAG number from this drop-down list.
• Enable
Indicates the LAG state operation. Possible states are:
Enabled - Start up the LAG manually.
Disabled – Shut down the LAG manually.
• Speed
Select any available link speed for the given switch port. Draw the menu bar to
select the mode.
Auto – Set up Auto negotiation.
Auto-10M – Set up 10M Auto negotiation.
