User’s Manual of WGS Managed Series

2.1.3 Physical Dimensions

WGS-804HPT

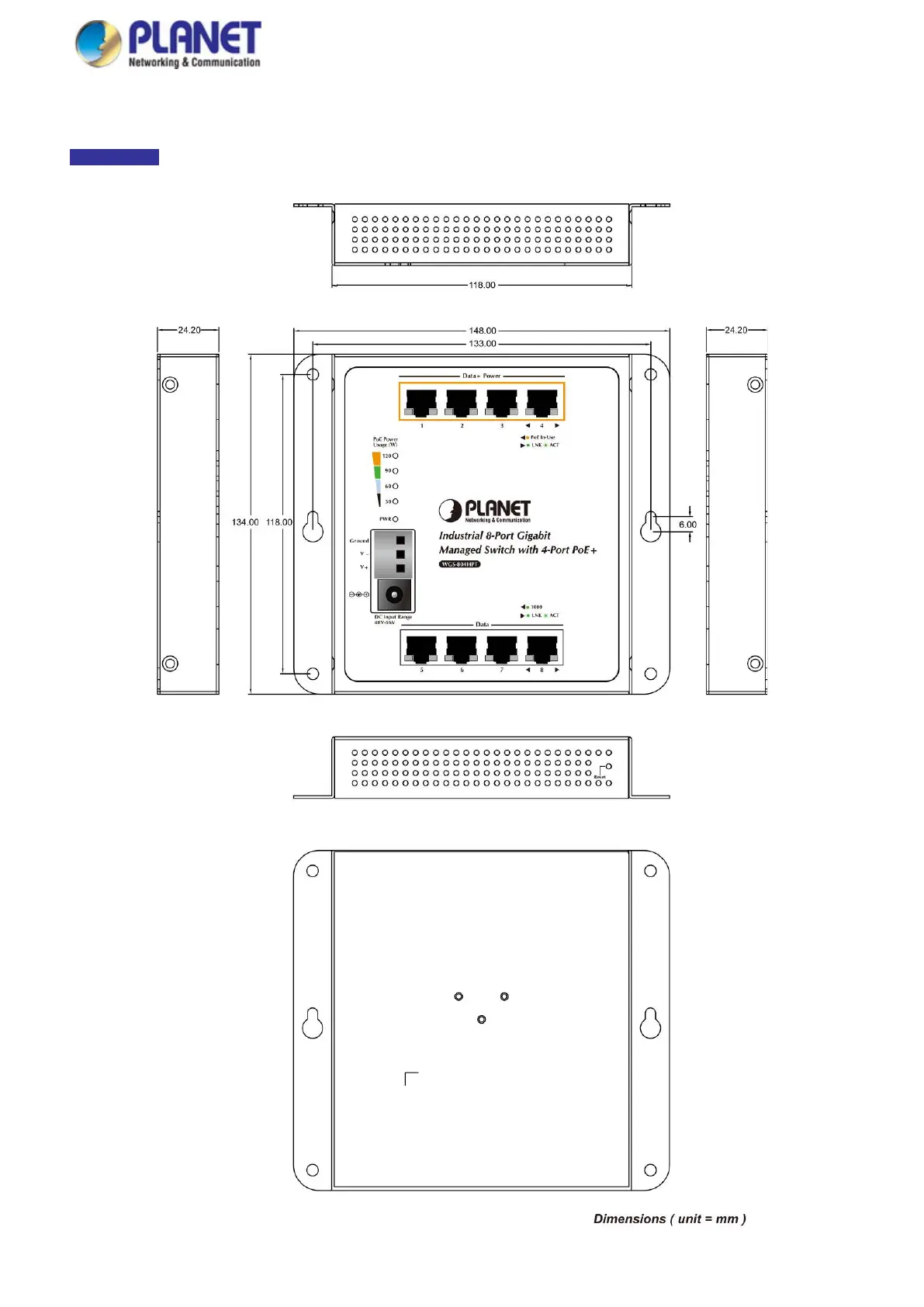

 Dimensions (W x D x H) : 148 x 25 x 134mm
