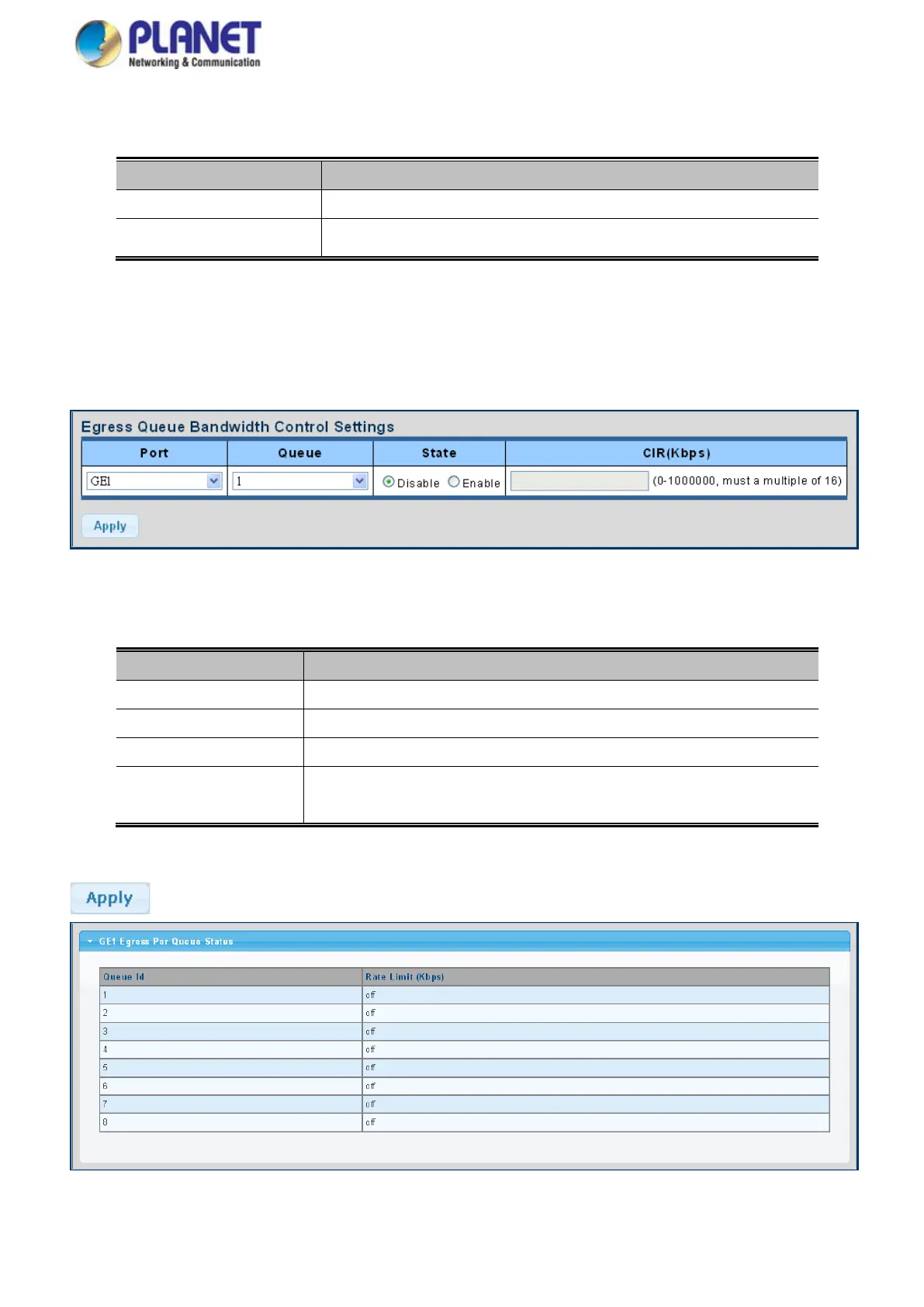

User’s Manual of WGS Managed Series
216
Figure 4-8-20 Egress Bandwidth Control Status Page Screenshot
The page includes the following fields:
Object Description
• Port
The switch port number of the logical port
• Egress Rate Limit (Kbps)
Display the current egress rate limit
4.8.4.3 Egress Queue
The Egress Queue Bandwidth Control Settings and Status screens in Figure 4-8-21 & Figure 4-8-22 appear.
Figure 4-8-21 Egress Queue Bandwidth Settings Page Screenshot
The page includes the following fields:
Object Description
• Port
Select port number from this drop-down list
• Queue
Select queue number from this drop-down list
• State
Enable or disable the port rate policer. The default value is "Disabled".
• CIR (Kbps)
Configure the CIR for the port policer. The default value is "unlimited". Valid
values are in the range 0 to 1000000.
Buttons
: Click to apply changes.
Figure 4-8-22 Egress Queue Status Page Screenshot
