4.8.5.4 Telephony OUI Port Setting
The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN, then the switch can classify and schedule network
traffic. It is recommended that there be two VLANs on a port - one for voice, one for data. Before connecting the IP device to the
switch, the IP phone should configure the voice VLAN ID correctly. It should be configured through its own GUI. The Telephony
OUI MAC Setting screens in Figure 4-8-27 & Figure 4-8-28 appear.

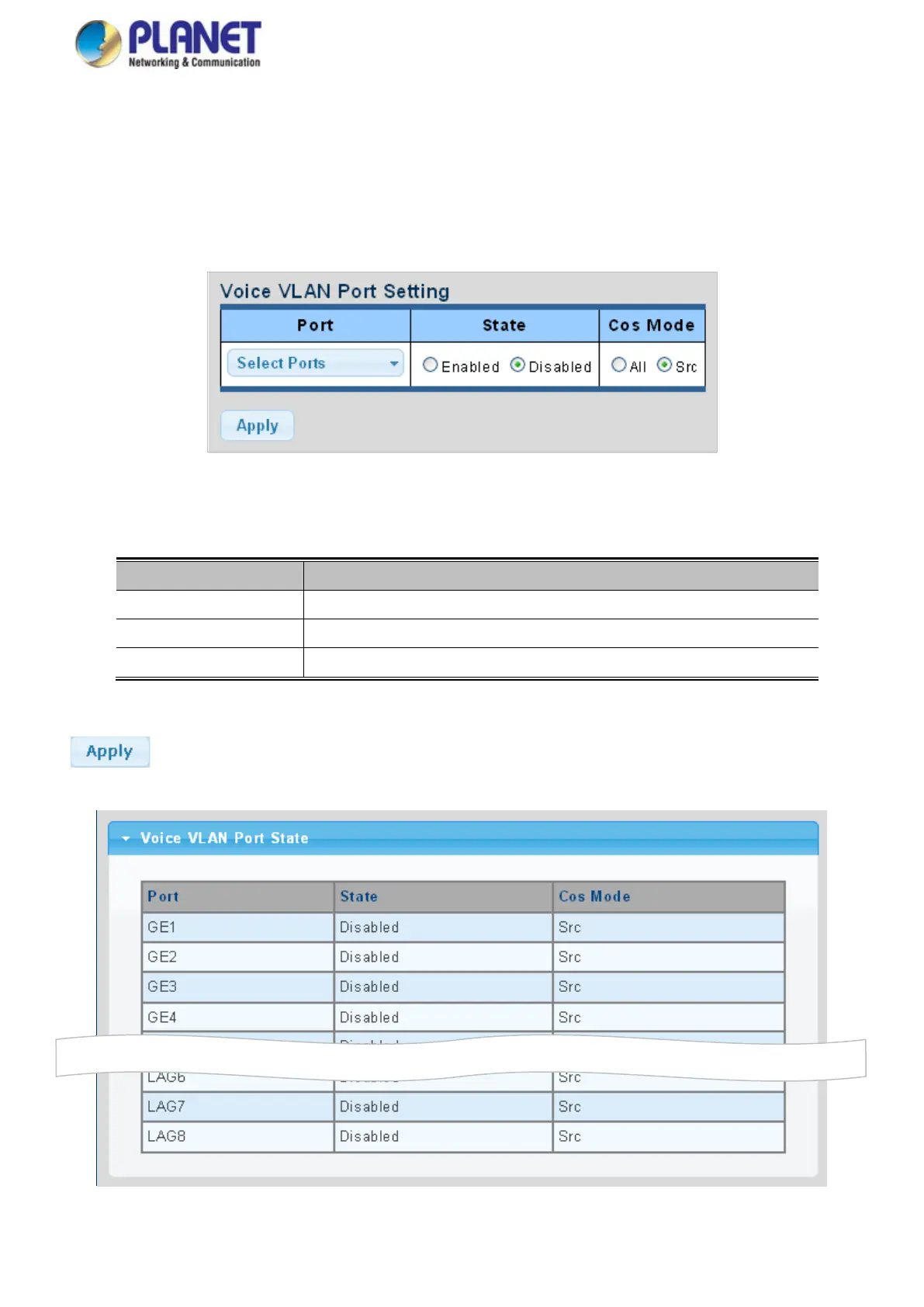

Figure 4-8-27 Voice VLAN Port Setting Page Screenshot
The page includes the following fields:
Object Description
• Port
Select port number from this drop-down list
• State
Enable or disable the voice VLAN port setting. The default value is "Disabled".
• CoS Mode
Select the current CoS mode
Buttons
: Click to apply changes.
Figure 4-8-28 Voice VLAN Port State Page Screenshot
