User’s Manual of WGS Managed Series
4.15.3 Power over Ethernet Configuration
This section allows the user to inspect and configure the current PoE configuration setting as screen in Figure 4-15-2
appears.

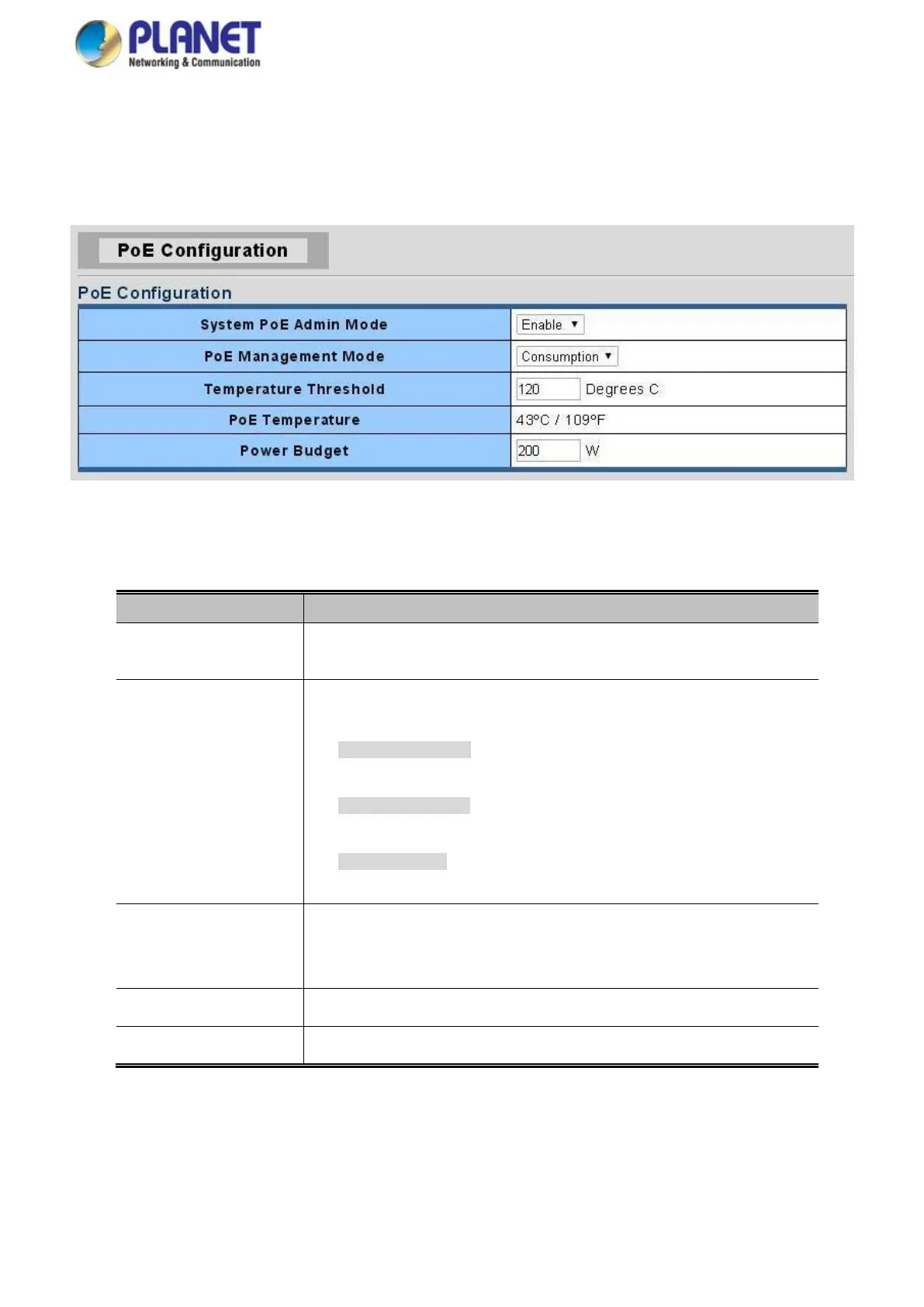

Figure 4-15-2 PoE Configuration Screenshot
The page includes the following fields:
Object Description
• System PoE Admin
Mode
Allows user to enable or disable PoE function. It will cause all of PoE ports to
supply or not to supply power.
• PoE Management
Mode
There are six modes for configuring how the ports/PDs may reserve power and
when to shut down ports.
Classification mode: The system reserves PoE power to PD according to
PoE class level.
Consumption mode: The system offers PoE power according to PD real
power consumption.
Allocation mode: Users allow to assign how much PoE power to each port
and the system will reserve PoE power to PD.
• Temperature
Threshold
Allows setting over temperature protection threshold value. If the system
temperature is overly high, the system will lower the total PoE power budget
automatically.
• PoE Temperature
Display the PoE Chip Temperature
• Power Budget
Allows user to configure PoE power budget.
