User’s Manual of WGS Managed Series

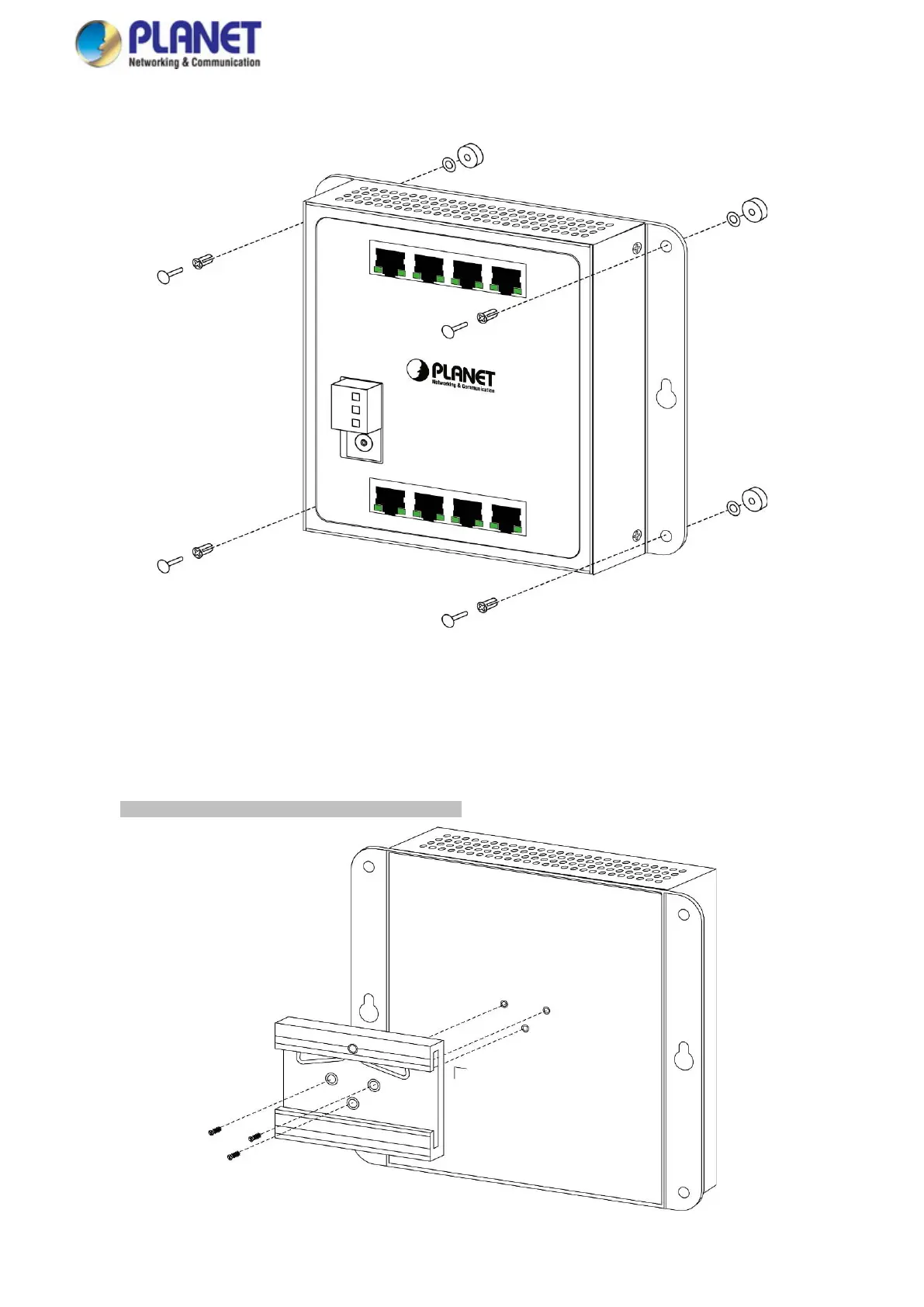

B. To install the Wall-mount Managed Switch on a magnetic surface, simply follow the following diagram:
2.2.2 DIN-rail Mount Installation
The DIN-rail kit is included in the package. When the wall-mount application for the Wall-mount Managed Switch needs to be
replaced with DIN-rail application, please refer to the following figures to screw the DIN-rail on the Wall-mount Managed Switch.
To hang up the Wall-mount Managed Switch, follow the steps below:
Step 1: Screw the DIN-rail on the Wall-mount Managed Switch.
