User’s Manual of WGS Managed Series
4.7.7.1 Multicast Profile Setting
The Add Profile and Profile Status screens in Figure 4-7-37 & Figure 4-7-38 appear.

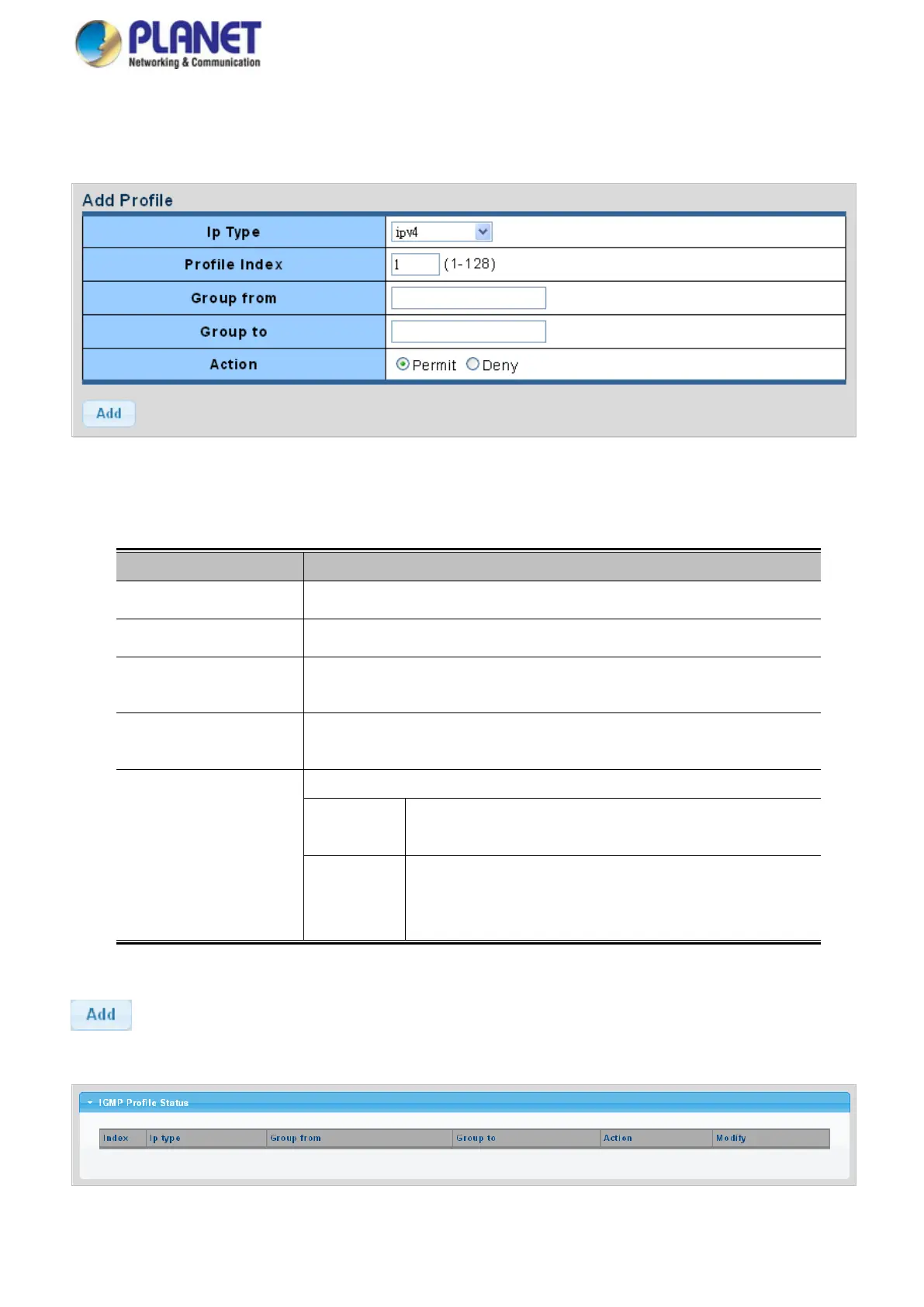

Figure 4-7-37 Add Profile Setting Page Screenshot
The page includes the following fields:
Object Description
• IP Type
Select IPv4 or IPv6 from this drop-down list
• Profile Index
Indicates the ID of this particular profile
• Group from
Specifies multicast groups to include in the profile. Specify a multicast group
range by entering a start IP address.
• Group to
Specifies multicast groups to include in the profile. Specify a multicast group
range by entering an end IP address.
• Action
Sets the access mode of the profile; either permit or deny.
- Permit Multicast join reports are processed when a multicast group falls
within the controlled range.
- Deny When the access mode is set to, multicast join reports are only
processed when the multicast group is not in the controlled
range.
Buttons
: Click to add multicast profile entry.
Figure 4-7-38 IGMP/MLD Profile Status Page Screenshot
