4.10.2 MAC-based ACE
An ACE consists of several parameters. Different parameter options are displayed depending on the frame type that you
selected. The MAC-based ACE screen in Figure 4-10-3 & Figure 4-10-4 appears.

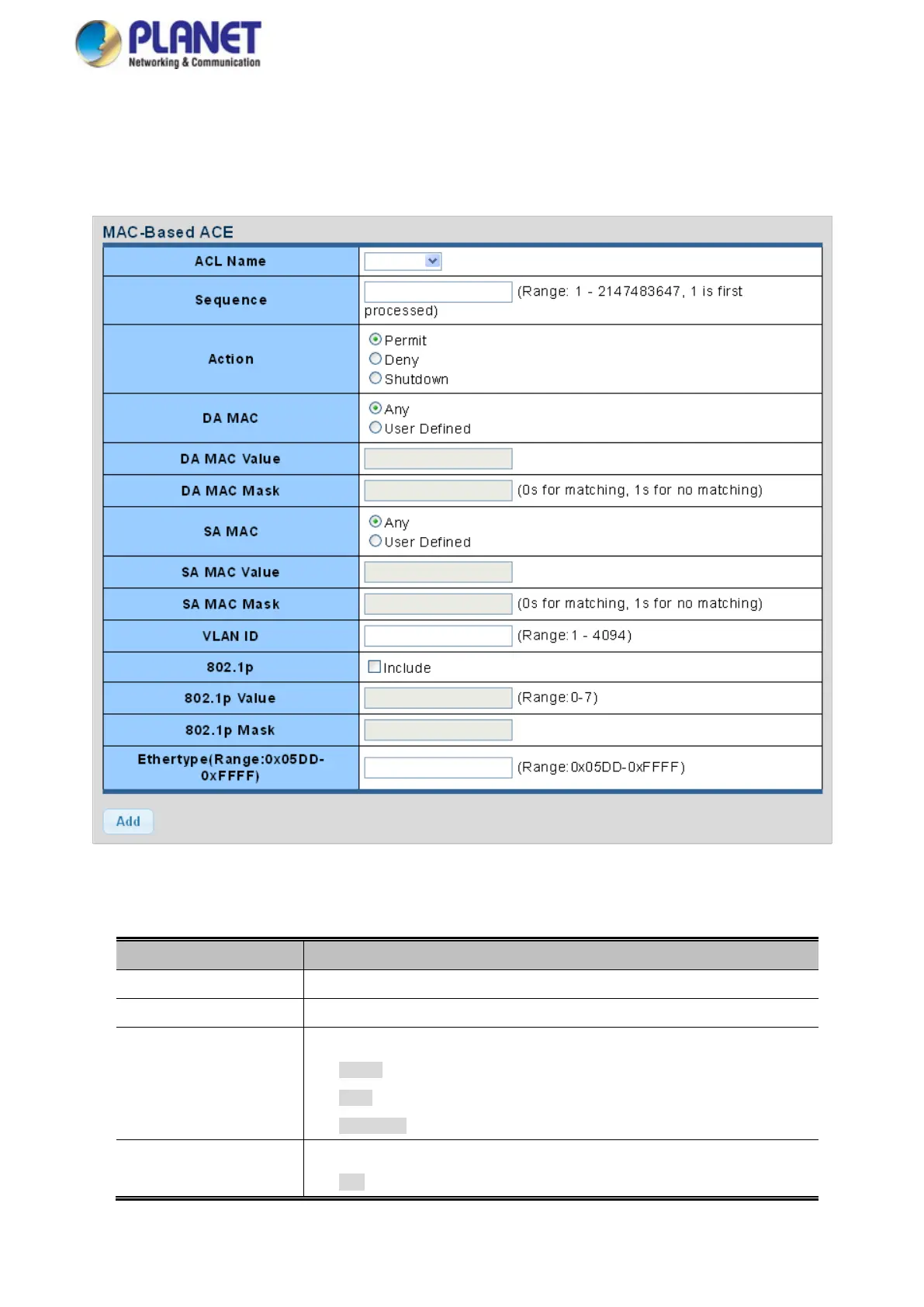

Figure 4-10-3 MAC-based ACE Page Screenshot
The page includes the following fields:
Object Description
• ACL Name
Select ACL name from this drop-down list
• Sequence
Set the ACL sequence
• Action
Indicates the forwarding action of the ACE.
 Permit: Frames matching the ACE may be forwarded and learned.
 Deny: Frames matching the ACE are dropped.
 Shutdown: Port shutdown is disabled for the ACE.
• DA MAC
Specify the destination MAC filter for this ACE.
 Any: No DA MAC filter is specified.
