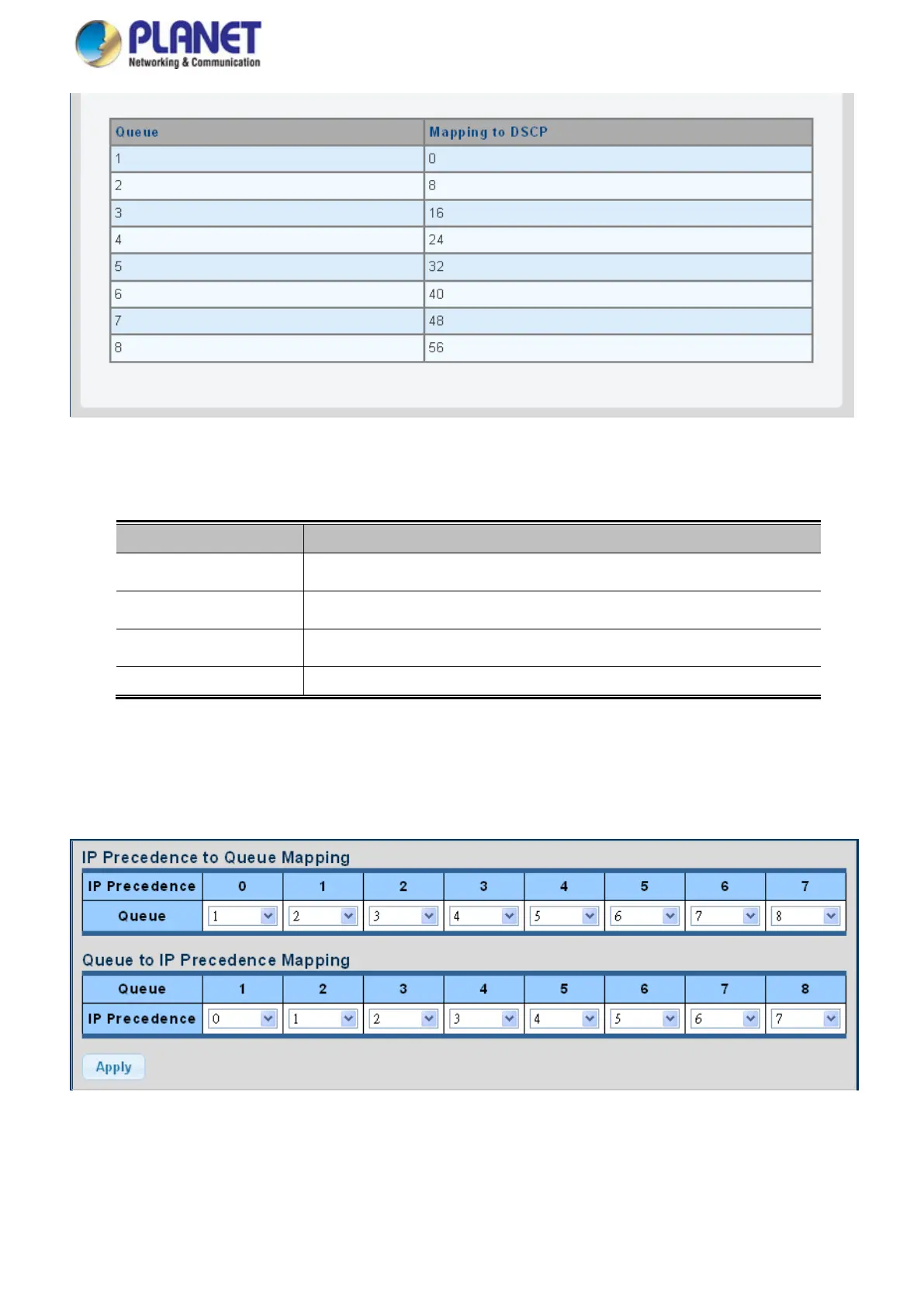

Figure 4-8-10 DSCP Mapping Page Screenshot
The page includes the following fields:
Object Description
• DSCP
Display the current CoS value
• Mapping to Queue
Display the current mapping to queue
• Queue
Display the current queue value
• Mapping to DSCP
Display the current mapping to DSCP
4.8.2.6 IP Precedence Mapping
The IP Precedence to Queue and Queue to IP Precedence Mapping screens in Figure 4-8-11 & Figure 4-8-12 appear.
Figure 4-8-11 IP Precedence to Queue and Queue to IP Precedence Mapping Page Screenshot
