2.1.2 LED Indications
The front panel LEDs indicates instant status of port links, data activity and system power; it helps monitor and troubleshoot
when needed. Figure 2-1-2a~2-1-2d show the LED indications of these Managed Switches.
WGS-804HPT LED Indication

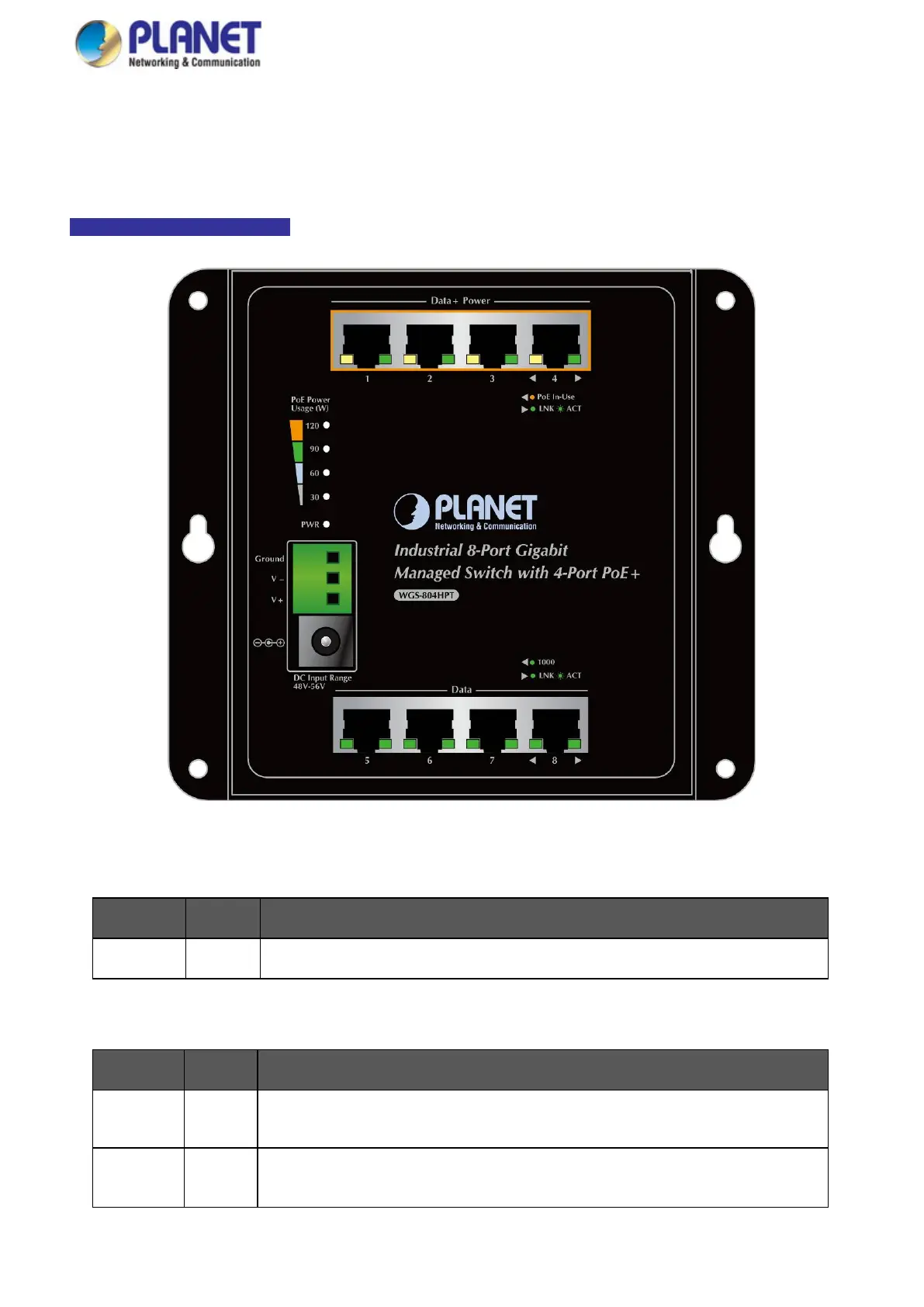

Figure 2-1-2a WGS-804HPT LED Panel
■ System
LED Color Function
PWR Green
Lights to indicate that the Switch has power.
■ PoE 10/100/1000BASE-T Interfaces (Port-1 to Port-4)
LED Color Function
LNK/ACT Green
Lights: To indicate the link through that port is successfully established.
Blinks: To indicate that the switch is actively sending or receiving data over that port.
PoE Amber
Lights: To indicate the port is providing DC in-line power.
Off: To indicate the connected device is not a PoE Powered Device (PD)
