User’s Manual of WGS Managed Series
285
 User Defined: If you want to filter a specific destination MAC address with
this ACE, choose this value. A field for entering a DA MAC value appears.
• DA MAC Value
When "User Defined" is selected for the DA MAC filter, you can enter a specific
destination MAC address. The legal format is "xx-xx-xx-xx-xx-xx". A frame that
hits this ACE matches this DA MAC value.
• DA MAC Mask
Specify whether frames can hit the action according to their sender hardware
address field (SHA) settings.
 0: ARP frames where SHA is not equal to the DA MAC address.
 1: ARP frames where SHA is equal to the DA MAC address.
• SA MAC
Specify the source MAC filter for this ACE.
 Any: No SA MAC filter is specified.
 User Defined: If you want to filter a specific source MAC address with this
ACE, choose this value. A field for entering a SA MAC value appears.
• SA MAC Value
When "User Defined" is selected for the SA MAC filter, you can enter a specific
source MAC address. The legal format is "xx-xx-xx-xx-xx-xx". A frame that hits
this ACE matches this SA MAC value.
• SA MAC Mask
Specify whether frames can hit the action according to their sender hardware
address field (SHA) settings.
 0: ARP frames where SHA is not equal to the SA MAC address.

1
: ARP frames where SHA is equal to the SA MAC address.
• VLAN ID
Indicates the ID of this particular VLAN
• 802.1p
Include or exclude the 802.1p value
• 802.1p Value
Set the 802.1p value
• 802.1p Mask
 0: where frame is not equal to the 802.1p value.
 1: where frame is equal to the 802.1p value.
• EtherType
(Range:0x05DD –
0xFFFF)
You can enter a specific EtherType value. The allowed range is 0x05DD to
0xFFFF. A frame that hits this ACE matches this EtherType value.
Buttons
: Click to add ACE list.

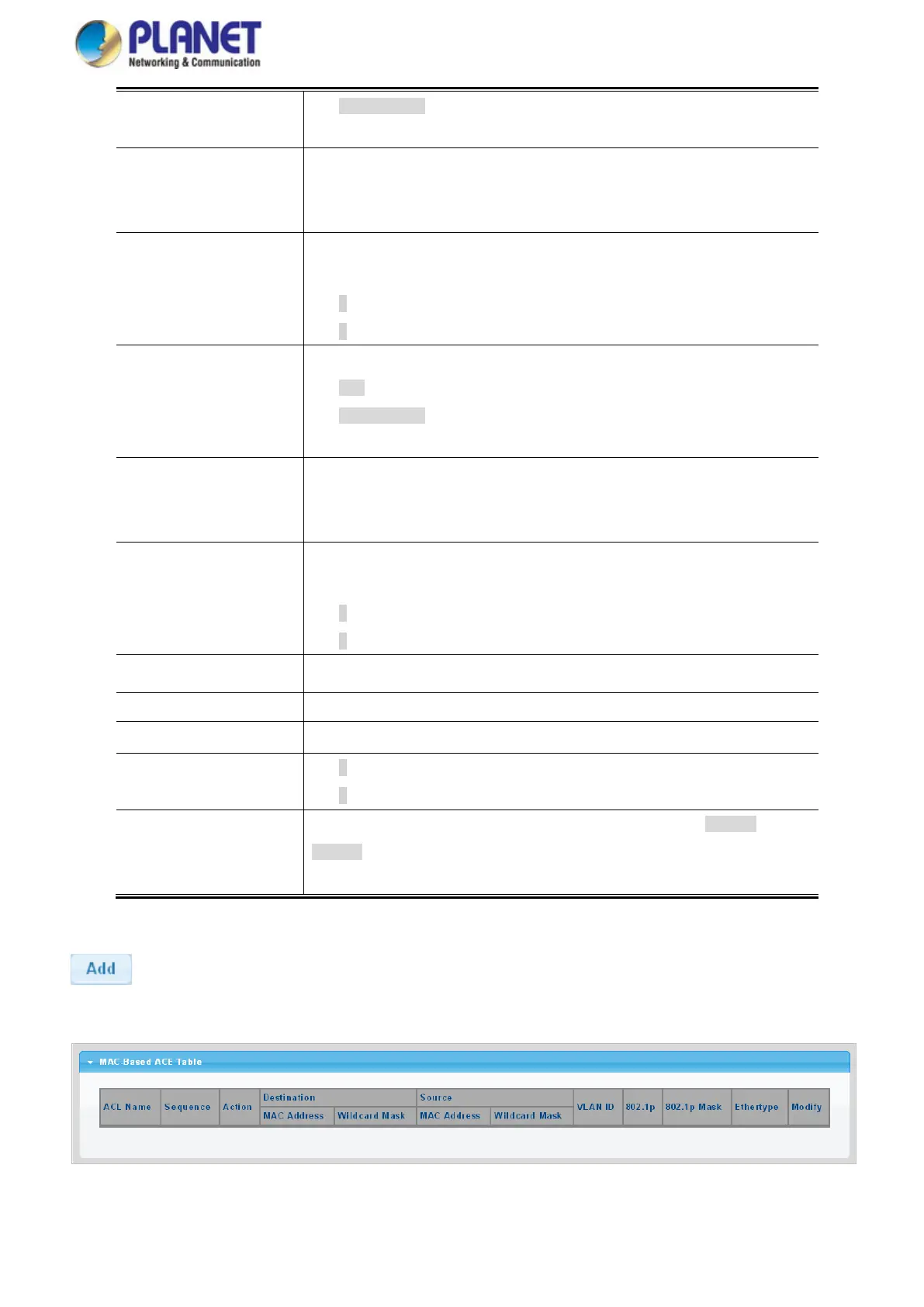

Figure 4-10-4 MAC-based ACE Table Page Screenshot
