User’s Manual of WGS Managed Series

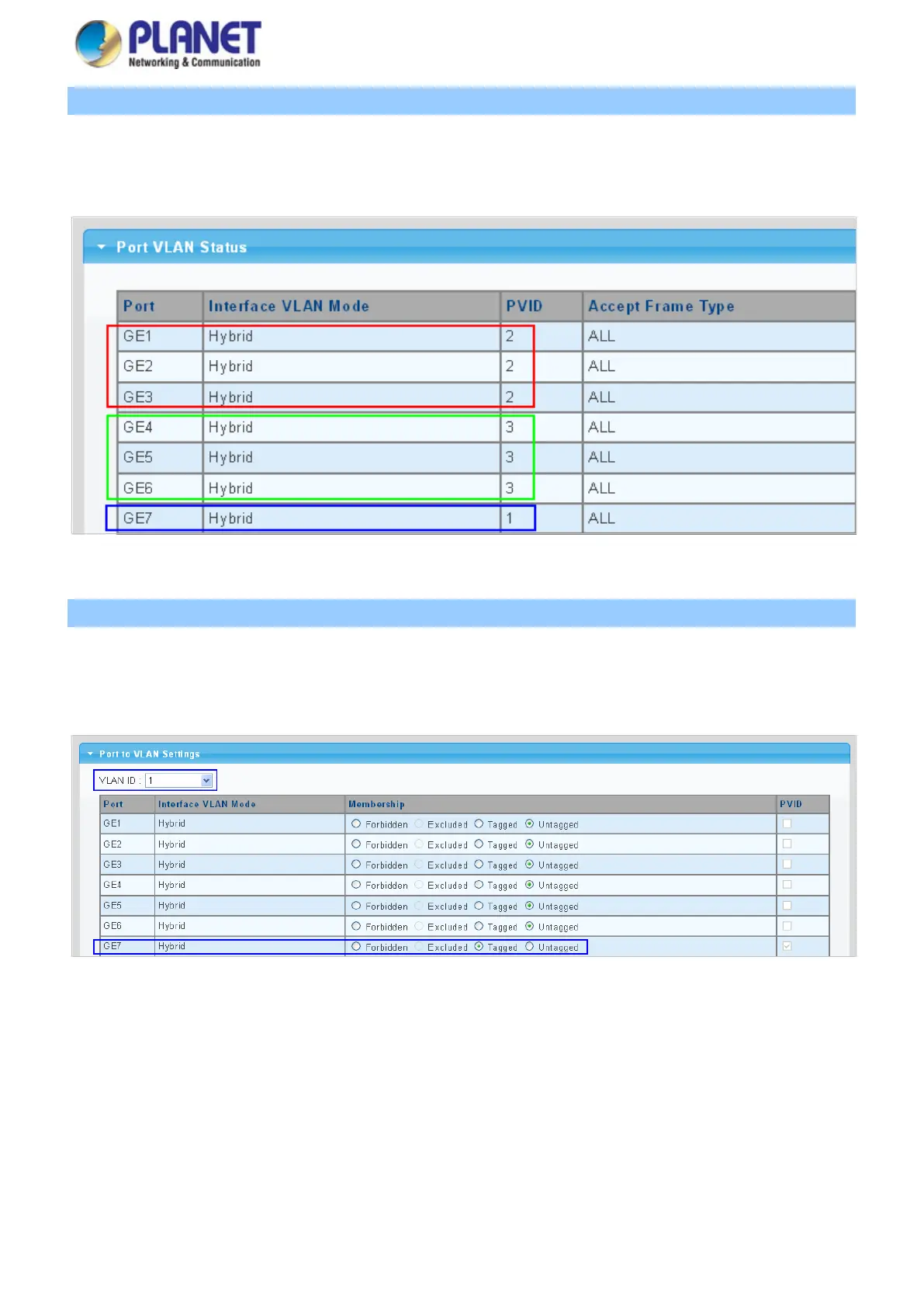

2. Assign VLAN mode and PVID to each port:
Port-1,Port-2 and Port-3 : VLAN Mode = Hybrid, PVID=2
Port-4,Port-5 and Port-6 : VLAN Mode = Hybrid, PVID=3
Port-7 : VLAN Mode = Hybrid, PVID=1
3. Assign Tagged/Untagged to each port:
VLAN ID = 1:
Port-1~6 = Untagged,
Port -7 = Excluded.
VLAN ID = 2:
Port-1 & 2 = Untagged,
Port-3 & 7 = Tagged,
Port -4~6 = Excluded.
