The page includes the following fields:
Object Description
• Port
The switch port number of the logical port
• State
Display the current LLDP status
• Selected Optional
TLVs
Display the current selected optional TLVs
The VLAN Name TLV VLAN Selection and LLDP Port VLAN TLV Status screens in Figure 4-12-5 & Figure 4-12-6 appear.

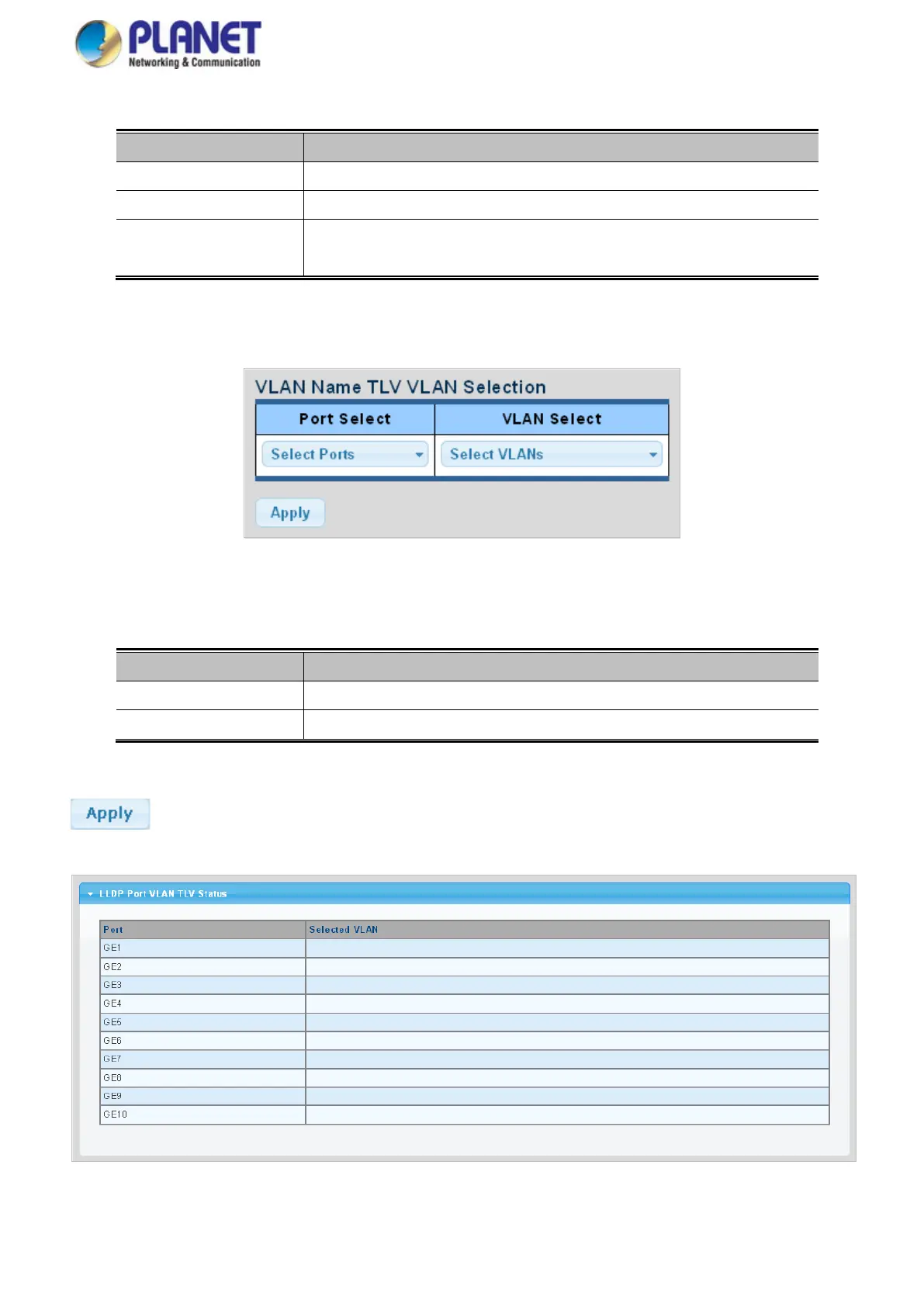

Figure 4-12-5 VLAN Name TLV Selection Page Screenshot
The page includes the following fields:
Object Description
• Port Select
Select port from this drop-down list.
• VLAN Select
Select VLAN from this drop-down list.
Buttons
: Click to apply changes.
Figure 4-12-6 LLDP Port VLAN TLV Status Page Screenshot
