Planmeca ProMax Technical Manual

Chapter E - C-ARM AND IMAGING ARM
E-2 Planmeca ProMax
REQUIRED TOOLS
Technical Manual

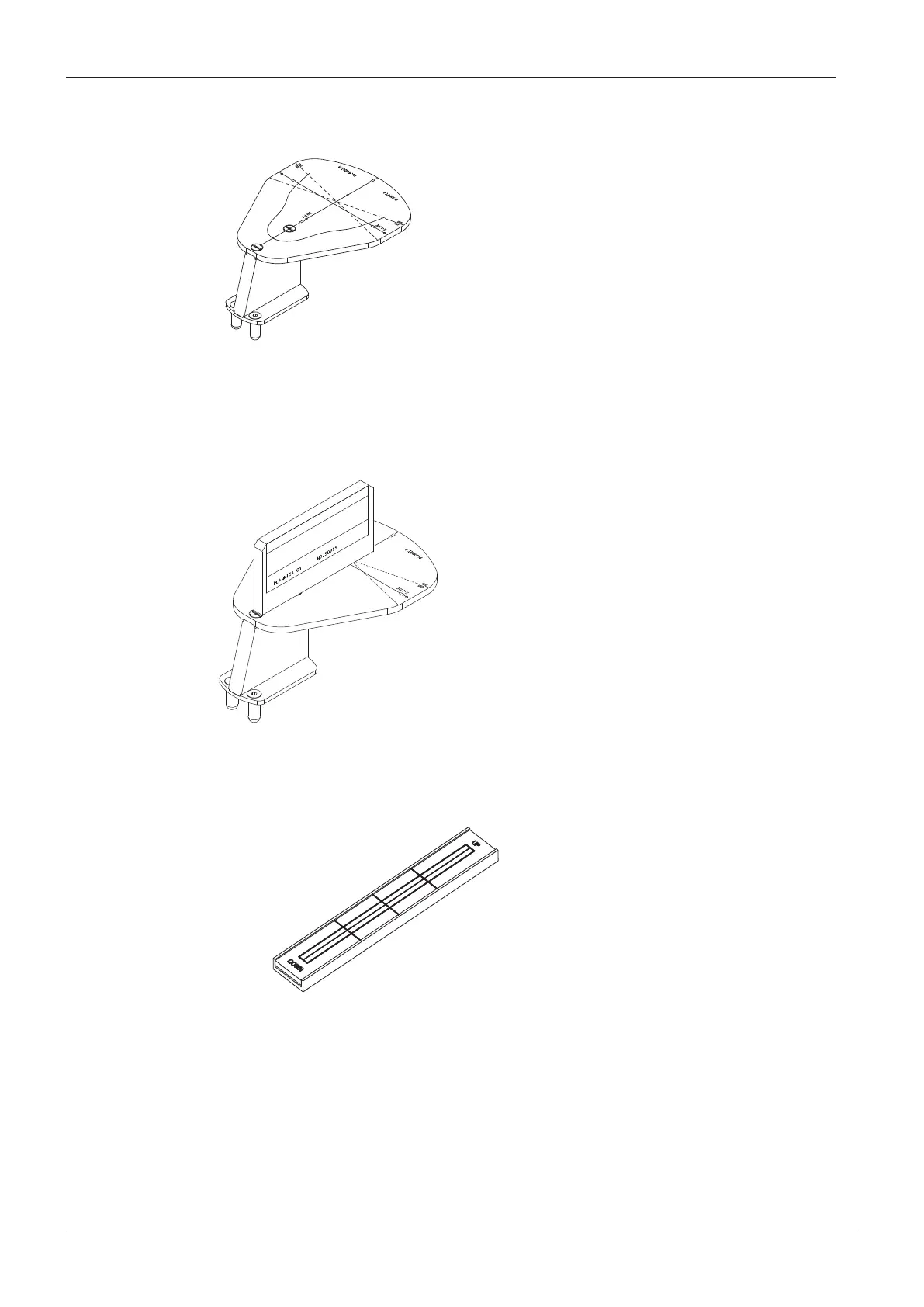

• Ball phantom (part number 10004011). For checking the position of the patient positioning
mechanism and the positioning lights.
Figure 3
• Frankfort plane alignment tool (part number 50977). Used with the ball phantom for
checking the position of the Frankfort plane light.
Figure 4
• Beam alignment tool (part number 50972). For checking the position of the panoramic X-
ray beam.
Figure 5
Ballfantom.eps
f2_phantom.eps
Beam_alignm_tool.eps

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
