Planmeca ProMax Technical Manual

Chapter E - C-ARM AND IMAGING ARM
Planmeca ProMax E-61
PROMAX 3D: ADJUSTMENTS & CALIBRATIONS
Technical Manual
3.2 Checking the connection between PCs and X-ray unit
Switch on the ProMax X-ray unit, Romexis PC and the Reconstruction PC.
ProMax checks
• Check that the Ethernet LINK LED on the Ethernet PCB is on.
• Check that you can ping the ProMax IP address from the Romexis PC to verify that the
TCP/IP connection works (executing the command “ping <ProMax IP address>”, e.g.
ping 192.168.0.130, see below).

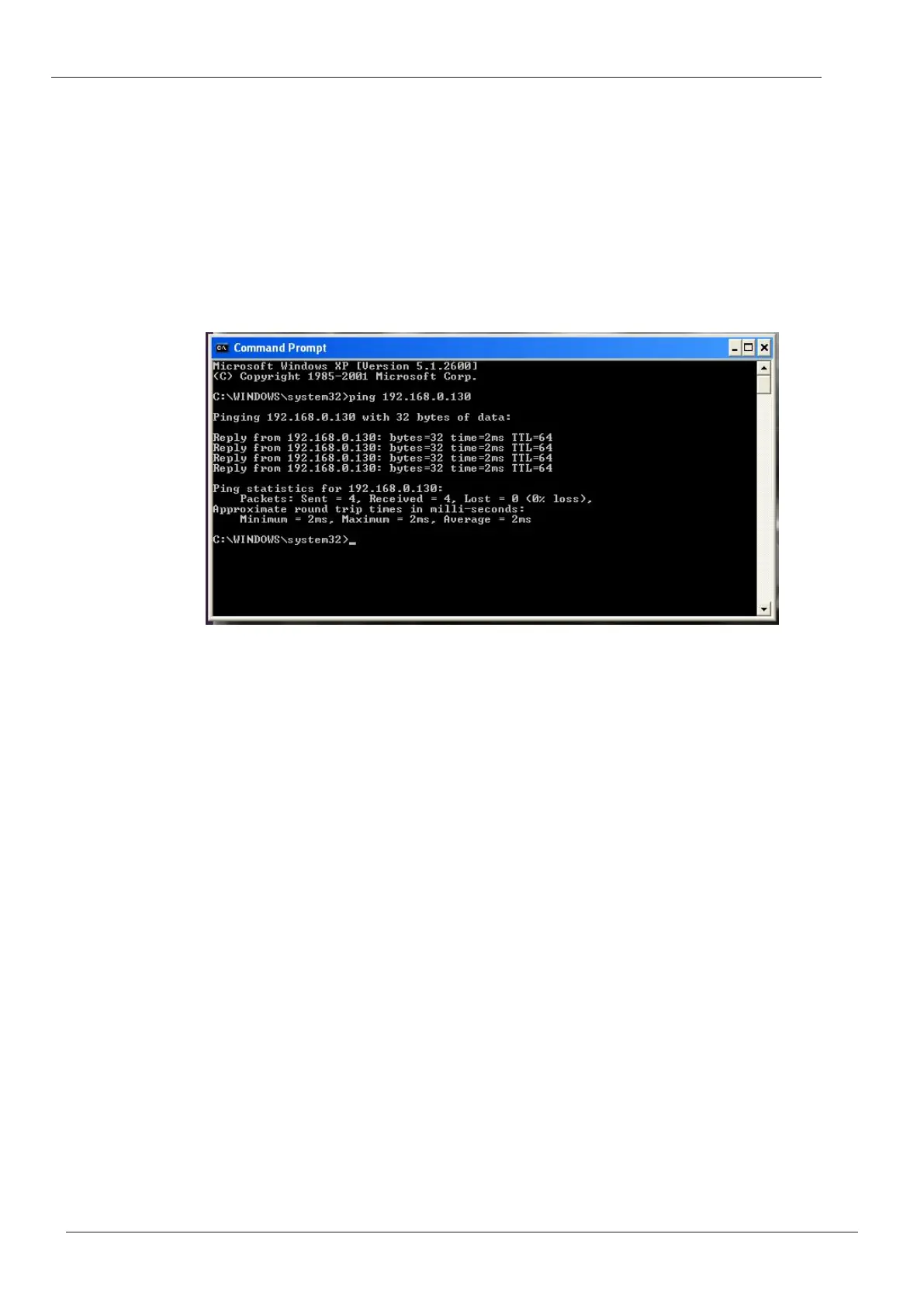

Figure 78
The ProMax sends a Reply packet in case the Ethernet link is up and running.
Reconstruction PC checks
• Check that you can ping the Reconstruction PC IP address from the Romexis PC to verify
that the TCP/IP connection works.
Connections
• When the Romexis program is ready for the exposure and the ProMax X-ray unit is in
Ready state check that:
- The 3D sensor head indicator light is on.
- The Ethernet and Sensor ACT LEDs on the Ethernet PCB are blinking.
- The Sensor LINK LED on the Ethernet PCB is blinking.
• Check that you can ping the ProMax 3D sensor IP address from the Romexis PC when the
3D sensor head indicator light is on.

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
