Planmeca ProMax Technical Manual

Chapter H - CEPHALOSTAT
Planmeca ProMax H-19
ADJUSTMENTS AND CALIBRATIONS
Technical manual
1.9 Calibrating the C-arm position
Select kilovolt and milliampere values high enough to enable the radiation beam to be seen in
a darkened room. The actual values will depend on how dark the room is.

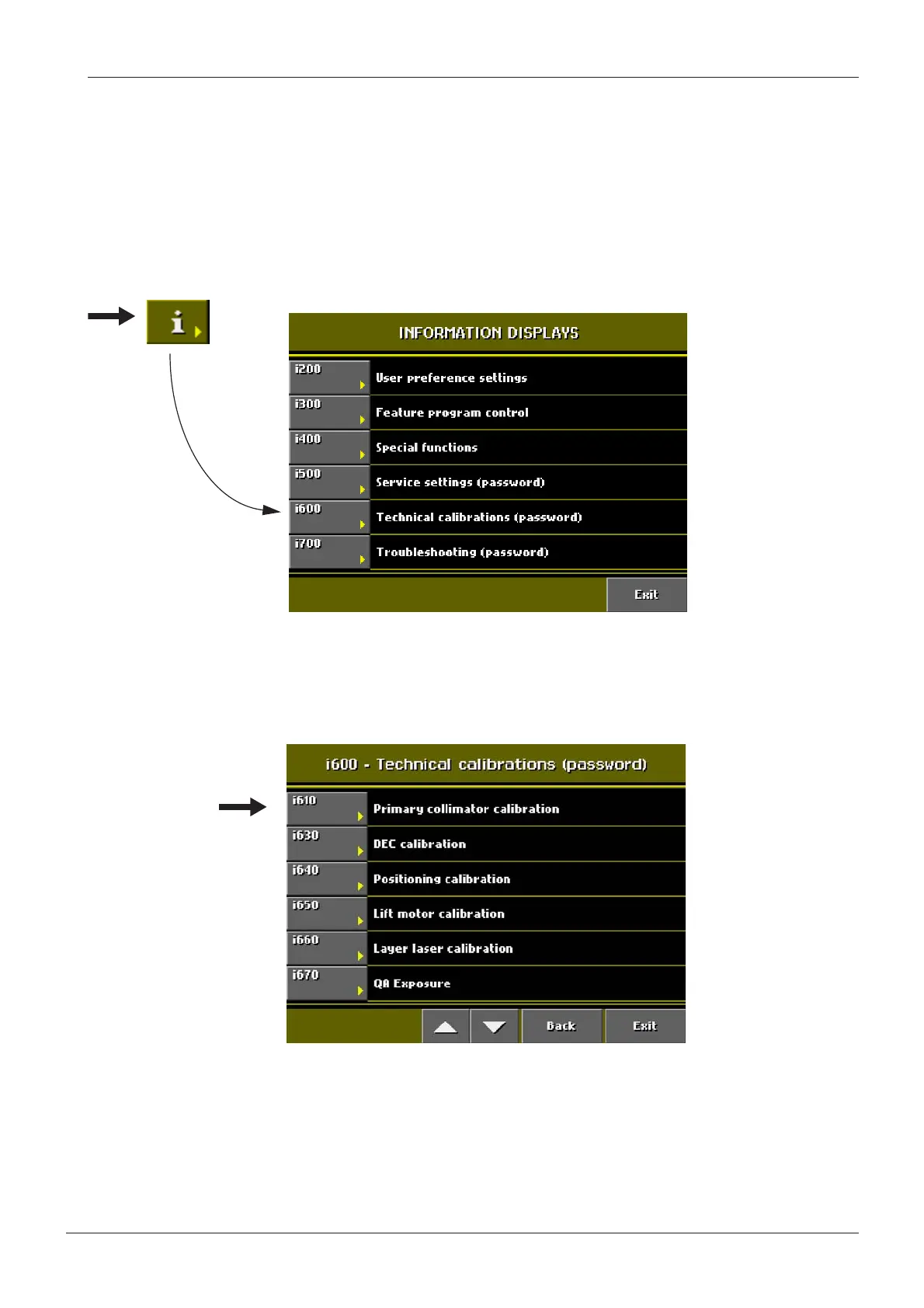

To enter the calibration mode first touch the i field on the Main display. Select Technical cali-
brations (i600) from the list on the display. The password to the Technical calibrations mode
is asked when the Technical calibrations mode is entered for the first time after switching the
unit on. The password is 1701.
Figure 30
From the list on the i600 display that appears select Primary collimator calibration (i610).
Figure 31

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
