Planmeca ProMax Technical Manual

Chapter H - CEPHALOSTAT
H-16 Planmeca ProMax
ADJUSTMENTS AND CALIBRATIONS
Technical manual
1.8 Cephalostat head support position adjustment
Adjusting the ear posts in horizontal direction
Switch the unit off. Remove the cephalostat housings according to the instructions given in
section 4 “REMOVING THE HOUSINGS AND COVERS” on page H-64.
Loosen the locking screw of the adjustment flange. Rotate the head support around its verti-
cal axis to adjust the ear posts in horizontal direction as follows.
Loosen the head support attachment screws (Fig. 27, 1) and the alignment bar screw (Fig.
27, 2). Rotate the alignment bar until the head support is in correct position (Fig. 27, 3 and 4).

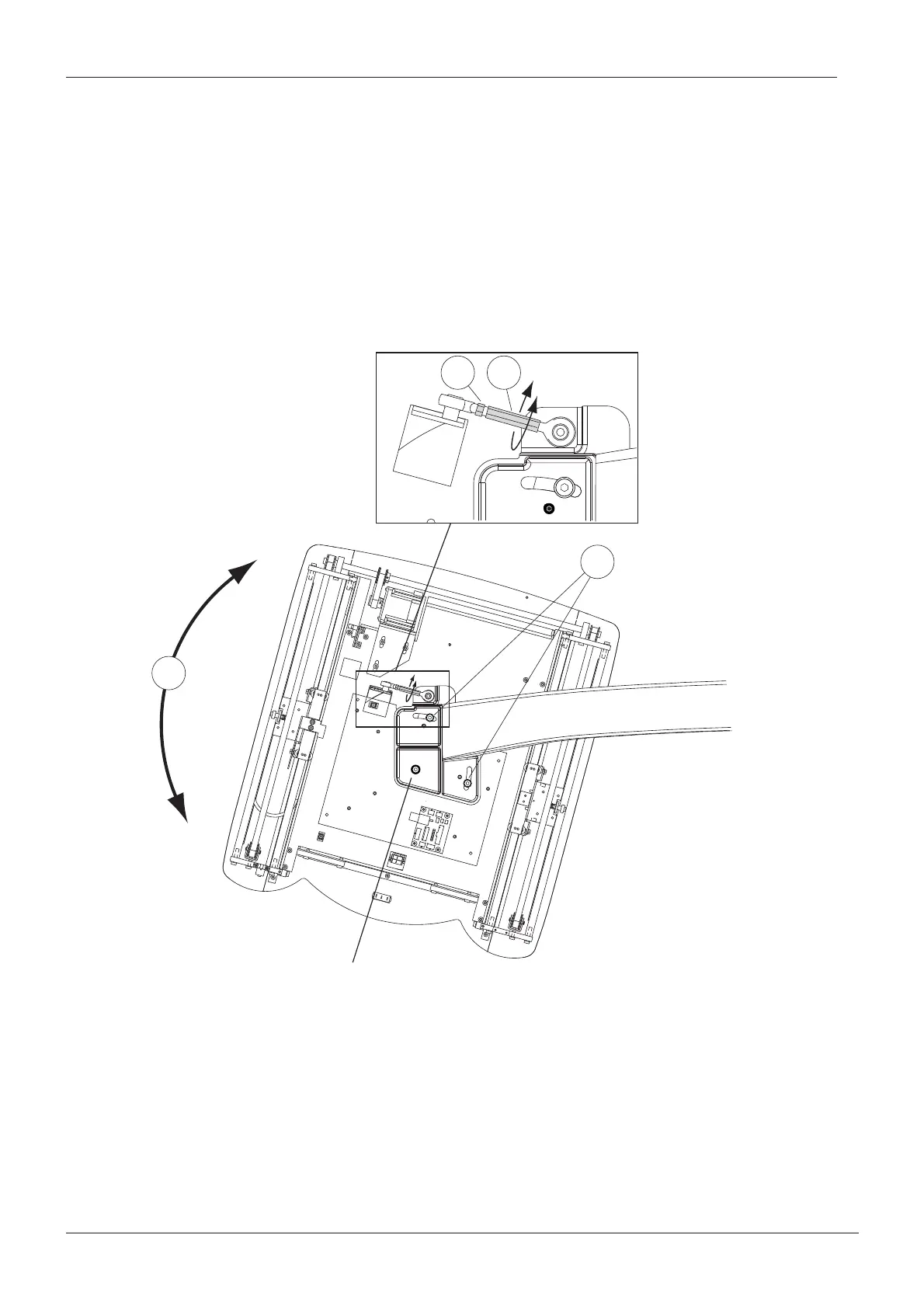

Figure 27 Adjusting the ear posts in horizontal direction
1
4
2 3
PXR_Adj_digiceph25.eps
Locking screw of the adjustment flange

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
