Chapter E - C-ARM AND IMAGING ARM
E-90 Planmeca ProMax
REPLACING THE SENSOR HEAD
Technical Manual
6.2 Sensor head with quick connector mechanism
Detaching the sensor head from the C-arm
NOTE The indicator light is lit when the Dimax3 sensor is in use . Removing the sensor head
when the indicator light is lit might harm the sensor or cause imag e data loss.
Push in the C-arm electrical connector located on the sensor head quick connector mecha-
nism. This will disconnect the electrical connection between the sensor head and C-arm.

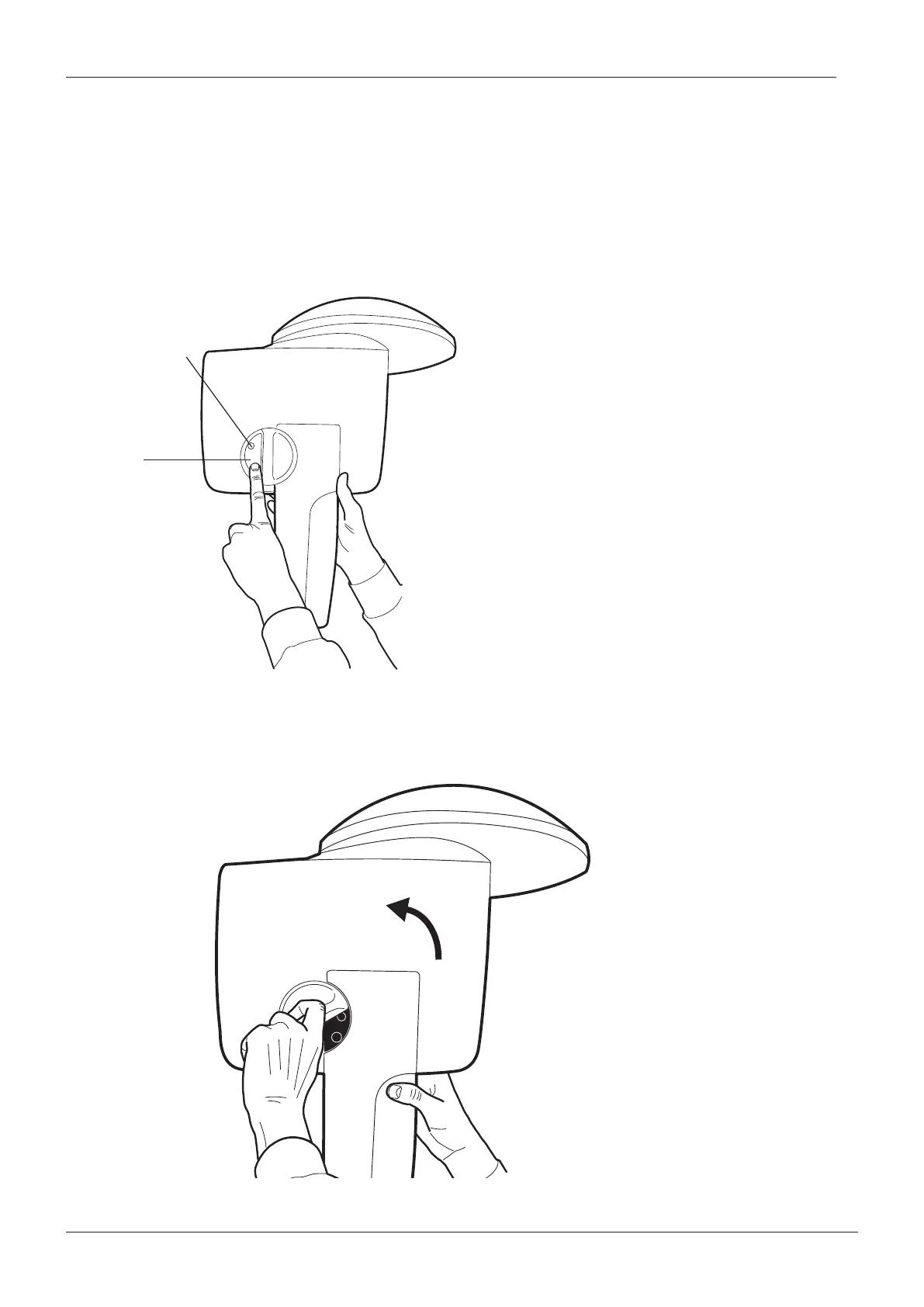

Figure 119
The locking knob can now be turned 180 degrees. This will release the sensor head locking
mechanism.
Figure 120
Sensor1.eps
Indicator light
C-arm electrical
connector
Sensor2.eps
