Planmeca ProMax Technical Manual

Chapter B - INFORMATION DISPLAYS
Planmeca ProMax B-29
SERVICE SETTINGS
Technical Manual
5.6 Configuration selftest
From the list of Service settings select Configuration selftest (i560).
Touch the Reset system configuration field if you wish to bring back the default exposure
values for the quick buttons that are shown on the Select kV/mA display.
The Clear exposure history field clears the Error history (i420) and Exposure statistics
(i430) counters.

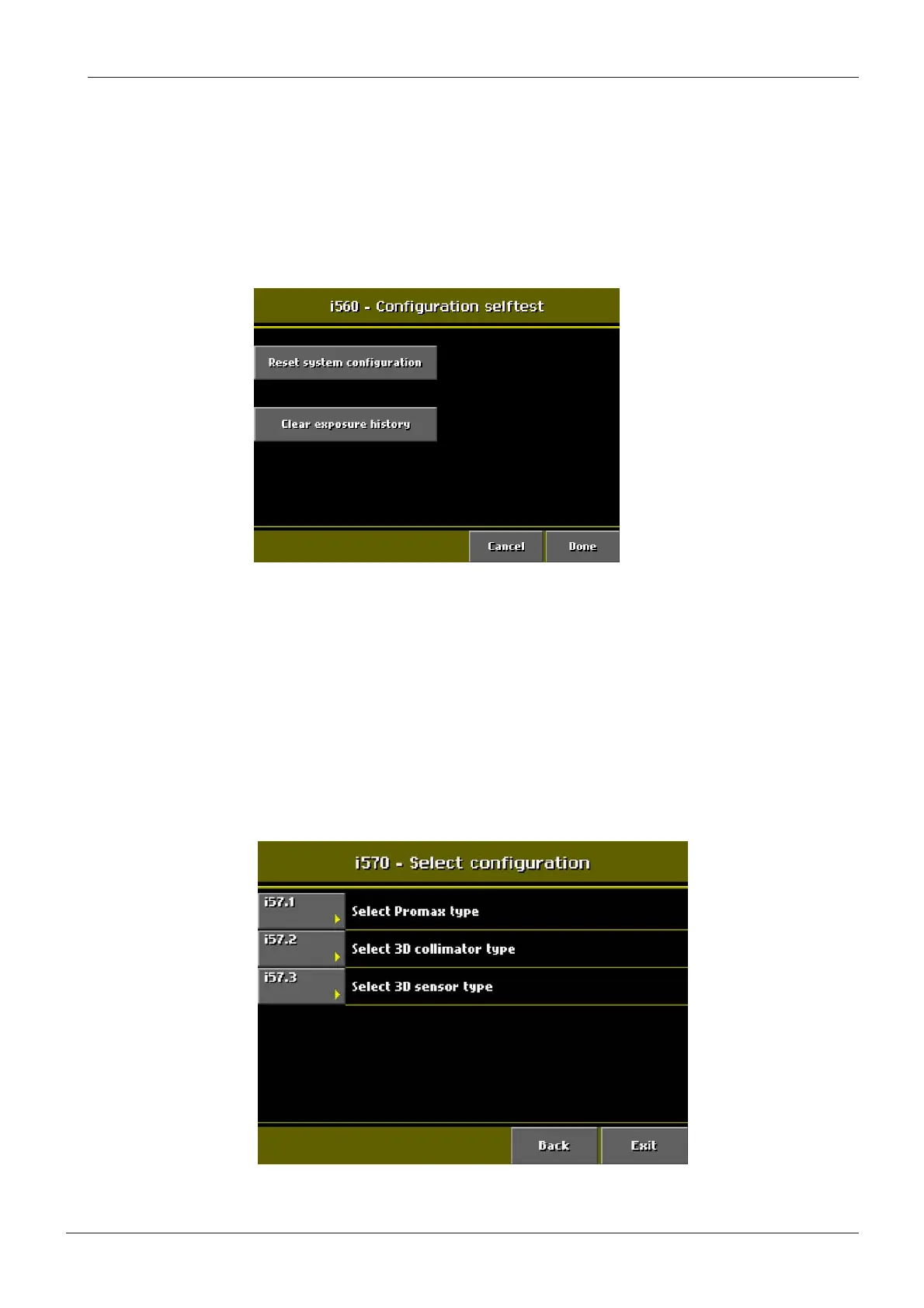

Figure 43
NOTE It is important to perform the Reset system configuration function in case a device(s)
has/have been added or removed from the X-ray unit.
5.7 Select configuration
NOTE This option will be shown only if a 3D license has been activated on display i310.
On the Service settings display, touch Select configuration (i570).
A display will appear where you can select the ProMax, collimator and sensor type.
Figure 44

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
