Planmeca ProMax Technical Manual

Chapter A - GENERAL & TECHNICAL DATA
A-16 Planmeca ProMax
PROMAX 3D: STRAY RADIATION MEASUREMENTS
Technical Manual
7.1 X-ray units with 3D sensor

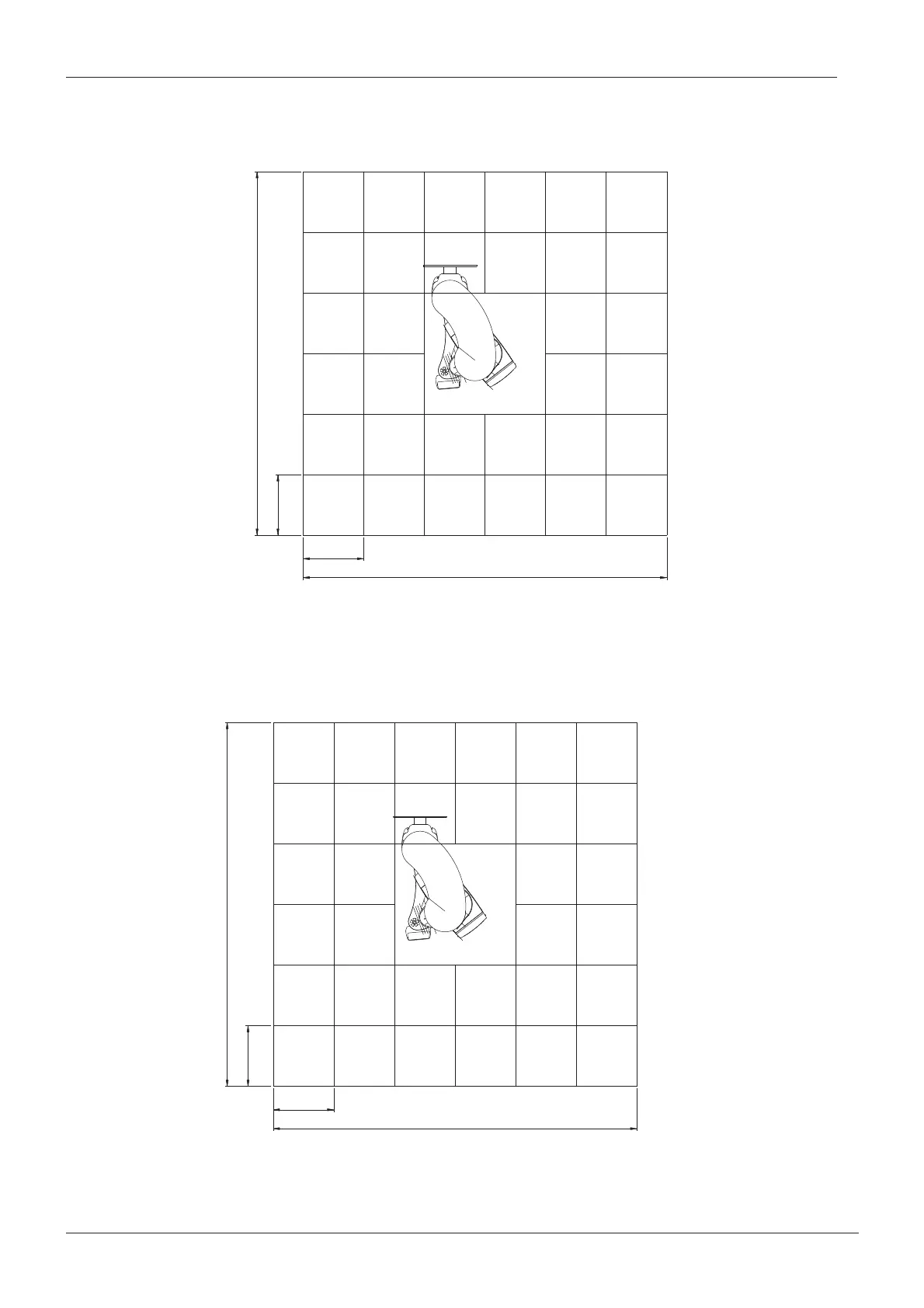

Figure 2 Stray radiation measurements with exposure values 84 kV and 16 mA,
high resolution
Figure 3 Stray radiation measurements with exposure values 84 kV and 16 mA,
normal resolution
3000mm
500mm
500mm
3000mm
9 1 12 25 19 12
14 25 3 69 35 16
16 36 44 20
11 25 62 25
91735783017
71216171711
High_resolution_84kV_16mA.eps
3000mm
500mm
500mm
3000mm
9 1 12 24 18 12
14 24 3 67 34 15
15 35 42 19
11 25 60 24
91733762917
61215161611
Normal_resolution_84kV_16mA.eps
