Planmeca ProMax Technical Manual

Chapter B - INFORMATION DISPLAYS
B-10 Planmeca ProMax
USER PREFERENCE SETTINGS
Technical Manual

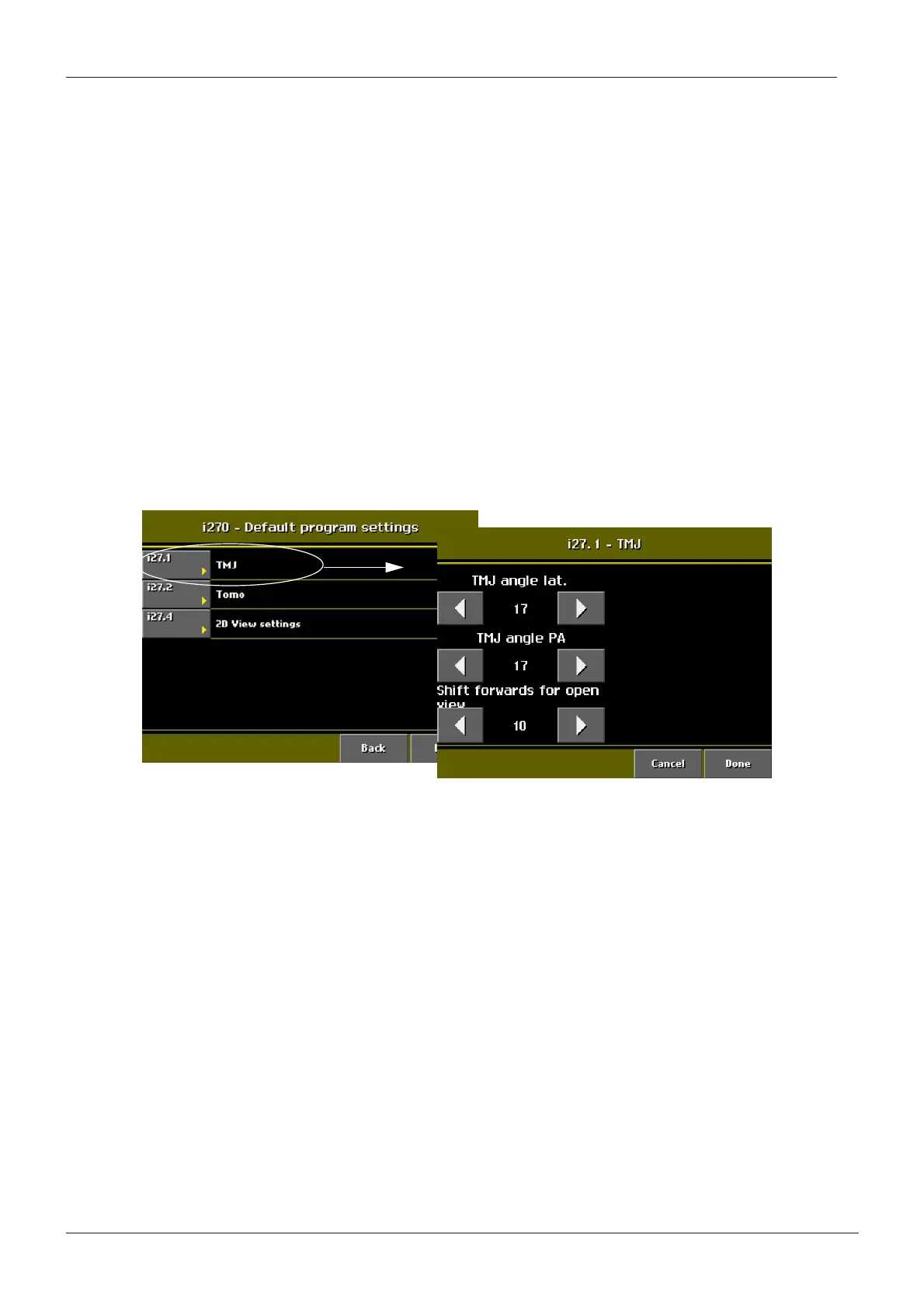

2.6 Default program settings
On this display you can change default settings for TMJ exposures and specify the tooth
identification system used for tomo exposures.
NOTE The settings can be changed in SCARA3 units only.
2.6.1 TMJ
Touch the TMJ field to change the TMJ default angle. Adjust the angle (lat or PA) with the left
and right arrows.
In double TMJ exposures the target position will be automatically moved forwards by 10 mm
for the second exposure (open view projection). The setting can be changed by the user. On
the TMJ display, touch the bottom arrows to select a shorter or longer movement step.
Confirm your selection by touching Done and reboot the X-ray unit to save the new default
settings for TMJ exposures.
Figure 14

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
