Chapter H - CEPHALOSTAT
Planmeca ProMax H-7
ADJUSTMENTS AND CALIBRATIONS
Technical manual
1.5 Adjusting the sensor head connector and sensor head
positions
Connector adjustment
The sensor head connector must be perpendicular to the head support in both directions
(sideways and in depth). Check the connector position in depth by using the spirit level as
shown in Fig. 11 below.

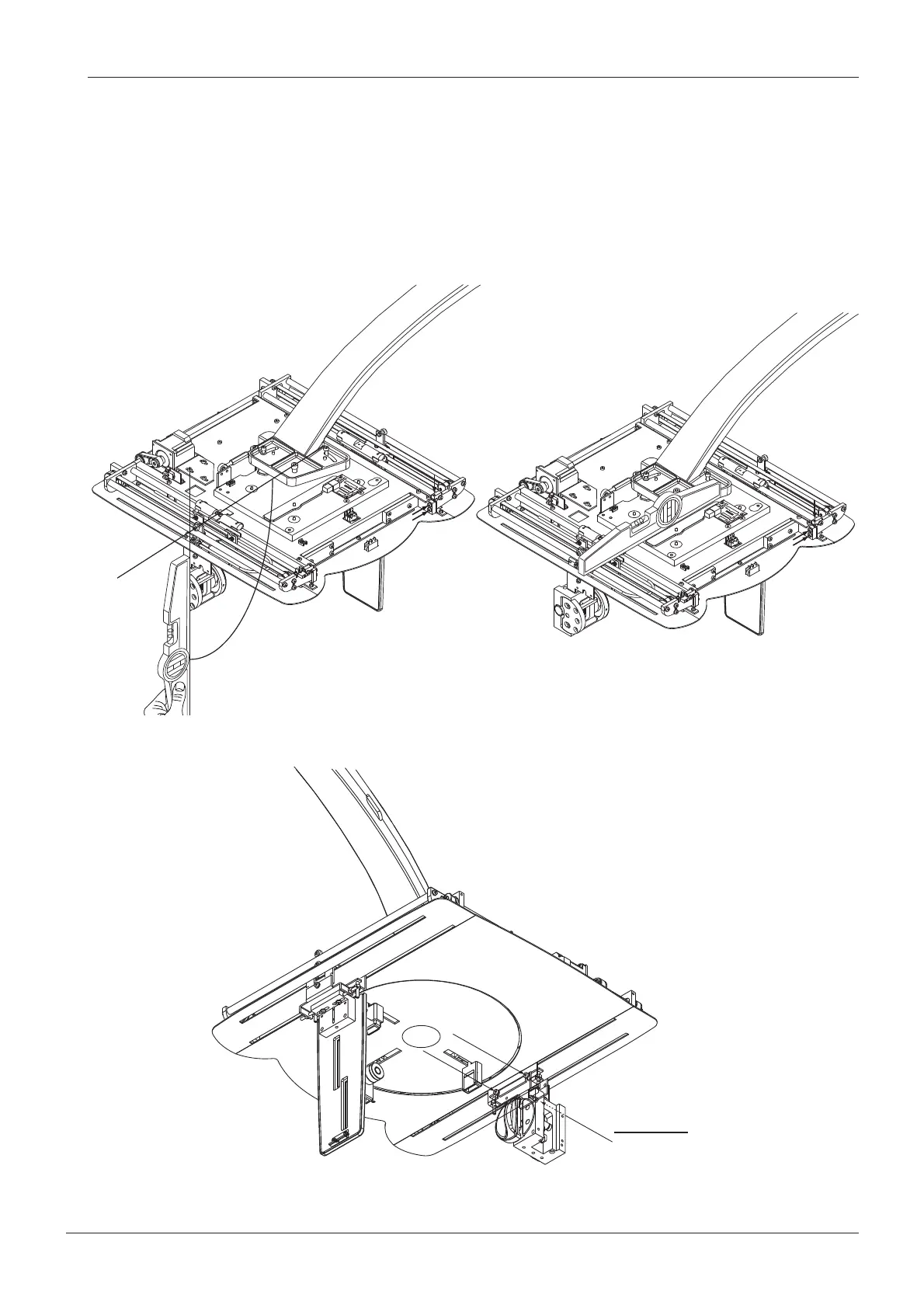

Figure 11
Loosen the three attachment screws of the connector.
Figure 12
PXR_Adj_digiceph5.eps
90°
PXR_Adj_digiceph31.eps
Loosen the three
attachment screws.
