Planmeca ProMax Technical Manual

Chapter B - INFORMATION DISPLAYS
B-28 Planmeca ProMax
SERVICE SETTINGS
Technical Manual

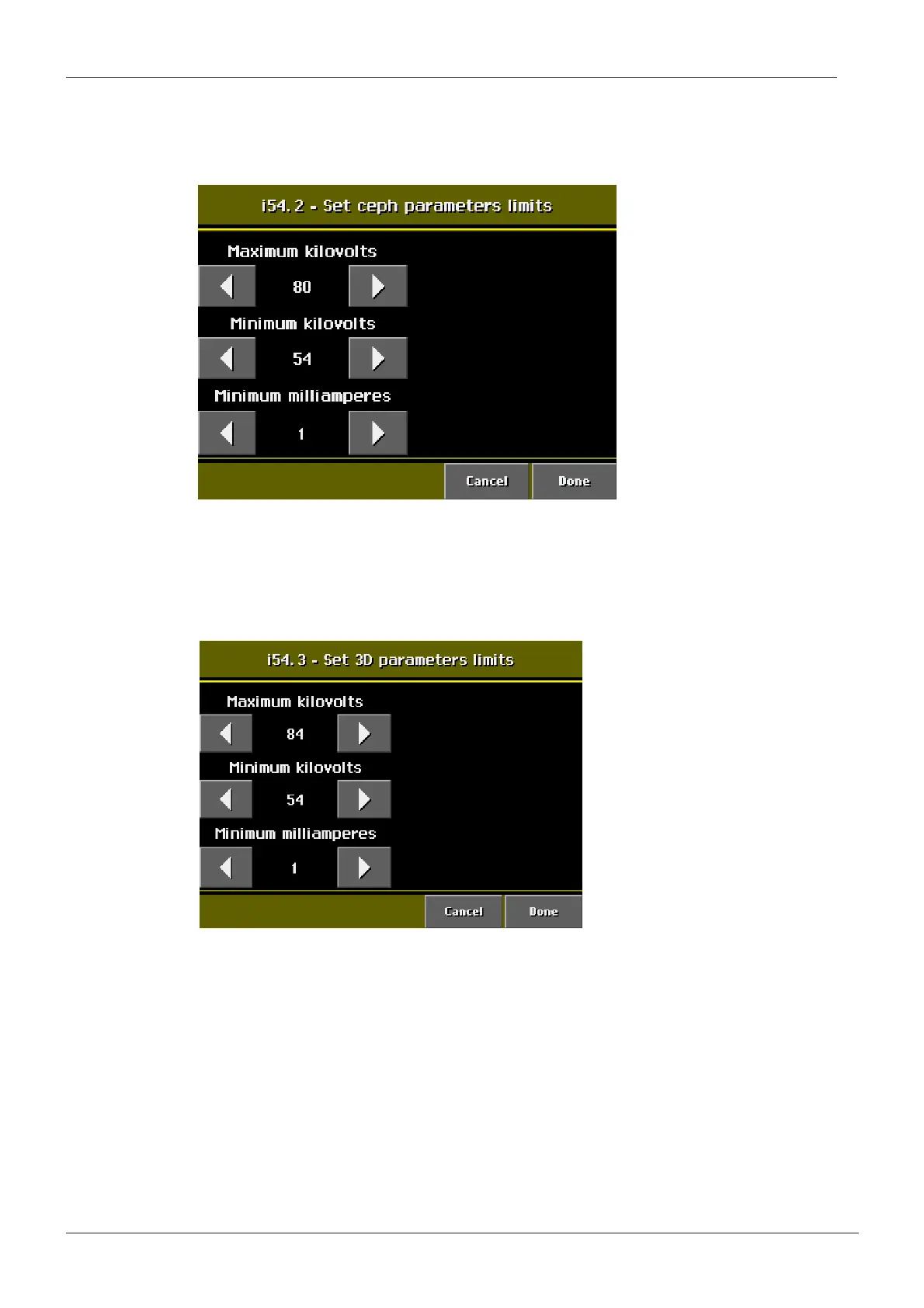

To set the cephalometric exposure values select Set ceph parameters limits (i54.2). The
display shown below appears. Select the maximum and minimum kilovolt, and minimum
milliampere values with the arrow fields and touch the Done field.
Figure 41
To set the 3D exposure values select Set 3D parameters limits (i54.3). The display shown
below appears. Select the maximum and minimum kilovolt, and minimum milliampere
values with the arrow fields and touch the Done field.
Figure 42
5.5 Factory default settings
The Factory default settings (i550) will turn up only in case the memory card (RTC) has lost
its configuration and user settings or it has been replaced to a new PCB. In this case the
procedure should be done before using the X-ray unit.

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
