Chapter E - C-ARM AND IMAGING ARM
E-86 Planmeca ProMax
REPLACING THE SENSOR HEAD
Technical Manual
6 REPLACING THE SENSOR HEAD
6.1 Attaching and removing the fixed sensor head
NOTE If the unit is equipped with movable sensor head, attach and remove the sensor head to
the connector according to the instructions given in section 6.2 “Sensor head with
quick connector mechanism” on page E-90.
Remove the sensor head holder covers according to the instructions given in section 5.2
“Removing the fixed sensor head holder covers” on page E-78.
Unscrew the sensor head locking screws from the attachment pins with 3mm Allen key.
Remove the screws and washers.

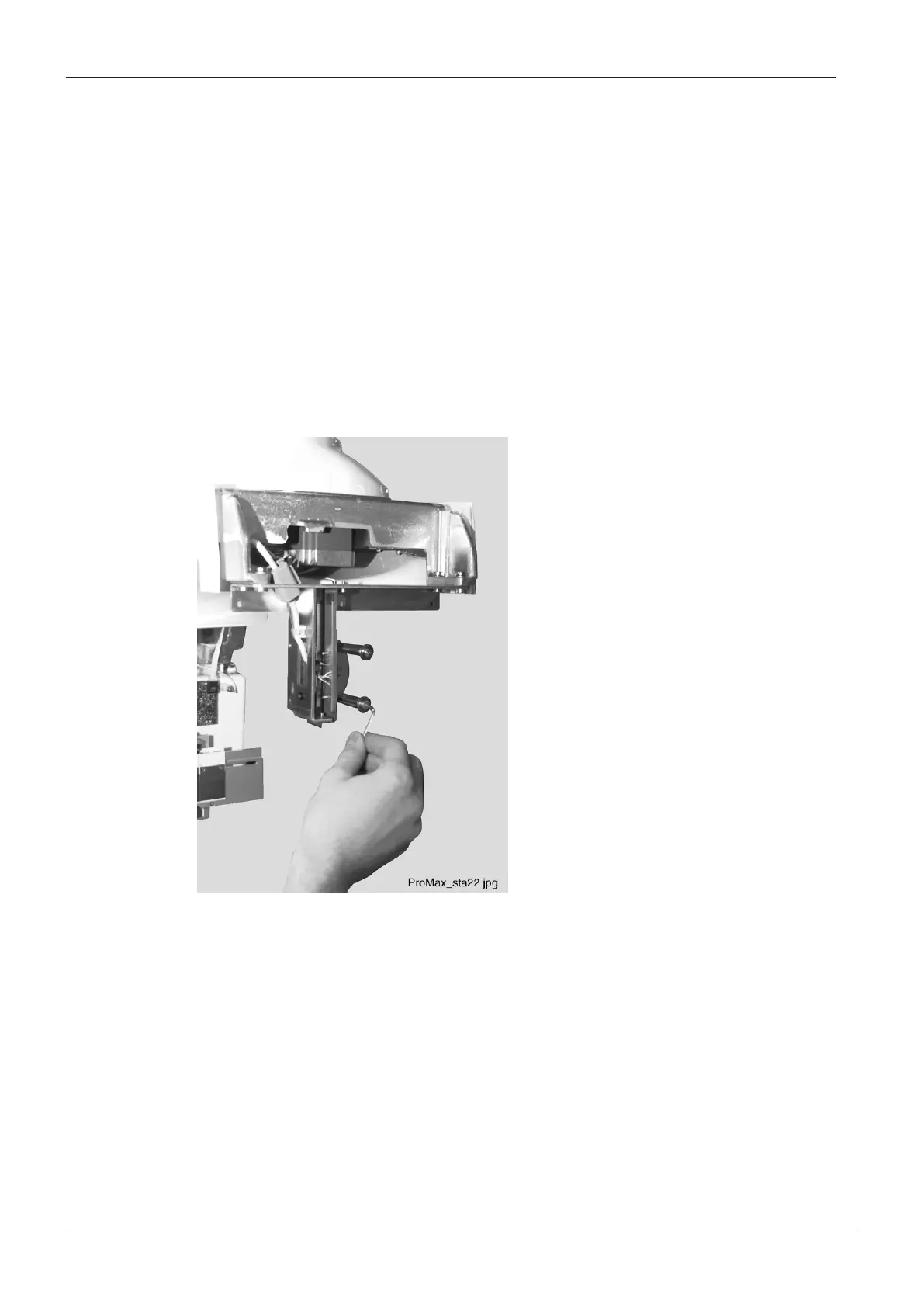

Figure 112
NOTE When checking the alignment, the sensor alignment tool can now be attached to the
connector pins.
