Chapter I - PLANMECA PROCEPH
I-18 ProMax X-ray unit
REMOVING THE HOUSINGS AND COVERS
Technical manual
2 REMOVING THE HOUSINGS AND COVERS
2.1 Removing the housings of the head support
The screws of cephalostat housings can be reached through the ear post holder attachment
opening on the rotatable head support cover. The back housing is attached with one M5x10
DIN 7984 screw (1), and the large front housing is attached to the head support with four
M5x10 DIN 7984 screws (2 - 5). Note that you have to rotate the rotatable head support to dif-
ferent positions to reach all the attachment screws.

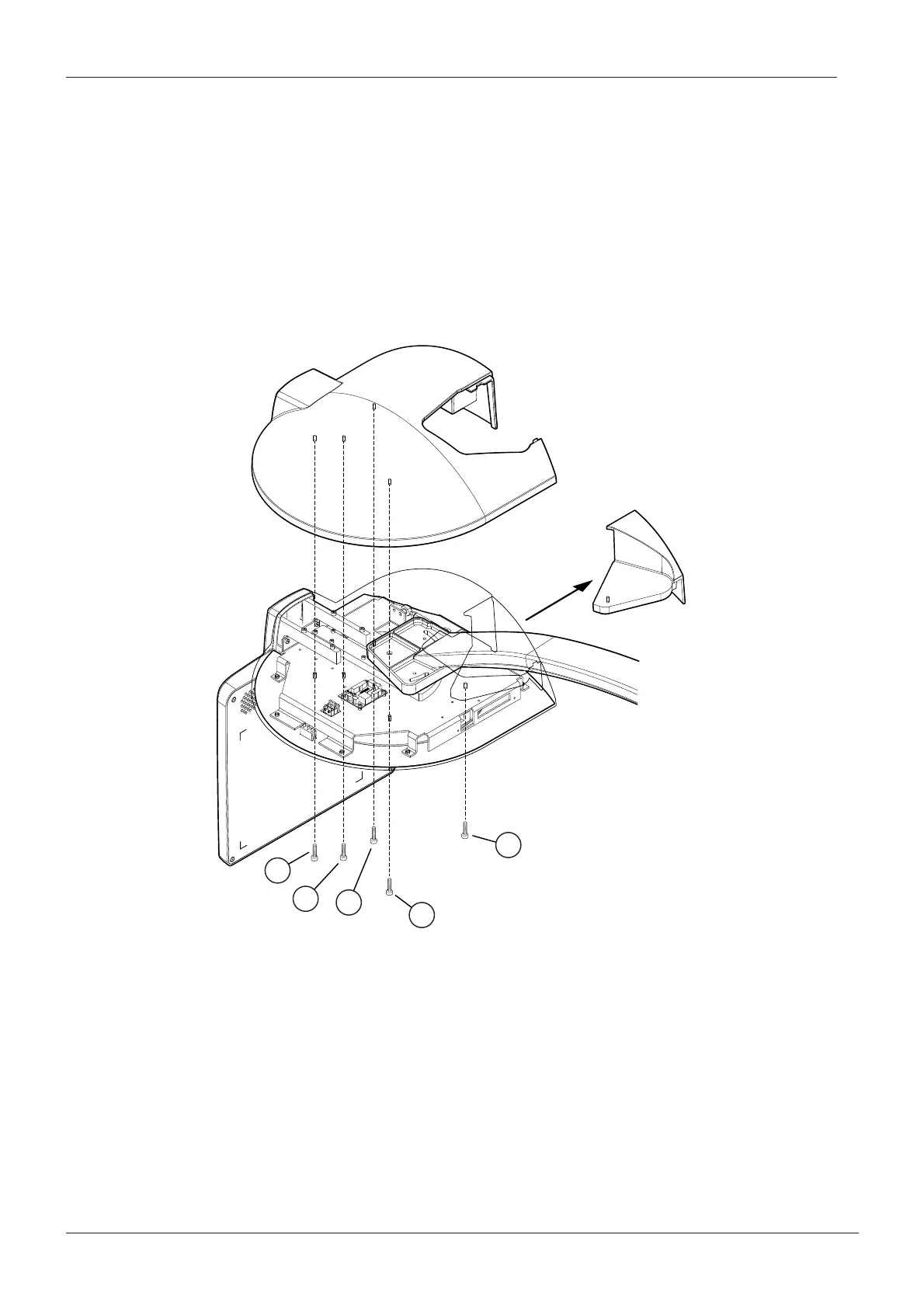

Figure 25
3
5
4
2
1
